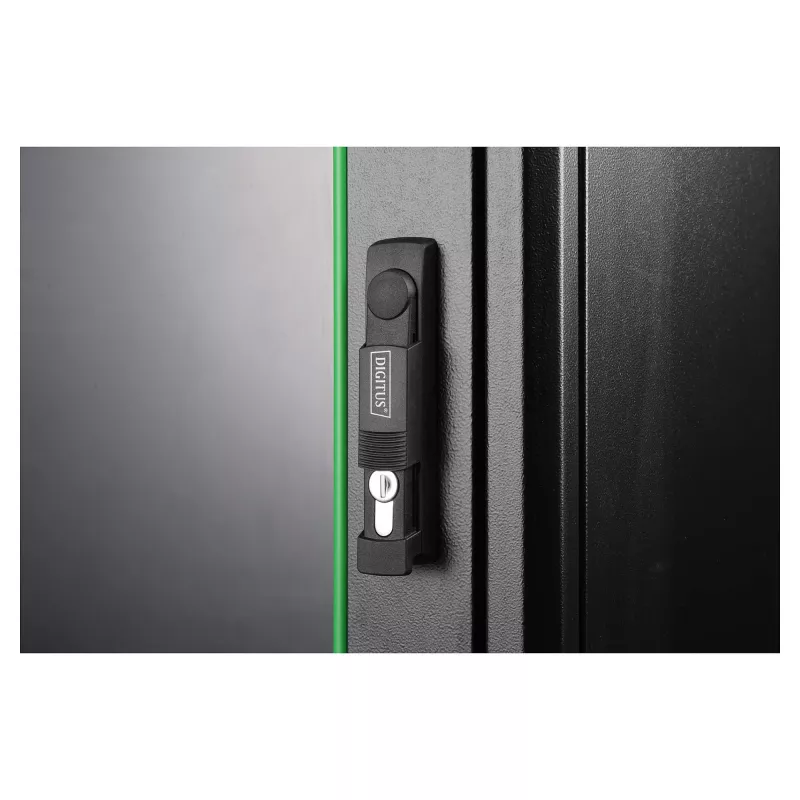

Network cabinet DIGITUS Unique Light series 42U 800×1000 mm (WxD) freestanding, 800 kg, IP20, key lock

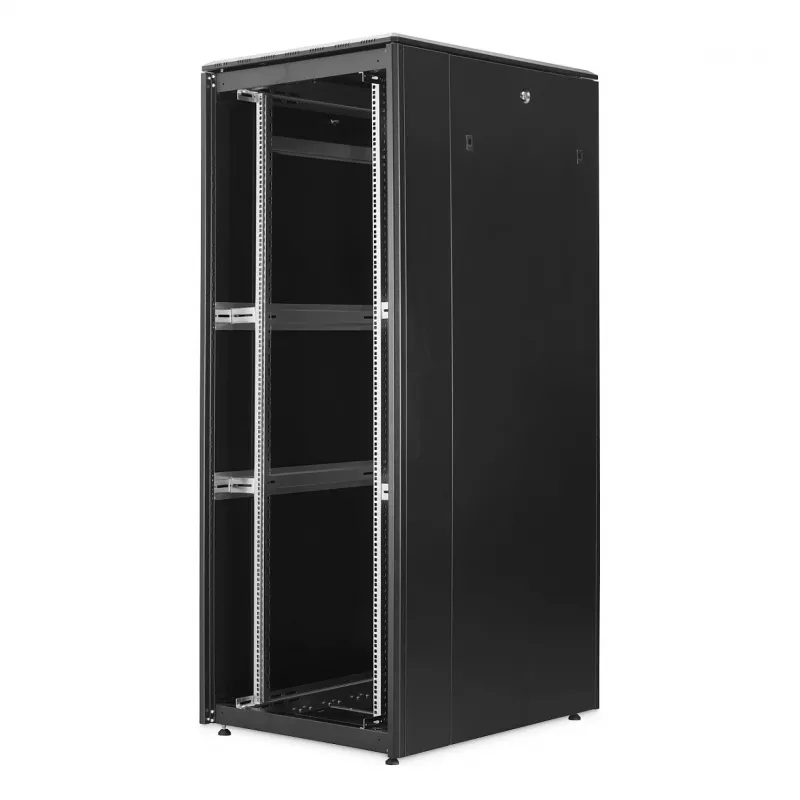

The DIGITUS Unique Light series 42U freestanding network cabinet (800×1000 mm) is a steel server rack designed for modern IT installations. It provides 19" mounting, an installation depth suitable for a wide range of components, and integrated cable routing options. The enclosure is delivered assembled and can be fully dismantled if required.

Advantages

The cabinet combines robust construction with flexible cable management: galvanized, adjustable 19" profile rails rated for up to 800 kg load, modular removable panels and doors, and generous cable inlets with brush strips in the roof and base. A prepared roof for fan units, earthing points, and electrostatic powder-coated steel finish ensure a reliable, service-friendly rack for server rooms and network closets.

Suitable for

• Server rooms and data closets
• Network installations and switches
• Patch panels and cable distribution
• Mounting heavy servers and storage equipment (up to 800 kg on rails)

Key specifications

• Rack capacity: 42U
• External dimensions (WxD): 800 × 1000 mm
• Installation height: approximately 2053 mm
• Installation depth for components: 688–943 mm
• Load capacity of 19" profile rails: up to 800 kg
• Protection class: IP20
• Material: sheet steel (up to 1.5 mm); electrostatic powder coating

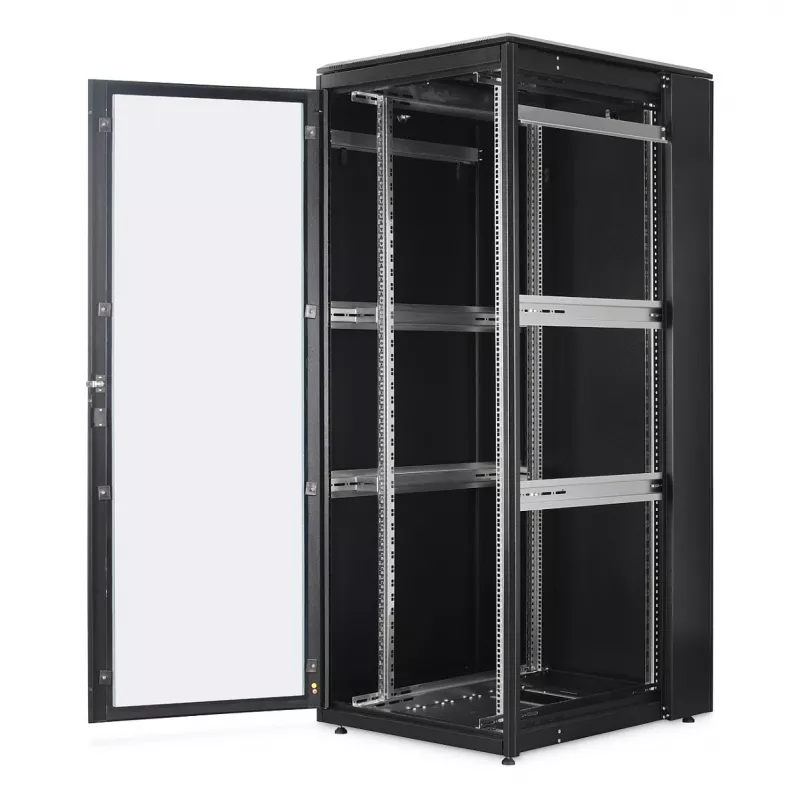

• Front door: steel frame with certified safety glass

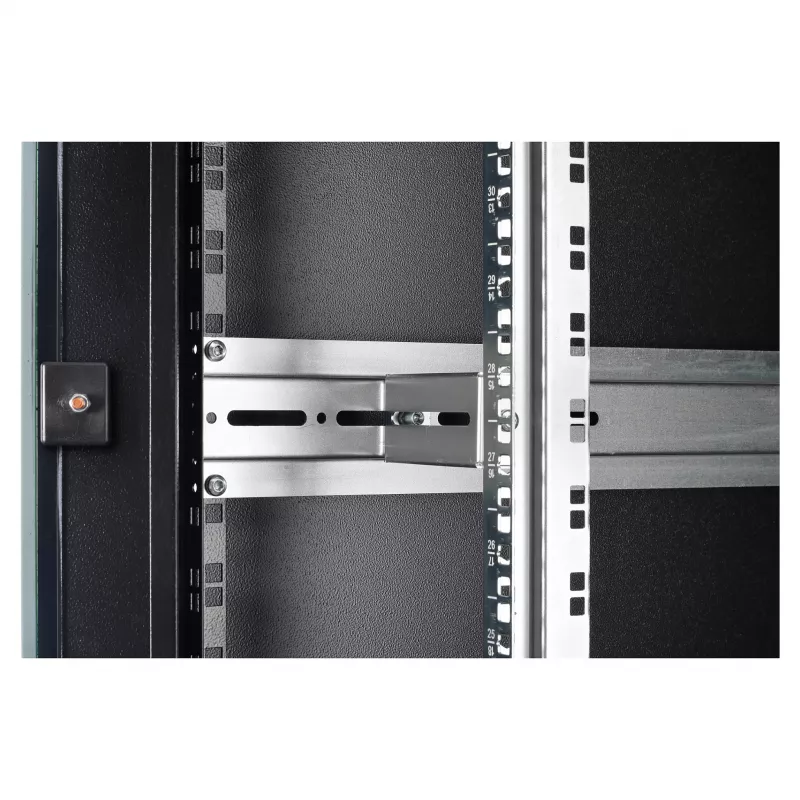

• Adjustable, galvanized 19" profile rails, numbered in opposite directions

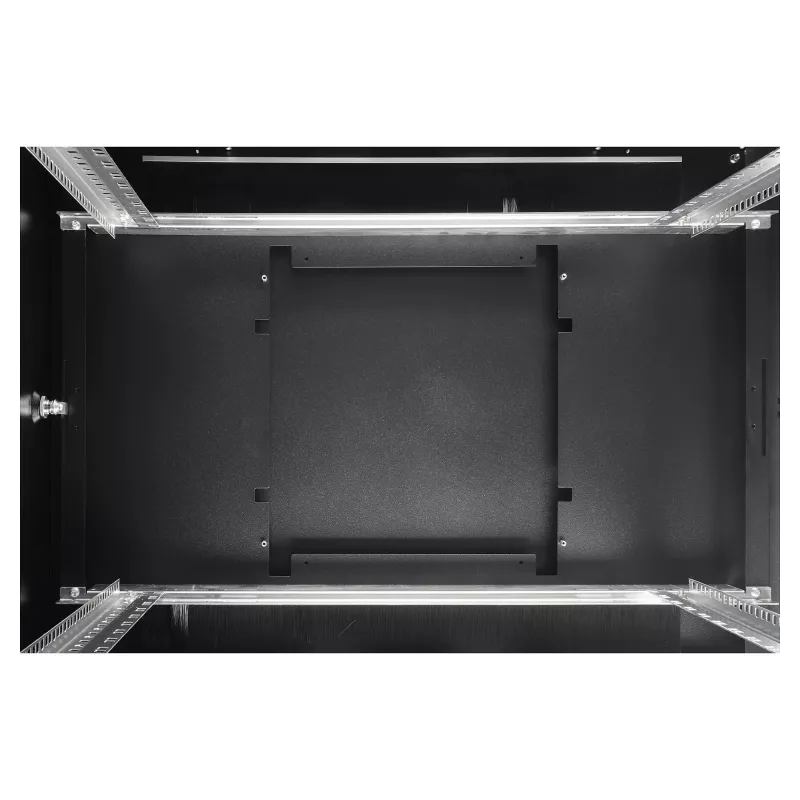

• Modular openable base chassis with removable 19" blanking panels

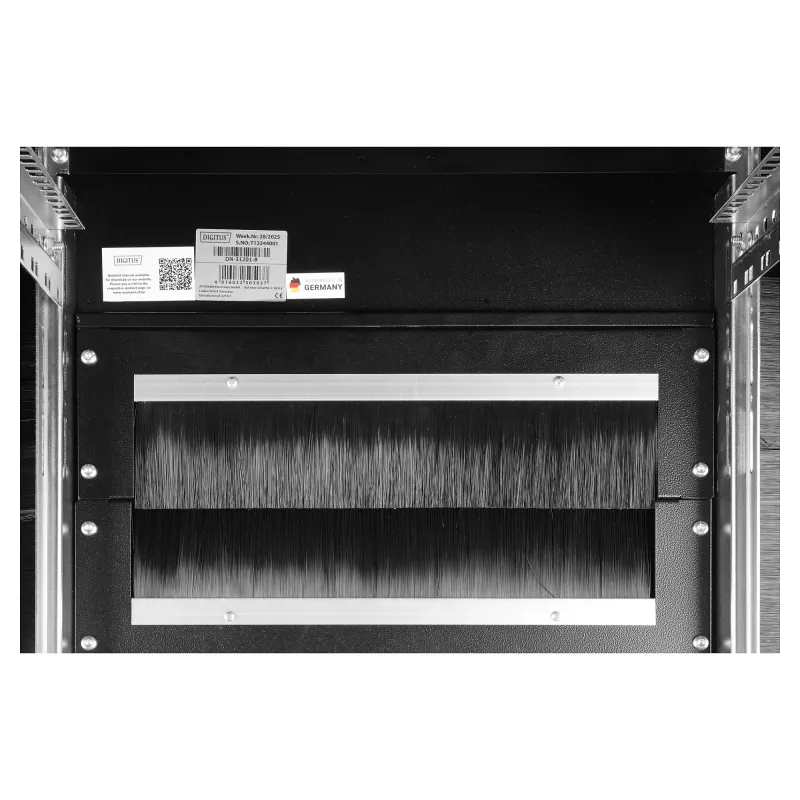

• Cable inlets: base rear and side, roof side with brush strips

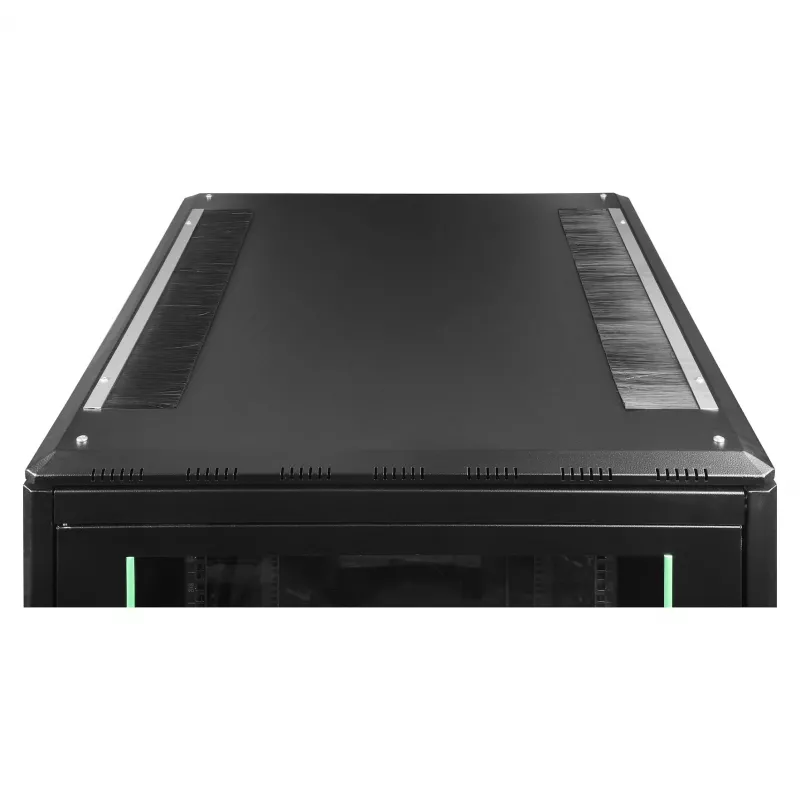

• Roof prepared for fan unit and removable cover

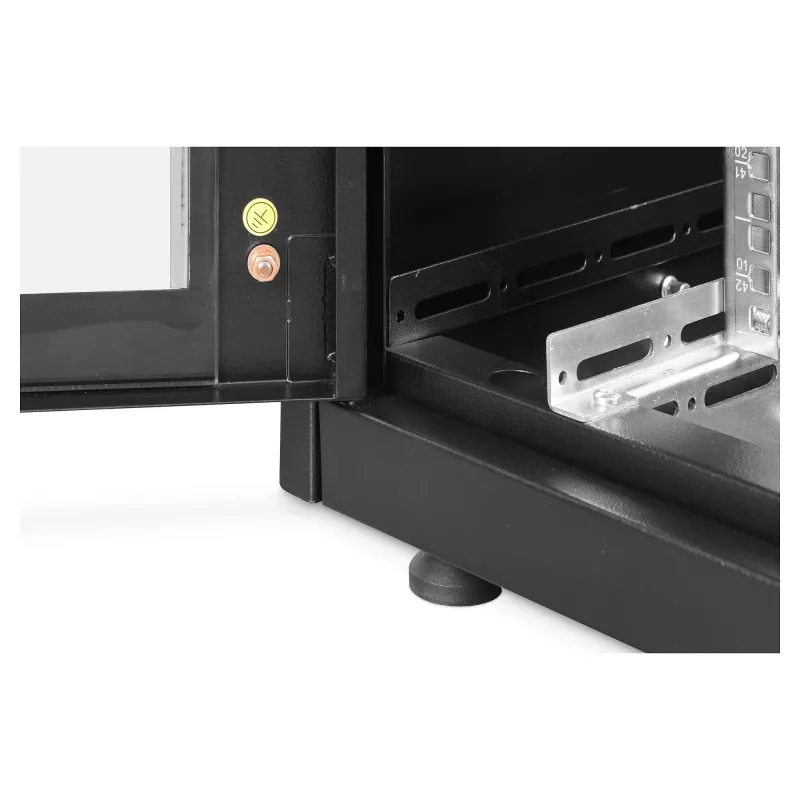

• Includes levelling feet
• Colour: black

How to use

Place the freestanding cabinet on a level surface and adjust the enclosed levelling feet. Mount devices on the adjustable 19" profile rails, setting the rails to the required depth within the specified installation depth range. Route network and power cables through the roof and base inlets with brush strips to maintain order and to avoid interference. Connect earthing points where required. If required for transport or site access, the cabinet can be dismantled into its modular components and reassembled on site.

Recommendations

Distribute weight evenly across the 19" rails and fix heavier equipment at lower rack units to maintain stability. Use the provided cable inlets and brush strips for structured cabling and consider adding the prepared roof fan unit for improved ventilation when populating the rack with heat-generating equipment.
