Neomounts heavy duty tv wall mount 125 kg 43-98 inch VESA 100x100-800x600

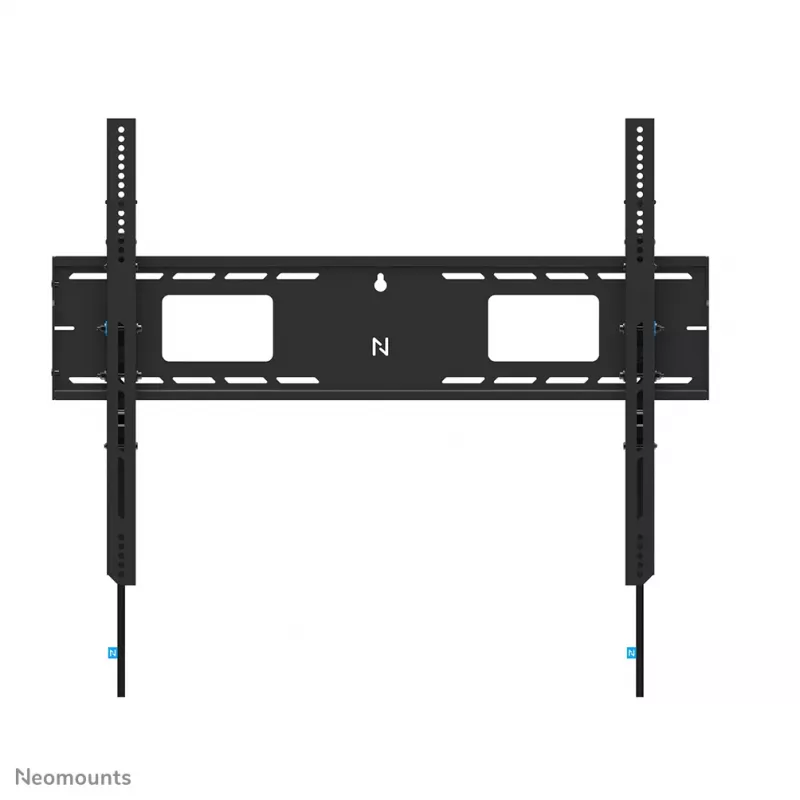

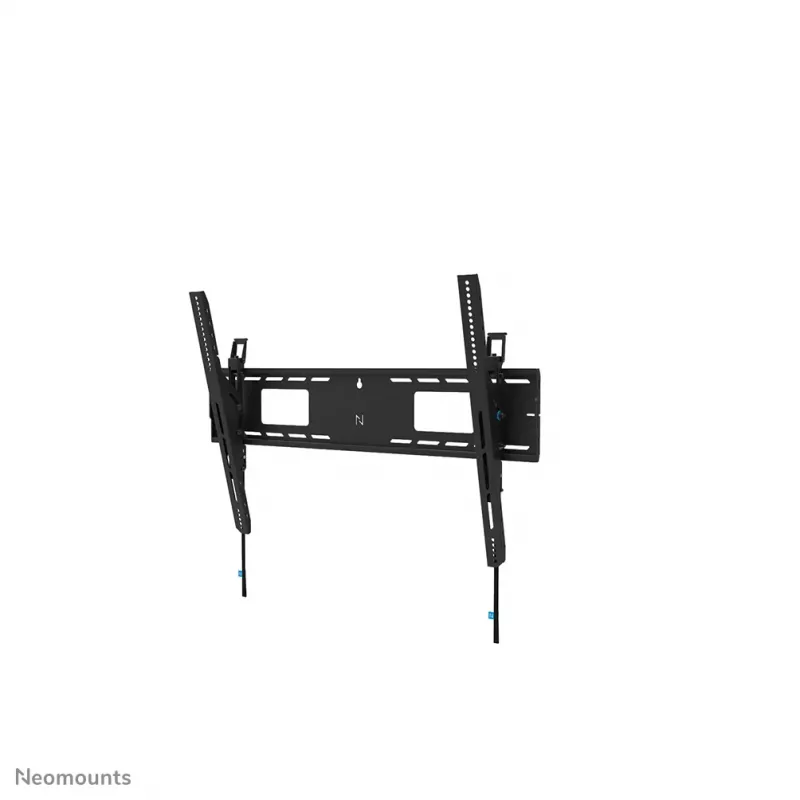

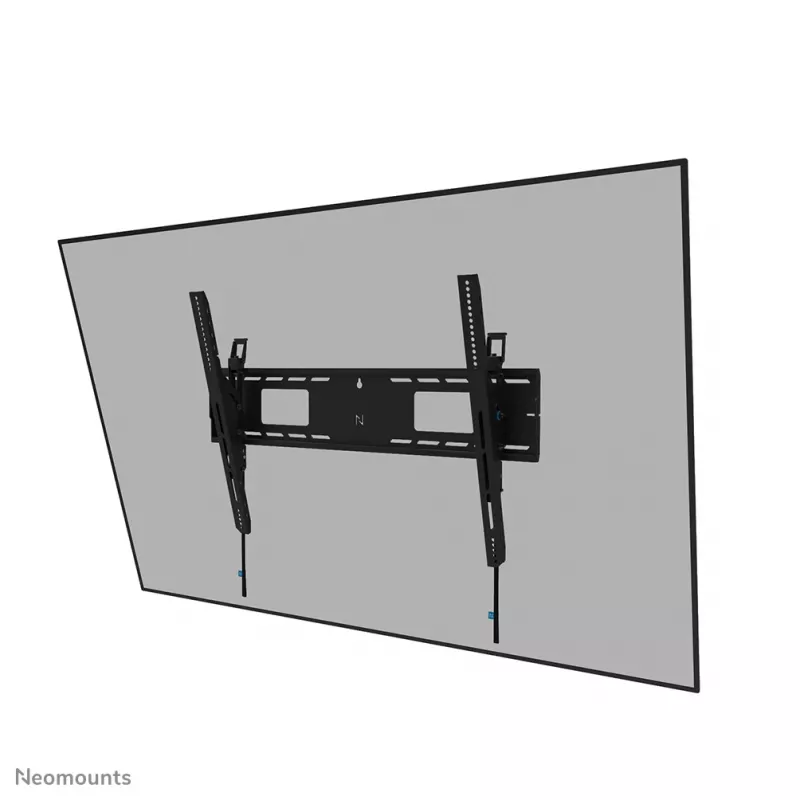

The Neomounts WL35-750BL18 LEVEL is a heavy-duty tiltable wall mount designed for securely installing interactive or large displays from 43" to 98" with a maximum load of 125 kg. It supports VESA patterns from 100x100 mm up to 800x600 mm and provides a low-profile solution (9.3 cm) with individual adjustable brackets for fine height and leveling adjustments.

Advantages

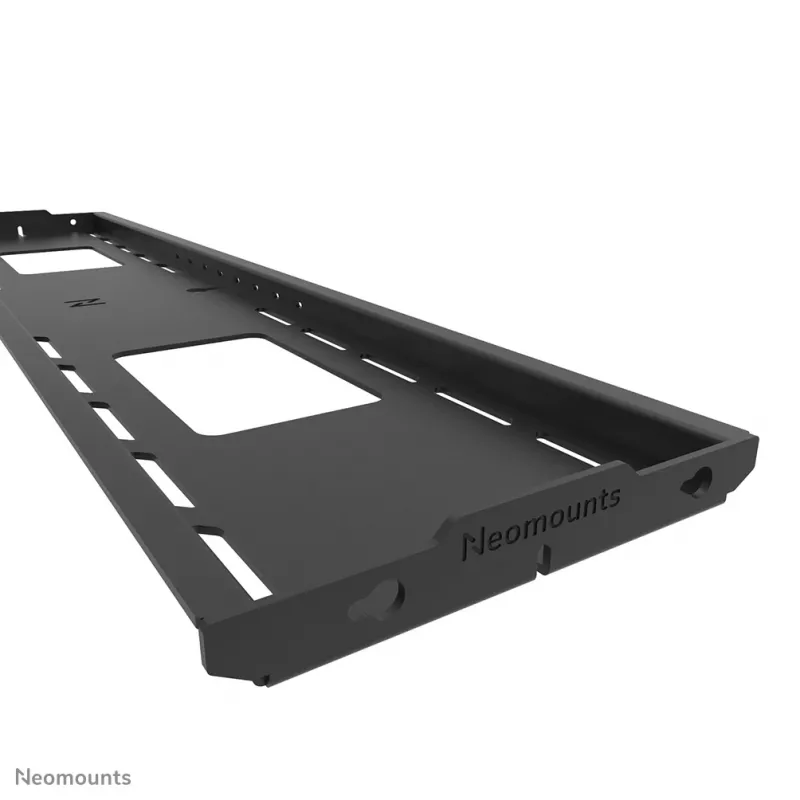

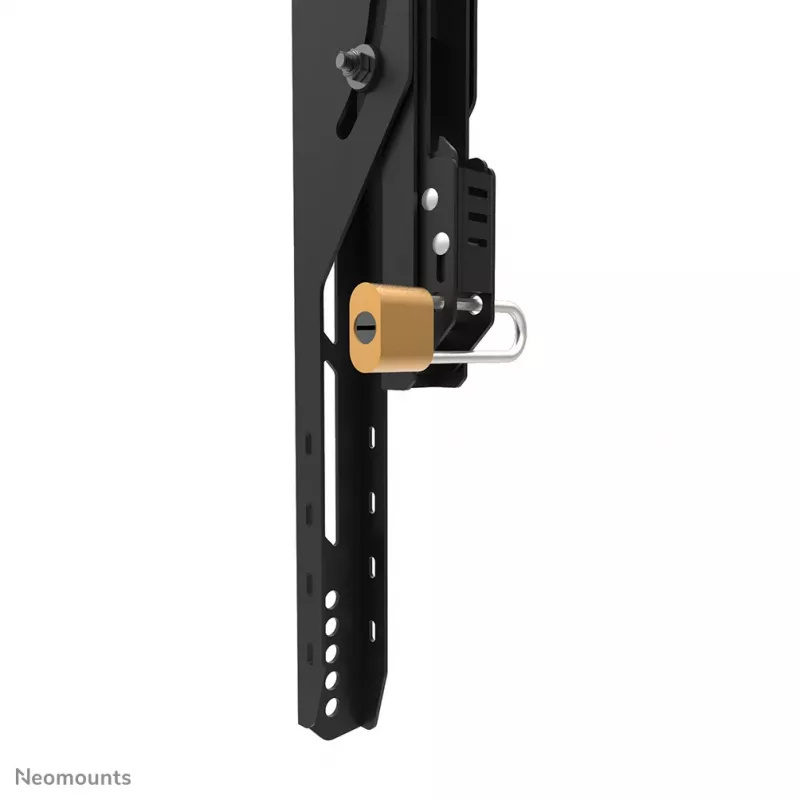

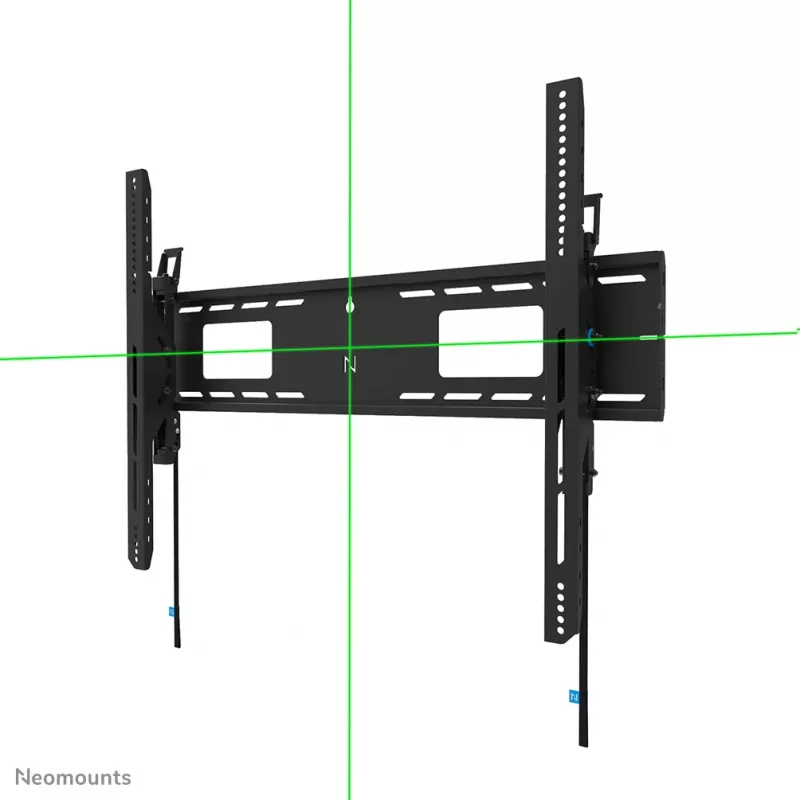

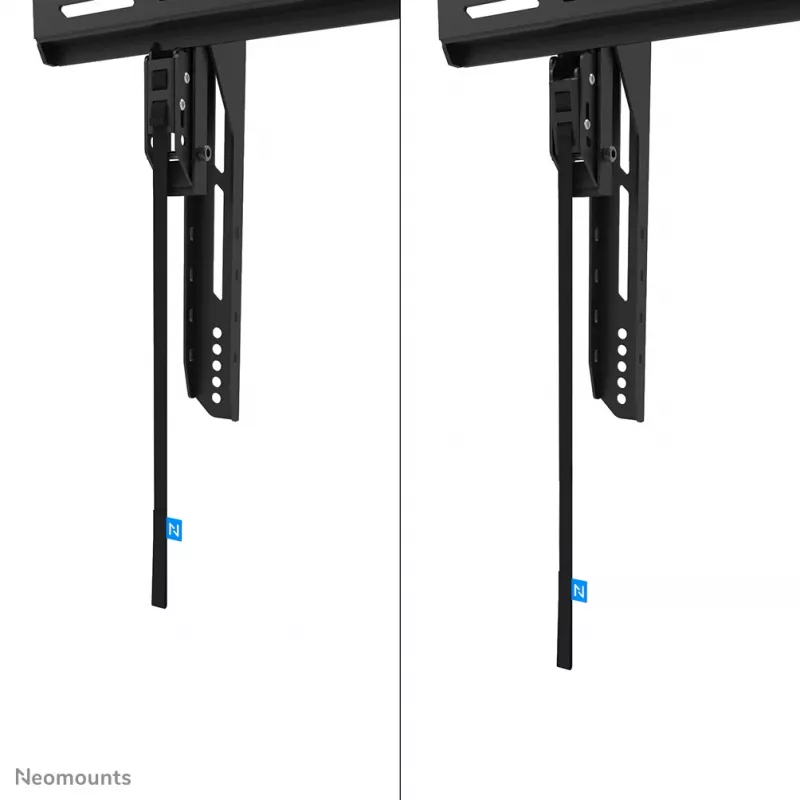

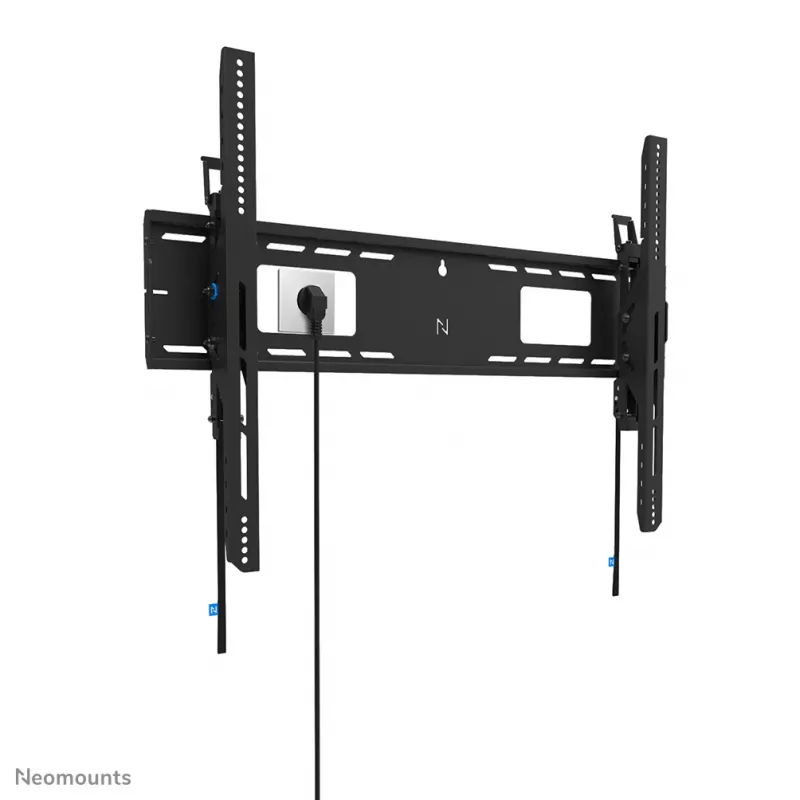

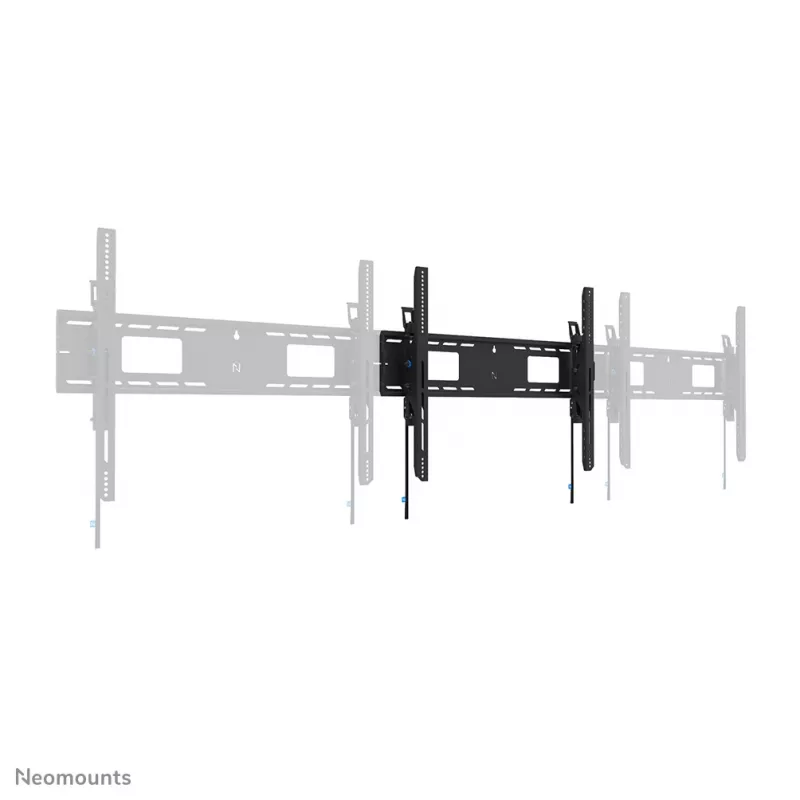

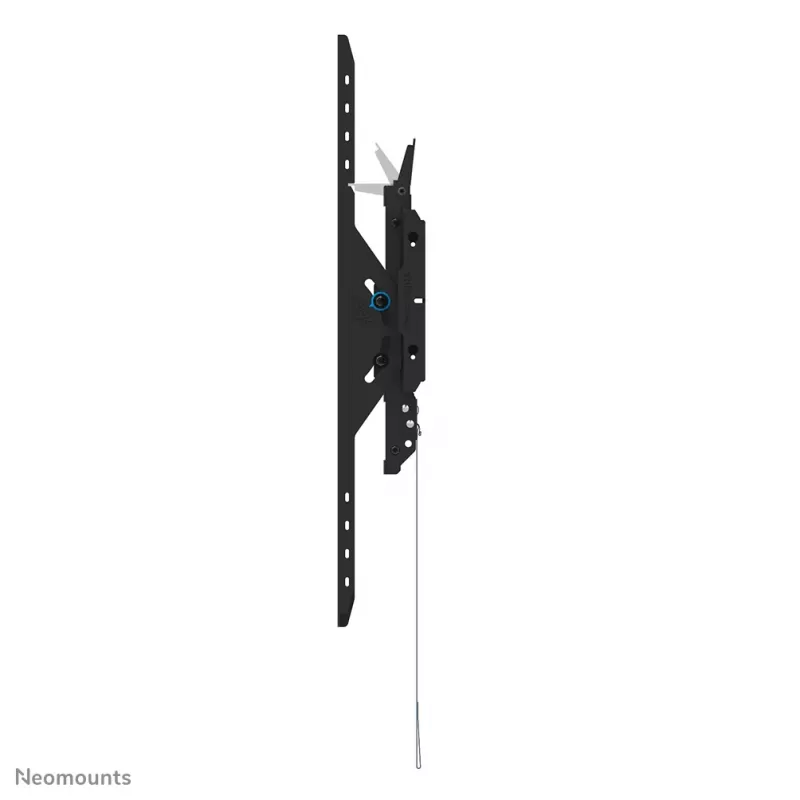

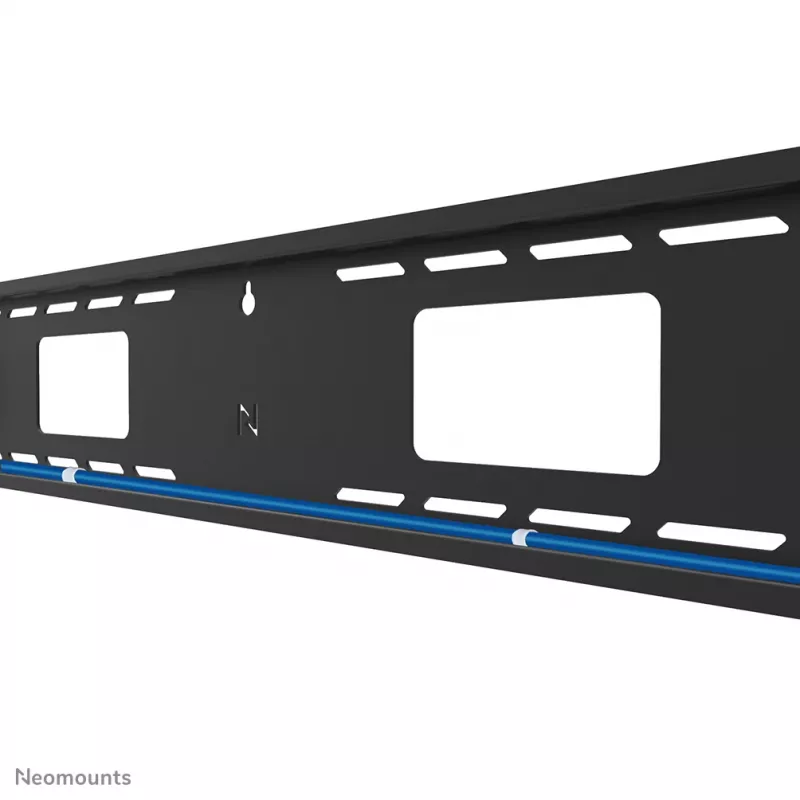

This mount offers toolless tilt adjustment of +15° to -15° for quick optimisation of viewing angles and a robust high-profile wall plate engineered for stability and precision, even on uneven surfaces. The quickly connectable wall plate supports multiple screen installations and includes cut-outs for wall sockets and securing devices. Perforations and cable storage space allow tidy cable routing while the pull & release system enables safe and fast attachment and detachment of the display. A tilt-lock prevents upward movement during installation, and the bracket can be secured with a padlock (not included) for added safety.

Suitable for

• Mounting interactive touchscreens and heavy commercial displays

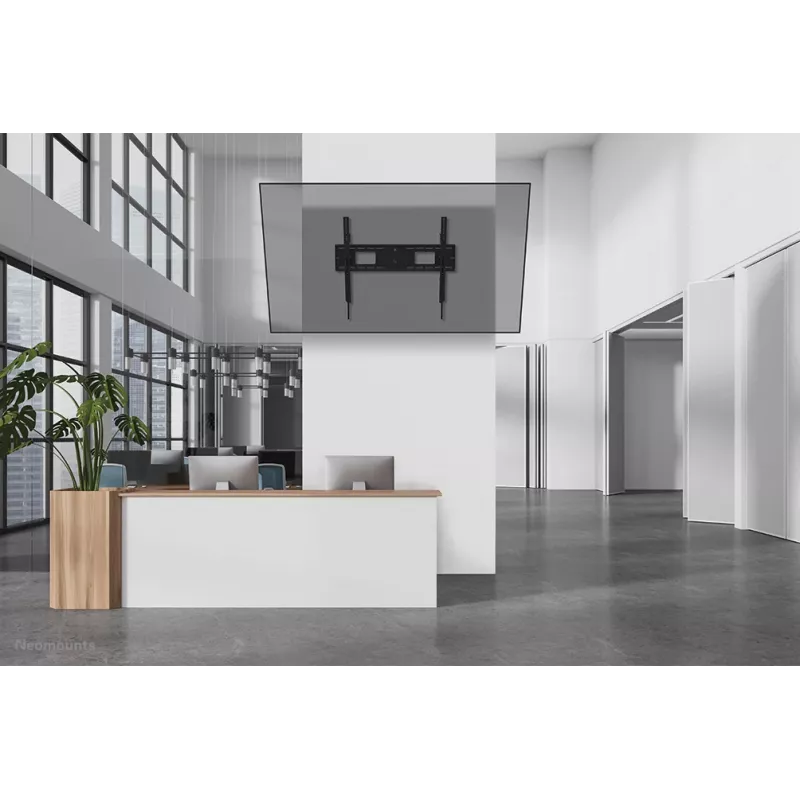

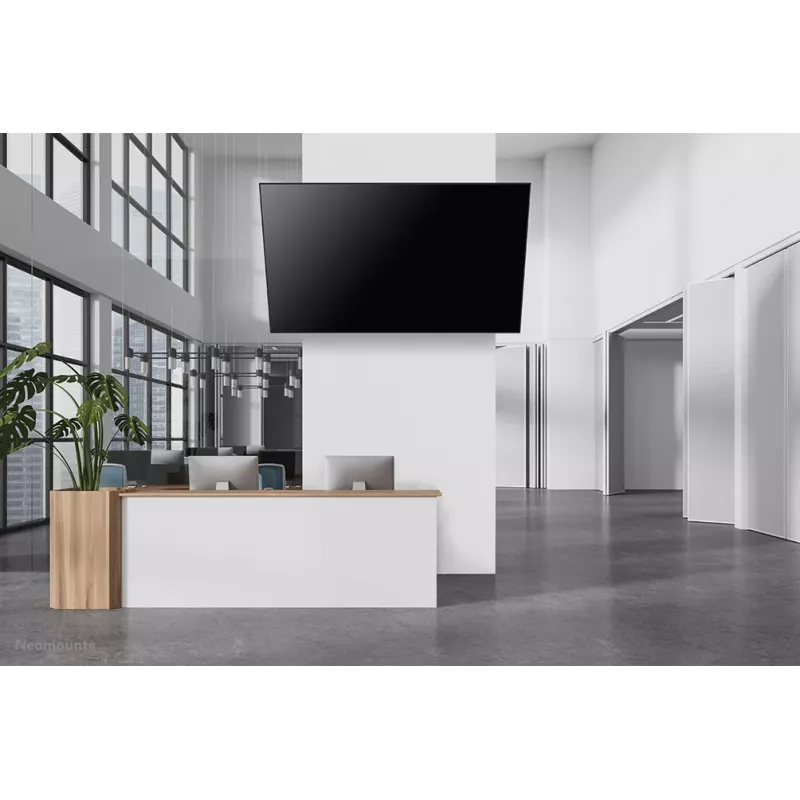

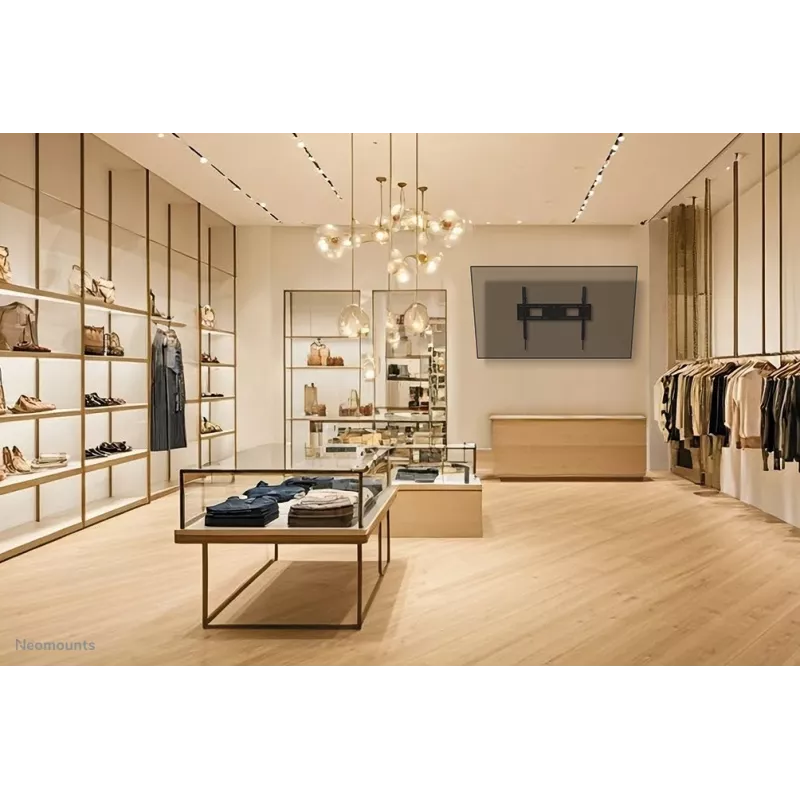

• Digital signage in public spaces and retail
• Conference rooms, classrooms and presentation areas
• Environments requiring frequent attachment/detachment or secure locking

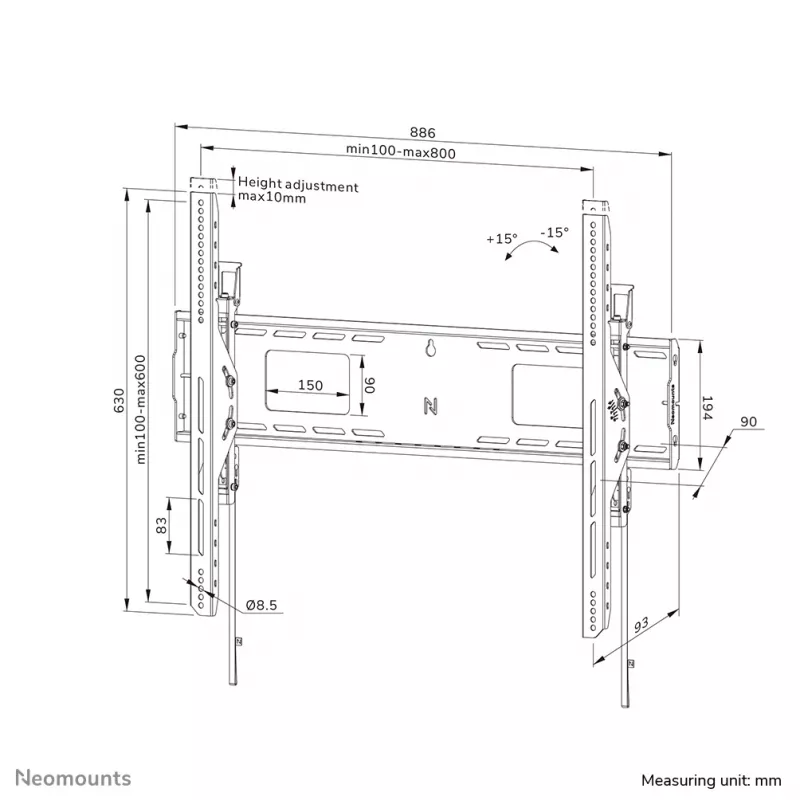

Key specifications

• Maximum screen size: 43"–98"
• Maximum load capacity: 125 kg
• VESA compatibility: 100x100 to 800x600 mm

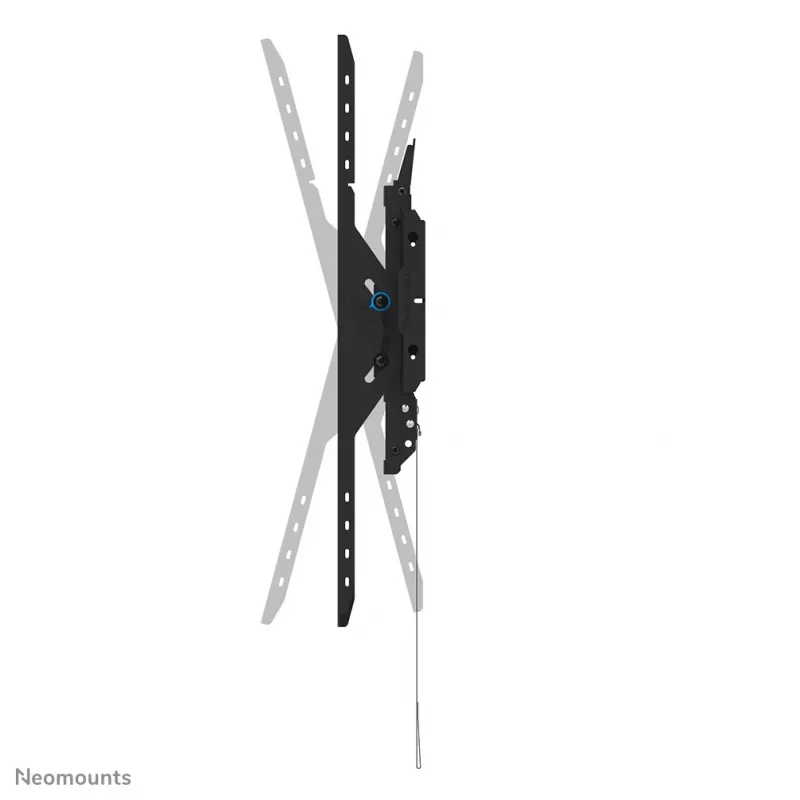

• Tilt range: +15° / -15° (toolless adjustment)

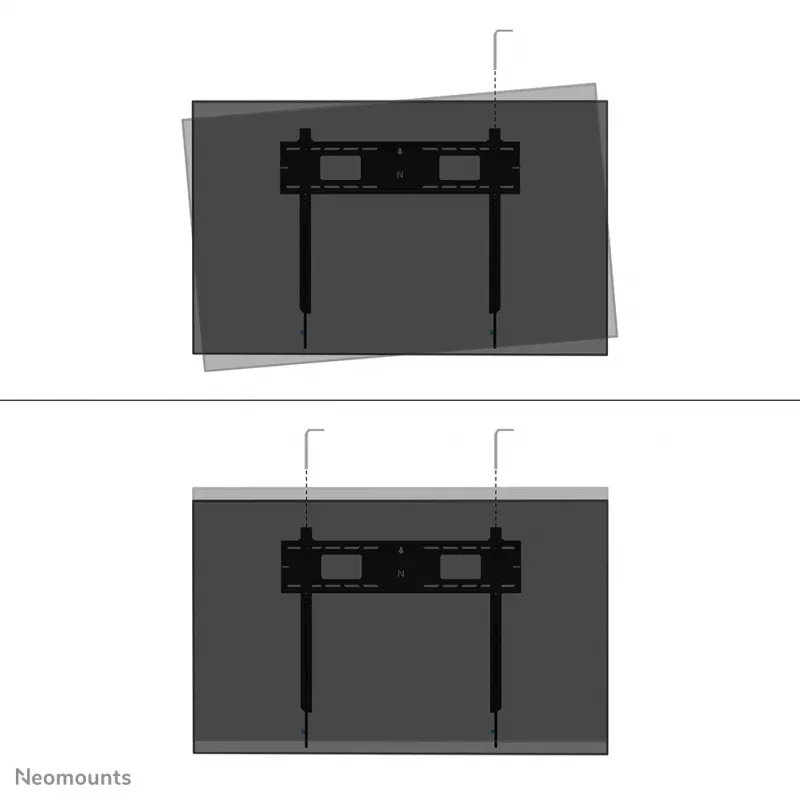

• Height/levelling adjustment: up to 10 mm (individual brackets)
• Distance to wall (profile): 9.3 cm
• Mount model: Neomounts WL35-750BL18 (MPN WL35-750BL18, EAN 8717371443375)

How to use

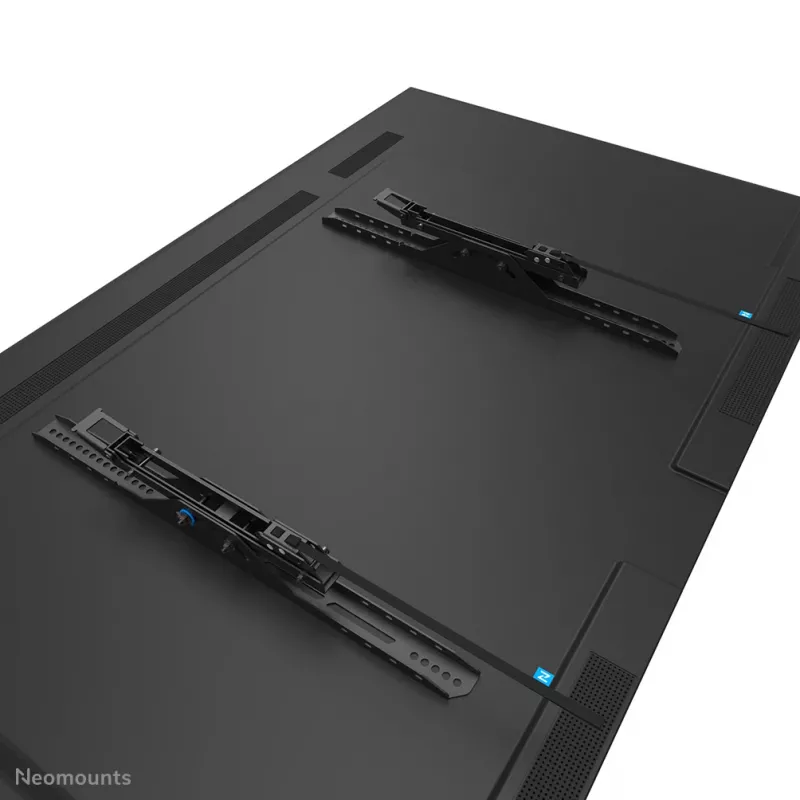

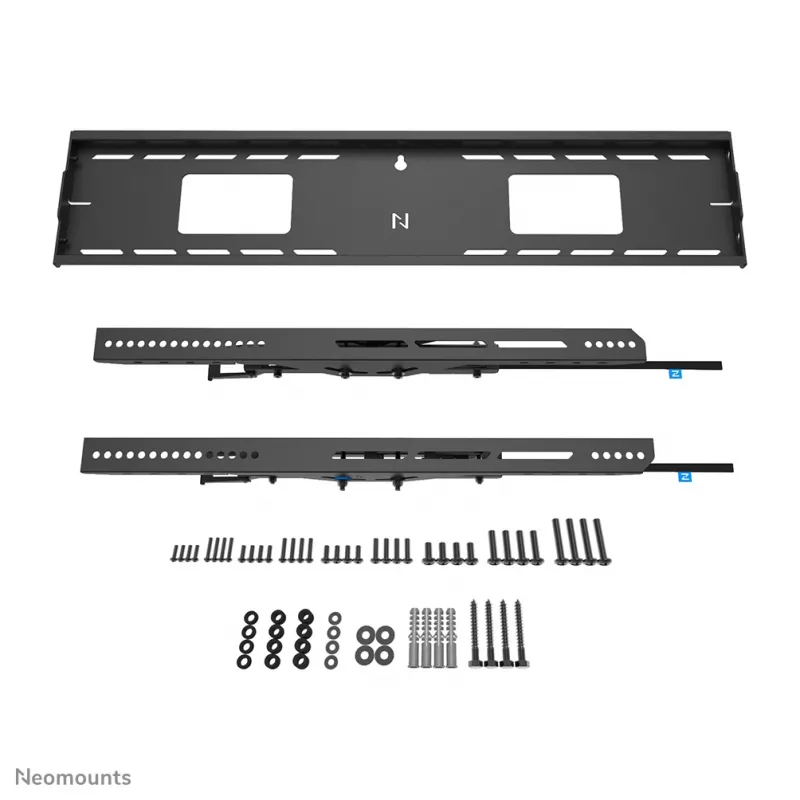

Attach the high-profile wall plate to a suitable load-bearing wall according to the enclosed mounting instructions and local building regulations. Hang the display on the mount using the supplied brackets, then use the individual adjustable brackets to level the screen within the 10 mm adjustment range. Adjust the tilt without tools to the desired +15° or -15° angle, then engage the tilt-lock to prevent upward movement while securing or removing the display. Use the pull & release system to attach or detach the display safely.

Recommendations

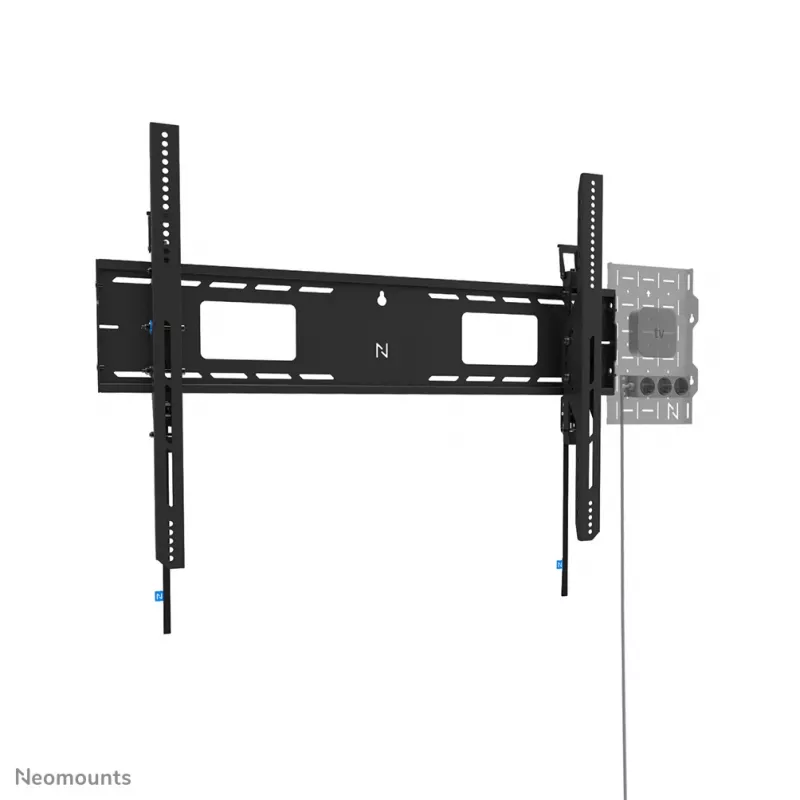

Installations should be performed by qualified personnel. Verify wall type and fixings are suitable for the combined weight of mount and display. Use a padlock (not included) if additional security is required. Consider adding the optional AV-rack to the left or right side for compact AV equipment storage.
