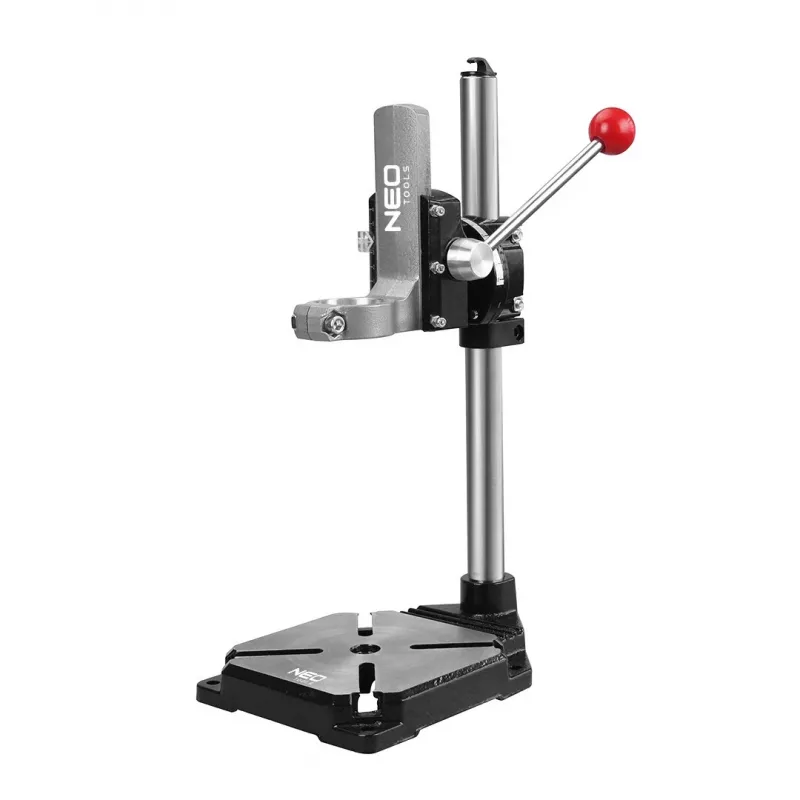

NEO TOOLS 56-655 Bench Drill Stand with 43 mm Collar, 60 mm Stroke, Cast Iron Base

Handheld drilling often leads to imprecise holes, especially when working with metal or wood. The NEO TOOLS 56-655 drill stand converts your electric drill into a stable bench drill press, giving you the control needed for accurate, repeatable drilling. Its robust cast iron base and steel column minimize vibration, while the 60 mm stroke and depth stop allow for consistent hole depths. Whether you're a DIY enthusiast or a professional, this stand enhances safety and precision in your workshop.

Who is it for

This drill stand is ideal for anyone who needs to drill straight, accurate holes without investing in a dedicated drill press. It is perfect for home workshops, garages, and light industrial use. If you already own a drill with a standard 43 mm Euro collar, this stand will fit it seamlessly. It's especially useful for repetitive tasks like drilling shelf pin holes, dowel joints, or metal fabrication where consistency is key.

Main features

• Compatible with drills featuring a 43 mm collar diameter (standard Euro size)
• 60 mm maximum drilling stroke for deep, controlled drilling
• Sturdy cast iron base (155 x 155 mm) with pre-drilled holes for benchtop mounting
• Steel column (25 mm diameter) ensures stability and reduces vibration
• Integrated depth stop for repeatable hole depths
• Scale on column for easy height adjustment
• Aluminum main body for lightweight durability
• Black and silver finish complements any workshop

Specifications

• Brand: NEO TOOLS
• Model: 56-655
• MPN: 56-655
• EAN: 5906692007981
• Drill collar diameter: 43 mm
• Max. drilling stroke: 60 mm
• Base material: Cast iron
• Column material: Steel
• Column diameter: 25 mm
• Total height: 400 mm
• Base dimensions: 155 x 155 mm
• Depth stop: Yes
• Integrated scale: Yes
• Application: For electric drills
• Mounting type: Benchtop
• Precision adjustment: Yes
• Compatibility: Drills with standard 43mm Euro collar
• Main body material: Aluminum
• Color: Black / Silver

Tips

To ensure maximum stability, securely bolt the base to your workbench using the pre-drilled holes. Adjust the depth stop before drilling repetitive holes to maintain consistent depth. Periodically check the column and moving parts for cleanliness and apply light machine oil to ensure smooth operation.
