Fixing set kwb PROFI drill press stand 500 mm height

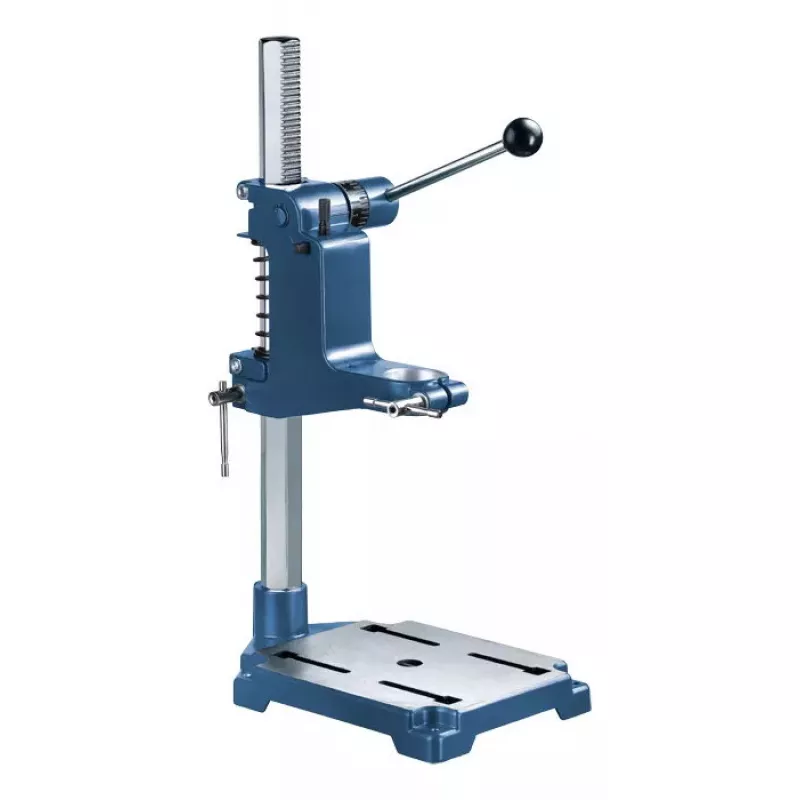

The kwb PROFI drill press stand 500 mm height is a mounting and guidance accessory for standard drills with a 43 mm Euro-collar. It provides a stable die-cast base and a guided hexagonal column to ensure precise drilling and milling in wood and metal profiles. The stand includes a return spring, adjustable depth stop with mm scale and a rotating column for flexible positioning; a separate machine vice (Part no. 777068, 80 mm) can be fastened to the base but is not included in the set.

Advantages

The die-cast base plate (175 x 210 mm) has fastening slots for a machine vice and offers solid support during operation. The 34 mm diameter hexagonal column rotates 360° for versatile positioning, and the 130 mm depth of feed together with the return spring and mm-scale depth stop enable controlled, repeatable drilling and milling. The 500 mm total height provides extended reach for larger workpieces.

Suitable for

Key specifications

How to use

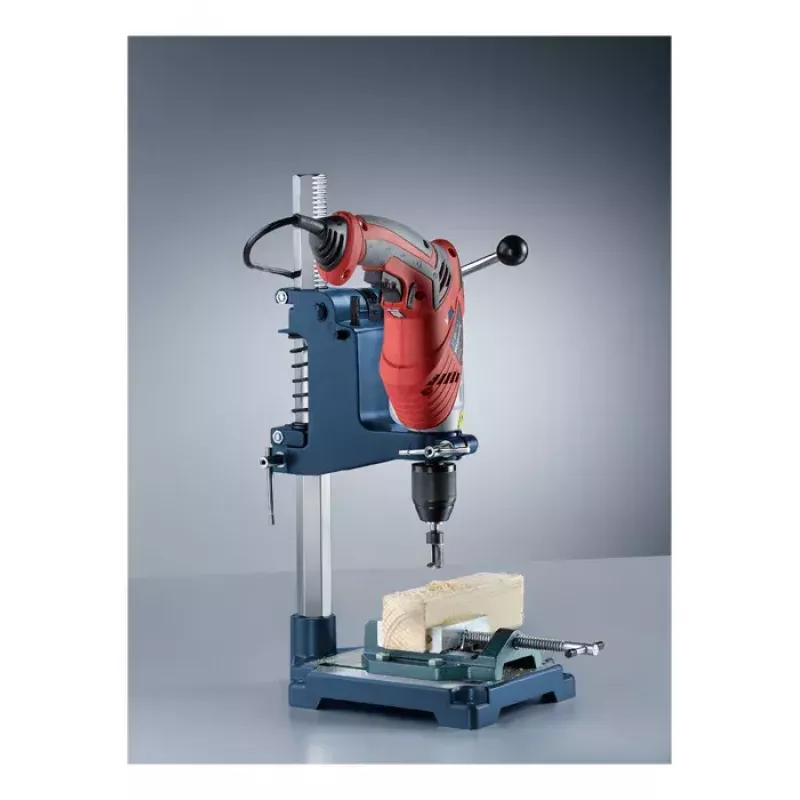

Mount a compatible drill with a 43 mm Euro-collar into the drill press holder and secure it according to the drill manufacturerʼs instructions. Place and fix the workpiece on the base plate or in a machine vice fastened to the base. Adjust the depth stop using the mm scale to set the required drilling depth, position the column as needed by rotating it up to 360°, and operate the drill using the feed stroke; the return spring will assist in returning the drill to the starting position.

Recommendations

Use appropriate personal protective equipment and secure the workpiece before drilling. Verify drill compatibility with the 43 mm Euro-collar and, if using a machine vice (Part no. 777068), fasten it to the base plate slots to improve clamping stability. Do not exceed the recommended feed and always follow the safety instructions provided by the drill manufacturer.
