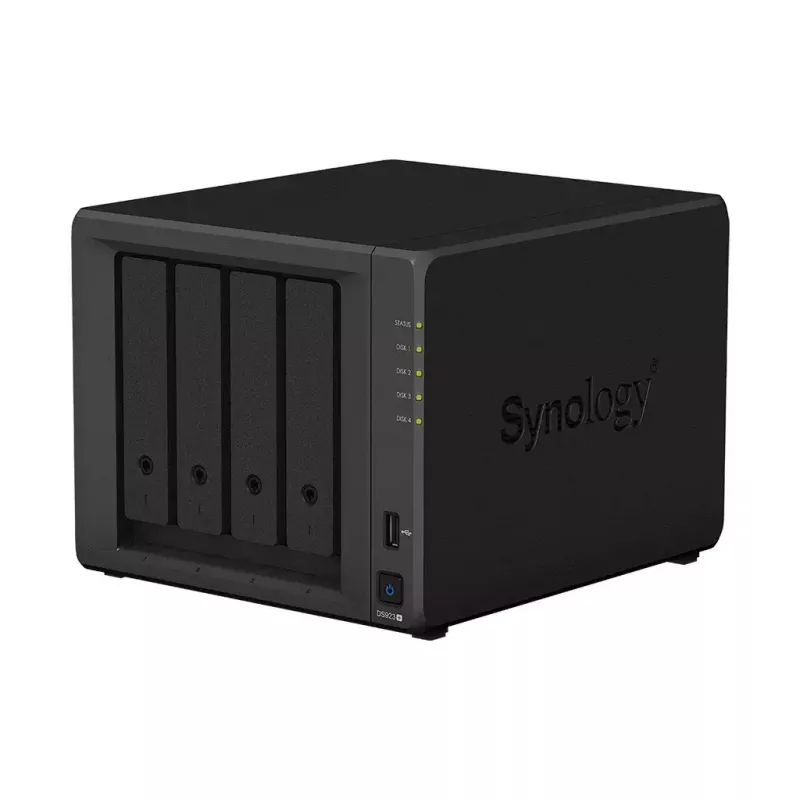

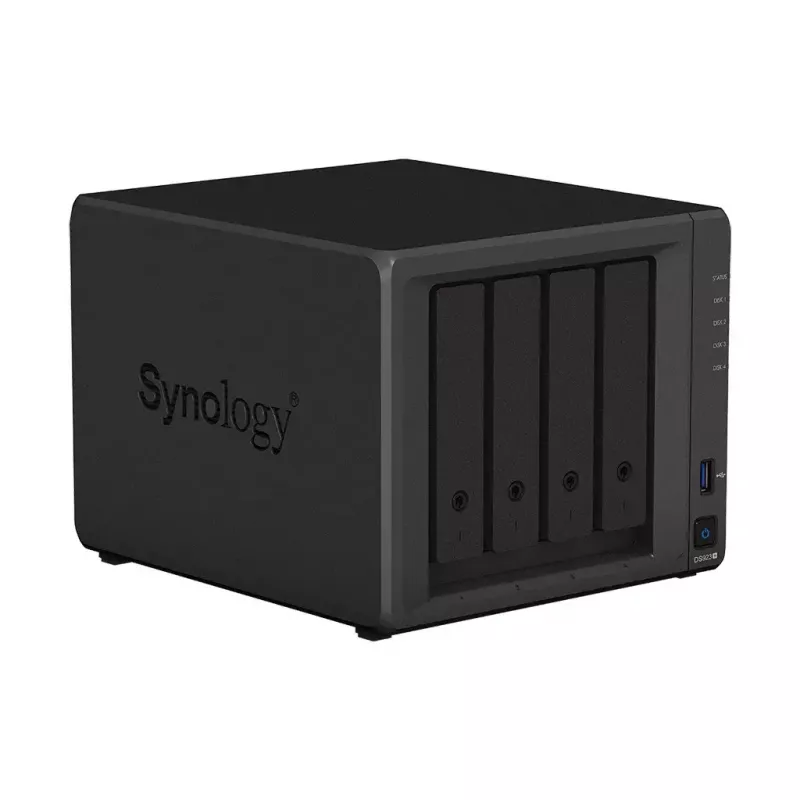

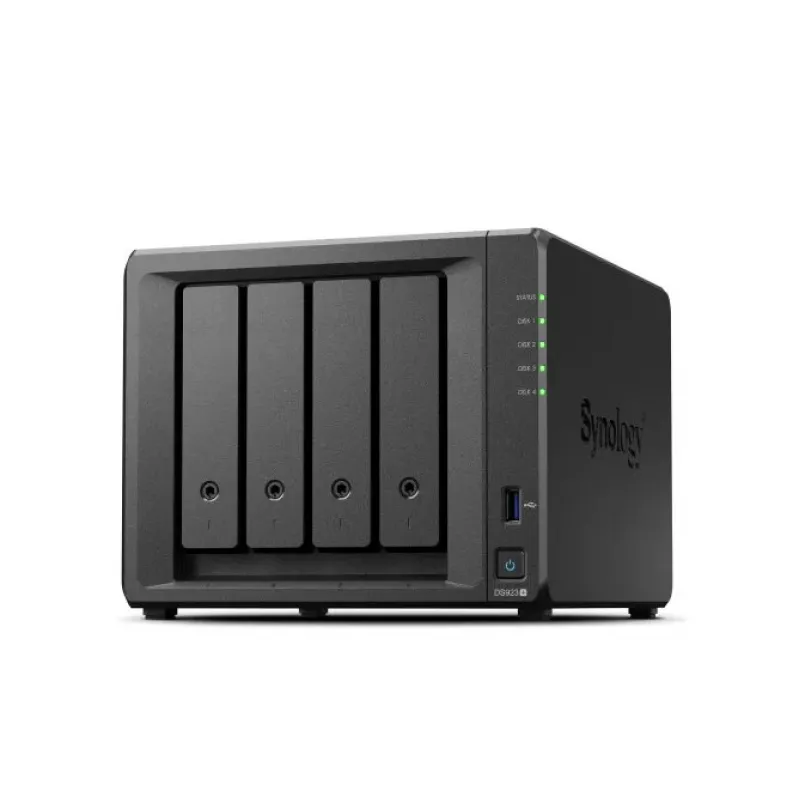

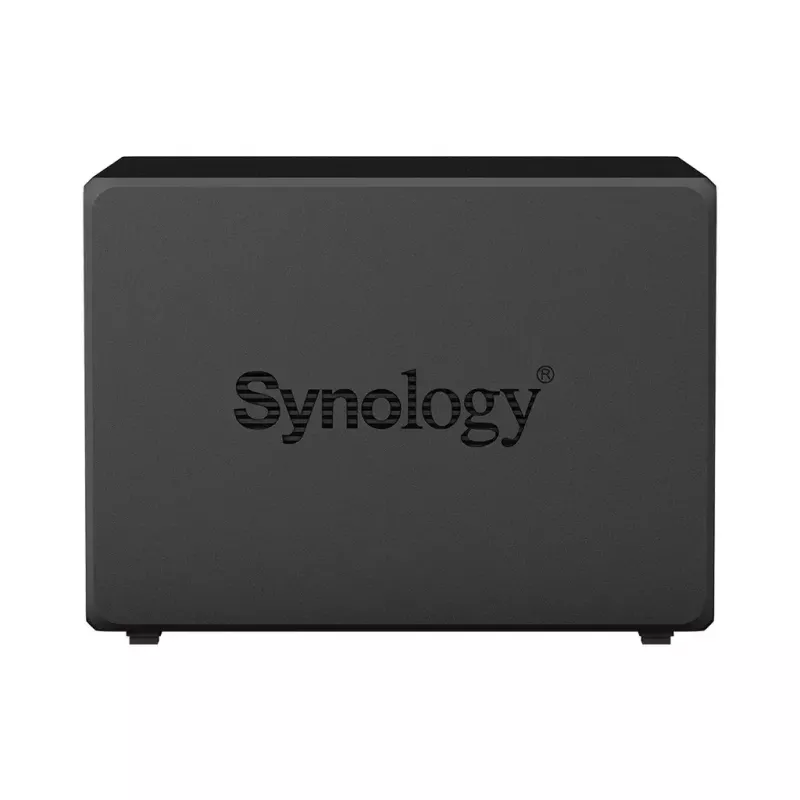

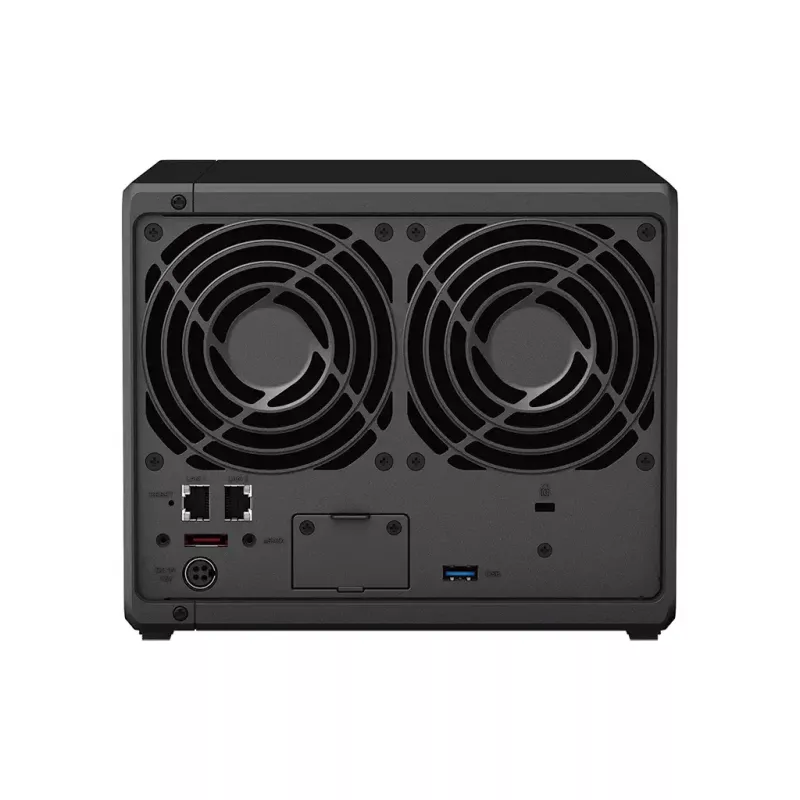

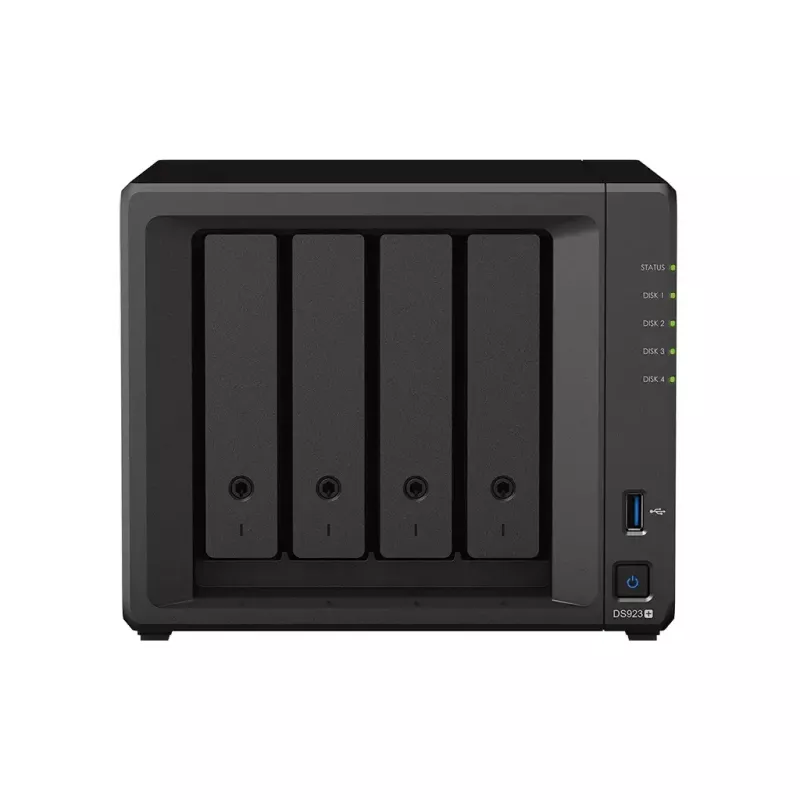

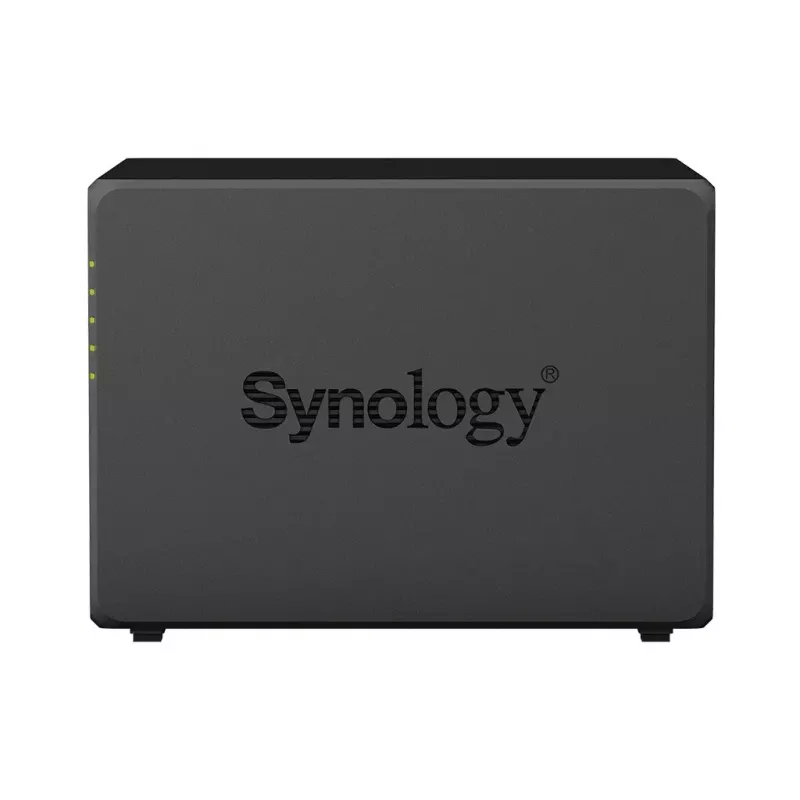

NAS Synology DiskStation DS923+

NAS Synology DiskStation DS923+
NAS Synology DiskStation DS923+
NAS Synology DiskStation DS923+
NAS Synology DiskStation DS923+
NAS Synology DiskStation DS923+
NAS Synology DiskStation DS923+
NAS Synology DiskStation DS923+
36 mo.
NAS Synology DiskStation DS923+
NAS Synology DiskStation DS923+
NAS Synology DiskStation DS923+
NAS Synology DiskStation DS923+
NAS Synology DiskStation DS923+
NAS Synology DiskStation DS923+
NAS Synology DiskStation DS923+
R13,928
Flexible storage platform for small businesses and home offices. The DS923+ consolidates growing digital data across four drive bays with support for expansion units and NVMe caching, delivering compact yet scalable storage for file sharing, backups, and private cloud services.AdvantagesThe DS923+ o... Read More
Stock Out Of StockNo Stock Code 127649 Brand SYNOLOGY Model DS923+_HAT3310-12T Warranty 3 Years

Shipping & Returns

Flexible storage platform for small businesses and home offices. The DS923+ consolidates growing digital data across four drive bays with support for expansion units and NVMe caching, delivering compact yet scalable storage for file sharing, backups, and private cloud services.

Advantages

The DS923+ offers a compact design with room for 10GbE networking and dual NVMe drives to accelerate workloads. It enables flexible consolidation of up to 50 TB across four bays and can be expanded with the DX517 for larger capacities. Hardware and software protections reduce data loss risk, while Synology’s ecosystem—DSM, Active Backup Suite, Hybrid Share, and Surveillance Station—provides centralized management, multi-layered backup, and professional video management.

Key specifications

  • Form factor: 4-bay NAS with expansion support
  • Storage capacity: up to 50 TB in 4 bays; expandable with DX517 for higher totals
  • Networking: supports 10GbE add-on
  • Cache and performance: dual NVMe slots for SSD cache
  • Software: Synology DiskStation Manager (DSM), Active Backup Suite, Hybrid Share, Surveillance Station
  • Backup: multi-layered backup for files, devices, VMs, and SaaS
  • Surveillance: supports thousands of IP camera models with dual recording and end-to-end encryption options

How to use

Install drives into the four bays and connect the DS923+ to your network; optionally add a 10GbE card and NVMe SSDs to optimise performance. Set up DSM via the web console to create shared folders, user accounts, and access permissions. Configure Active Backup Suite to centralize backups for PCs, servers, VMs, and cloud services, and enable Hybrid Share to tier cold data to cloud storage while caching hot files locally. For surveillance, install Surveillance Station and add compatible IP cameras, selecting local and cloud dual recording as needed.

Recommendations

For reliable performance, use enterprise-grade Synology drives and configure a 3-2-1 backup strategy with on-site and remote/cloud copies. Enable NVMe caching and 10GbE networking if you require reduced transfer times for demanding workloads.
Key Highlights
  • Form factor: 4-bay NAS with expansion support
  • Storage capacity: up to 50 TB in 4 bays; expandable with DX517 for higher totals
  • Networking: supports 10GbE add-on
  • Cache and performance: dual NVMe slots for SSD cache
  • Software: Synology DiskStation Manager (DSM), Active Backup Suite, Hybrid Share, Surveillance Station
  • Backup: multi-layered backup for files, devices, VMs, and SaaS
  • Surveillance: supports thousands of IP camera models with dual recording and end-to-end encryption options
Specifications
AC input frequency
50 / 60
AC input voltage
100 - 240
Access Control List (ACL)
Yes
Backup features
Cloud, iSCSI LUN
Backup function
Yes
Browser supported
Google Chrome, Firefox, Microsoft Edge, Safari
Built-in display
No
Built-in FTP server
Yes
Built-in speaker(s)
No
Built-in UPnP AV media server
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Cables included
AC, LAN (RJ-45)
Card reader integrated
No
Certification
FCC BSMI VCCI RCM UKCA EAC CCC KC
Chassis type
Tower
Compliance certificates
CE, RoHS
Cooling type
Active
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Depth
223 mm
Device class
Home & Home Office
Drive bay locking
Yes
EAN
4711174724451
ECC
Yes
eSATA ports quantity
1
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Ethernet LAN data rates
10, 100, 1000
External power adapter
Yes
Fan diameter
92 mm
Height
166 mm
Hot spare
Yes
Hot-swap drive bays
Yes
Installed storage drive type
No
Internal memory
4 GB
Internal memory type
DDR4L
iSCSI support
Yes
LED indicators
Y
Link aggregation
Yes
Management protocols
SNMP
Maximum RAM supported
32 GB
Memory slots
2
MPN
DS923+_HAT3310-12T
Multilingual support
Yes
Noise level
22.9 dB
Number of fans
2 fan(s)
Number of M.2 (M & B) slots
2
Number of power supply units
1
Number of storage drives installed
0
Number of storage drives supported
4
On/off switch
Yes
Online RAID expansion
Yes
Online RAID migration
Yes
Operating relative humidity (H-H)
5 - 95
Operating system installed
DiskStation Manager
Operating system version
7.1.1
Operating temperature (T-T)
0 - 40
PCI Express x2 (Gen 3.x) slots
1
Power cables quantity
1
Power consumption (HDD standby)
11.52 W
Power consumption (typical)
35.51 W
Power supply location
External
Power supply unit (PSU) capacity
100 W
Processor boost frequency
3.1 GHz
Processor cores
2
Processor family
Ryzen Embedded
Processor frequency
-2.6 GHz
Processor generation
AMD Ryzen Embedded R1000 Series
Processor manufacturer
AMD
Processor model
R1600
Product colour
Black
RAID levels
1, 5, 6, 10, JBOD
RAID support
Yes
Redundant power supply (RPS) support
No
Reset button
Yes
Security algorithms
AES
Server operating systems supported
Windows Server 2016, Windows Server 2019
Storage drive sizes supported
2.5, 3.5
Storage drives installed
No
Storage temperature (T-T)
-20 - 60
Supported file systems
BTRFS, FAT, HFS+, NTFS, ext3, ext4
Supported network protocols
SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported storage drive interfaces
M.2, Serial ATA III
Supported storage drive types
HDD & SSD
Sustainability compliance
Yes
Total installed storage capacity
0 TB
Type
NAS
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB port
Yes
Wake-on-LAN ready
Yes
Weight
2.34 kg
Width
199 mm

Leaflet

Open Leaflet

Document

Open Document

Document

Open Document
