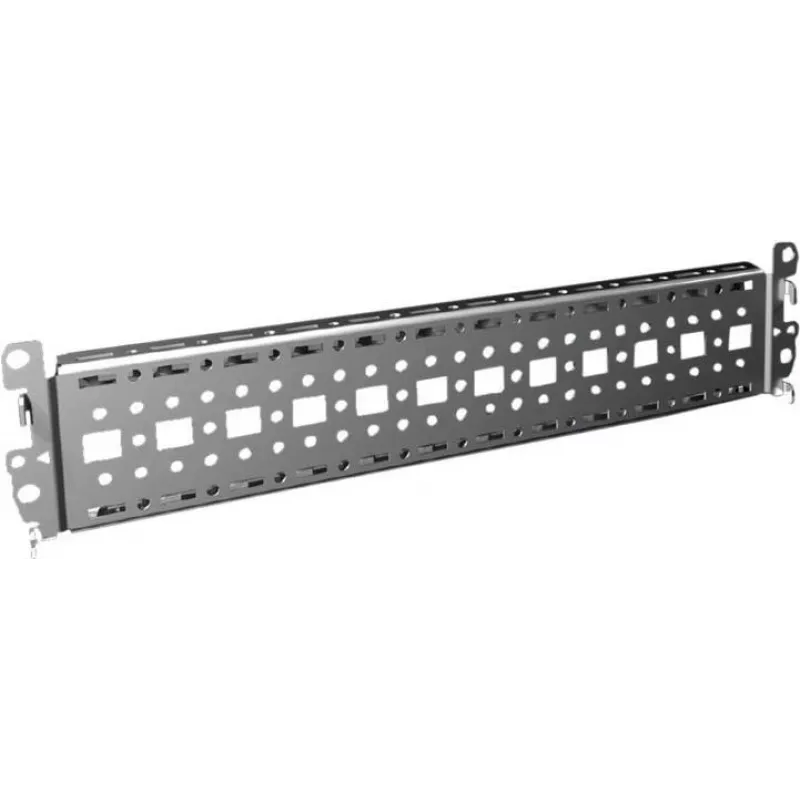

Mounting plate Rittal VX 8617.010, steel, grey, width 400 mm, pack of 4

Rittal VX 8617.010 is a steel mounting plate designed for interior installation in Rittal VX enclosures and compatible cabinet systems. Finished in grey and sized with a 400 mm width, this plate provides a flat, robust surface for fixing electrical components, terminal blocks, control units and small devices directly to the enclosure interior. The product is supplied as a pack of four plates to support multiple assembly points or staged installations.

Advantages

The steel construction ensures mechanical strength and reliable support for mounted components, while the factory-applied grey finish offers corrosion protection and a uniform appearance inside the enclosure. A standard width of 400 mm makes the plate compatible with common mounting levels in Rittal VX frames and reduces the need for cutting or modification. Supplied in a pack of four, the plates simplify inventory and allow multiple interior mounting positions to be prepared at once.

Suitable for

Key specifications

How to use

Position the mounting plate on the outer mounting level of the enclosure frame and fix it using the appropriate screws or fasteners compatible with the VX system and enclosure design. Use the plate as a mounting base for terminal strips, small control devices and other electrical components, ensuring that all fixings are tightened securely and that component placement respects required clearances, cable routing and cooling considerations. When installing multiple plates from the pack, align them to the enclosure's mounting levels to maintain structural stability and consistent interior layout.

Recommendations

Verify compatibility with your specific Rittal VX frame and choose corrosion-resistant fasteners for humid or industrial environments. Plan component layout and cable routing before fixing plates to reduce rework. For electrical safety, follow applicable standards and ensure proper grounding when mounting conductive components.
