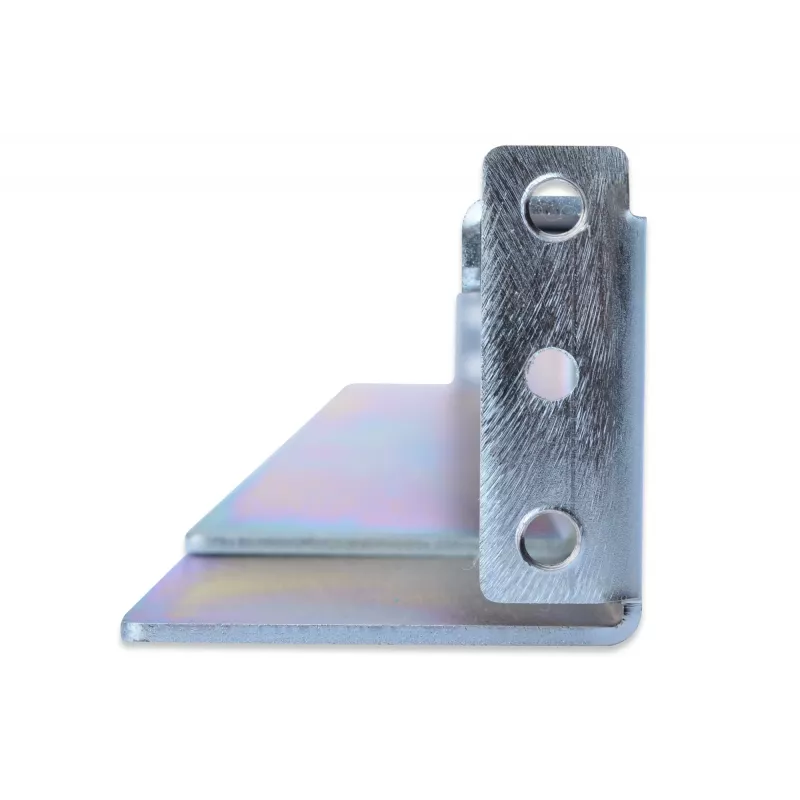

Sliding Rails Digitus DN-19 GS-SRV

The Digitus L-Support Sliding Rails (DN-19 GS-SRV) are designed for 483 mm (19") network and server cabinets. Made from galvanized steel, these sliding rails provide adjustable mounting depth from 500 mm to 750 mm and support equipment up to 100 kg. They mount to the cabinet's four 19" profile rails and are suitable for 1U rack installations, offering a durable and professional solution for secure server mounting.

Advantages

Galvanized steel construction ensures corrosion resistance and long service life. The variable depth adjustment (500–750 mm) allows compatibility with a range of cabinet sizes. With a load capacity up to 100 kg, the rails support heavy-duty components while attaching directly to the cabinet's 19" profile rails for stable installation.

Suitable for

• Mounting 1U servers in 483 mm (19") cabinets
• Installing heavy network components up to 100 kg
• Cabinets with mounting depths between 500 mm and 750 mm

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-19 GS-SRV
• EAN: 4016032366461
• Compatibility: 483 mm (19") network and server cabinets
• Mounting depth: 500 mm – 750 mm
• Load capacity: up to 100 kg
• Material: galvanized steel
• Suitable rack unit: 1U

How to use

Attach the sliding rails to the four 19" profile rails inside the cabinet at the required depth. Adjust the rail depth within the 500–750 mm range to match the equipment and cabinet dimensions. Secure the rails and then mount the 1U device onto the rails, ensuring all fasteners are tightened and the load is distributed evenly.

Recommendations

Verify cabinet depth and device dimensions before installation. Do not exceed the maximum load capacity of 100 kg. Use appropriate screws and fasteners recommended for 19" cabinet installations to ensure a secure fit.
