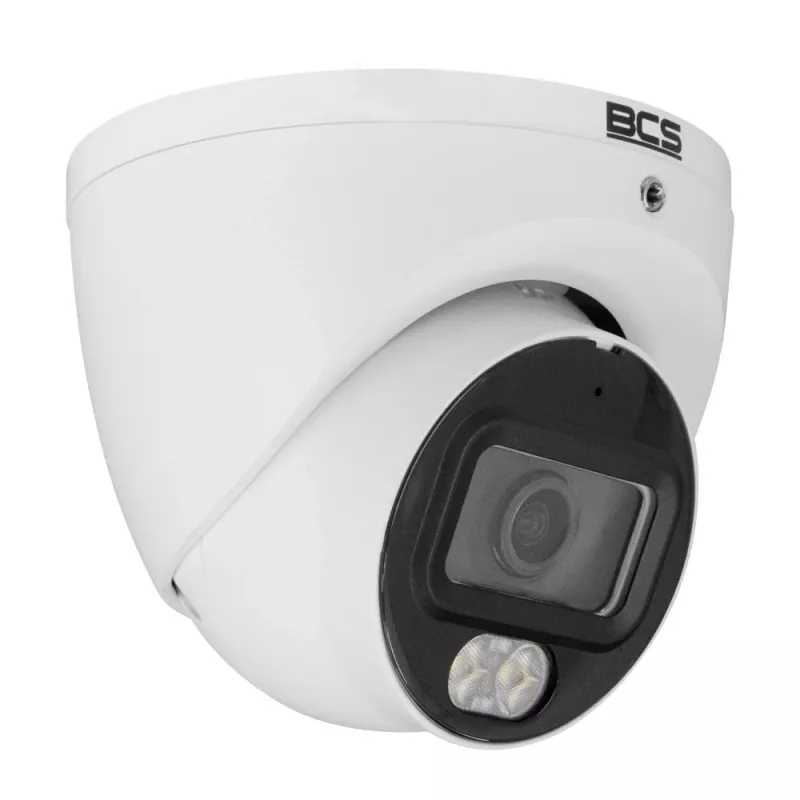

BCS BCS-EA15FR3L3 5MP HD Analog Dome Camera with 3.6mm Lens, 30m IR, IP67, 4-in-1 (AHD/TVI/CVI/CVBS)

Monitoring a shop floor, warehouse, or building entrance? The BCS BCS-EA15FR3L3 analog HD dome camera delivers crisp 5-megapixel video over existing coaxial cabling, so you can upgrade to high definition without rewiring. Its compact dome design blends into any ceiling, while the rugged IP67-rated housing stands up to dust and rain for outdoor use too.

Key specifications

• 5MP (2592 x 1944) CMOS sensor with 4-in-1 video output: AHD, TVI, CVI, and CVBS
• Fixed 3.6mm lens with 80° horizontal field of view
• Smart IR night vision up to 30 meters, with 0 Lux minimum illumination when IR is on
• DWDR, 2D/3D DNR, BLC, HLC, and AGC for clear images in challenging light
• IP67 weatherproof rating for indoor and outdoor installation
• 12V DC power supply, max 3.5W consumption
• Operating temperature range: -30°C to +60°C

Why choose it

This camera captures fine details such as faces and license plates, thanks to its 5MP resolution. The 4-in-1 output works with most HD DVRs, making it a flexible choice for new or existing systems. Smart IR automatically adjusts infrared intensity to prevent overexposure, ensuring clear night vision without washed-out subjects.

Ideal use cases

• Retail stores, offices, and lobbies needing discreet ceiling-mounted surveillance
• Warehouses and parking areas requiring wide-area coverage with strong night vision
• Upgrading an analog CCTV system to HD without replacing cables

Good to know

The metal and plastic housing is built to last, and the camera includes an OSD menu for fine-tuning image settings. For outdoor use, mount it under an eave or in a sheltered location to extend its lifespan. A 12V DC power supply is required (not included).
