Mounting plate Rittal KX 1560.800, steel, white, 240 g

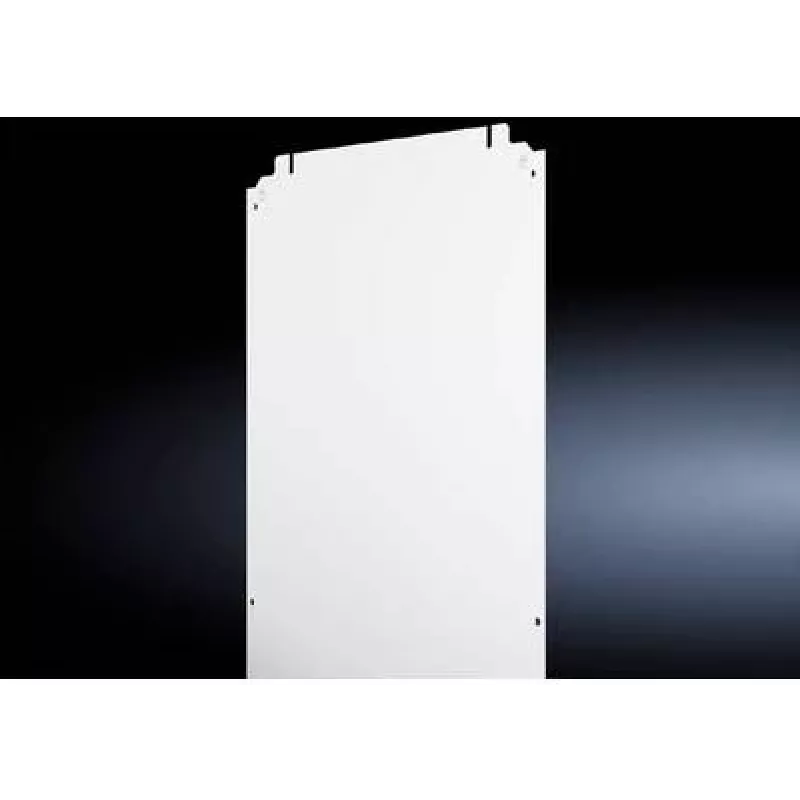

Rittal KX 1560.800 is a steel mounting plate in a white finish that provides a flat, rigid surface for installing electrical and electronic components inside enclosures and cabinets. Weighing 240 g, the plate is intended for secure mounting of DIN rails, terminal blocks, control equipment and other panel-mounted devices during new installations or retrofit work. The white coating offers a neutral appearance and corrosion protection suitable for industrial and commercial cabinet assemblies.

Advantages

The steel construction ensures mechanical strength and stability for mounted components while the white surface finish provides basic protection against corrosion and an unobtrusive look inside cabinets. The lightweight design at approximately 240 g makes handling and fitting straightforward without adding excessive mass to the enclosure. The flat, uniform surface simplifies alignment and fixing of DIN rails and terminal blocks.

Suitable for

Key specifications

How to use

Position the mounting plate on the inner wall or frame of the enclosure where a flat surface is required. Mark and drill holes in the enclosure if necessary, then fasten the plate using appropriate screws or bolts compatible with the enclosure material. Install DIN rails, terminal blocks or devices onto the plate according to manufacturer instructions for the mounted equipment. Ensure all fastenings are secure and check clearances for cables and ventilation before closing the cabinet.

Recommendations

Use corrosion-resistant fasteners when installing the plate in humid or corrosive environments. Verify compatibility of the plate dimensions with your enclosure and with the DIN rails or components to be mounted. For safe electrical installations, follow applicable wiring standards and ensure adequate grounding of metal parts.
