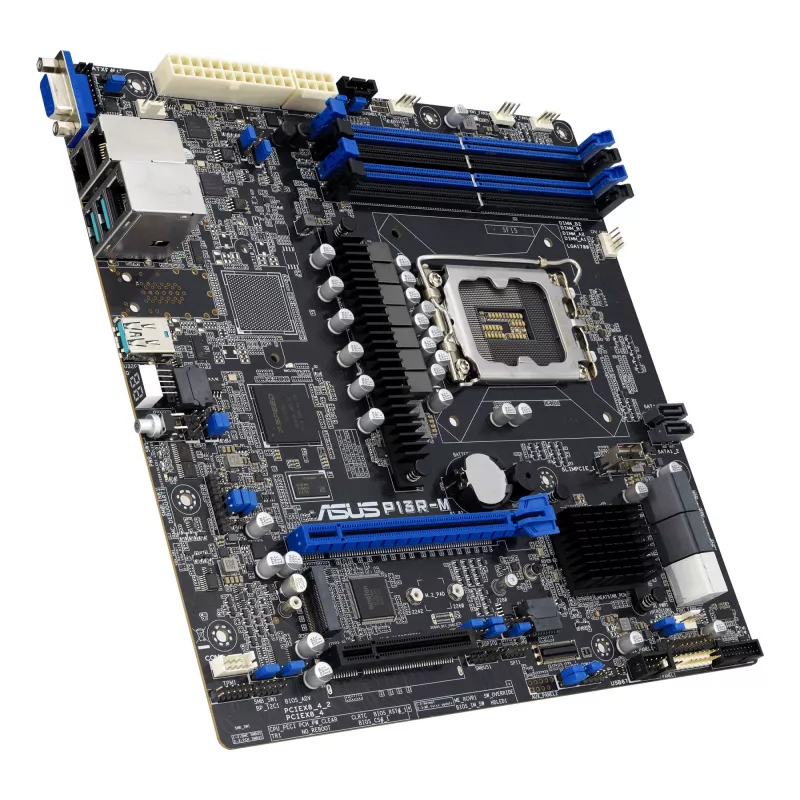

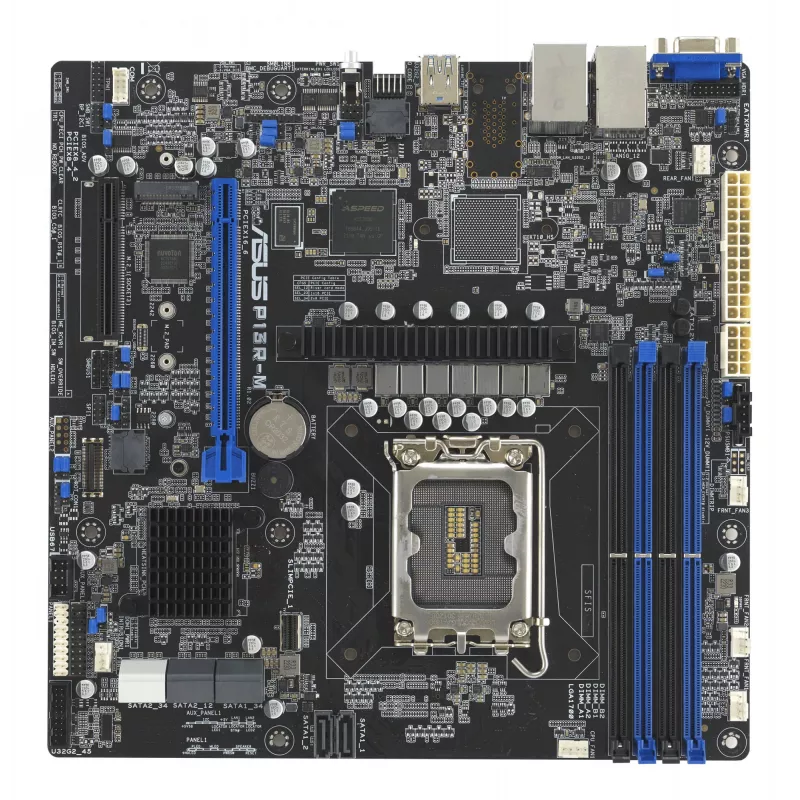

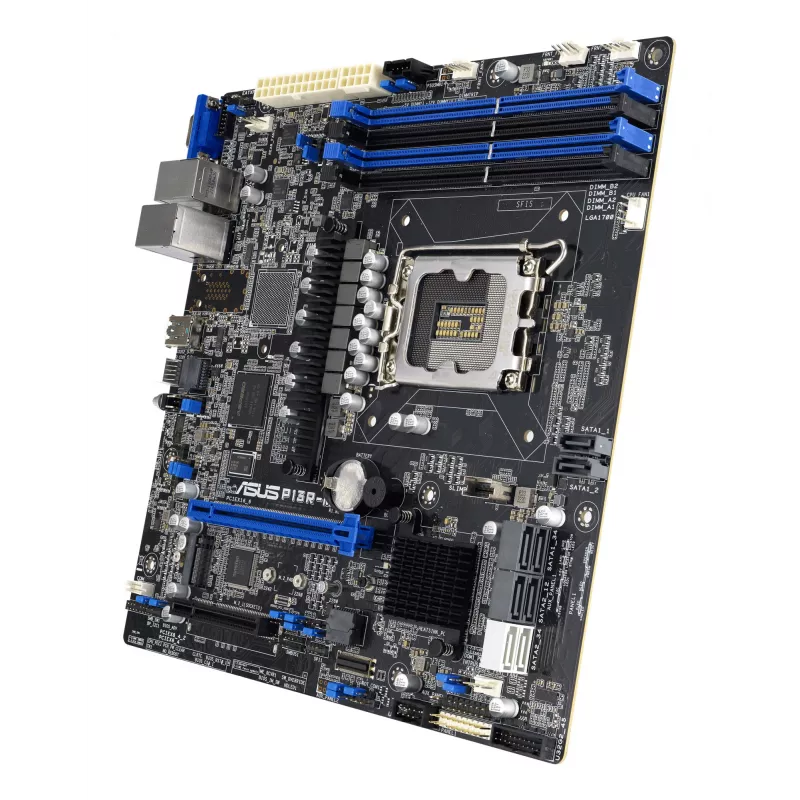

Motherboard ASUS P13R-M Intel C262 LGA 1700 micro ATX, DDR5, 4 DIMM, 128GB, 8x SATA III, 1x M.2, 2x LAN

ASUS P13R-M is an Intel® Xeon® E-2400 LGA 1700 micro-ATX server motherboard with support for four DDR5 ECC UDIMM and one M.2 slot, plus dual LAN, eight SATA, one PCIe® 5.0 slot and one PCIe 4.0 slot, three USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and onboard ASUS ASMB11-iKVM.

PCIe 5.0 Ready
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

Intel Xeon E-2400 processors
Designed for small- to medium-sized businesses (SMBs) and cloud-service providers, offering robust and secure solutions. These processors support up to eight cores and 16 threads, with a maximum frequency of 5.6 GHz and a 95 W TDP, ensuring rapid data processing and application responsiveness. They support up to 128 GB of DDR5 4400 MT/s memory and PCIe 5.0 interfaces, providing server-grade 24/7 reliability for business-critical services and customer data, and cost-effective performance for entry-level bare-metal cloud services.

Three fast USB 3.2 Gen 2 ports
ASUS P13R-M is equipped with three USB 3.2 Gen 2 ports on its rear I/O panel. These high-speed connections offer rapid data-transfer speeds of up to 10 Gbps, for fast, efficient and reliable file transfers. These sockets are also backward compatible, ensuring seamless connectivity with a wide range of USB devices.

Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P13R-M server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.

Comprehensive IT infrastructure management
P13R-M features an embedded iKVM module and is optionally equipped with ASUS Control Center, offering comprehensive out-of-band and in-band management features tailored for small and mid-size businesses. The embedded ASUS ASMB11-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording and BSOD capture, providing around-the-clock remote monitoring and diagnostics. This functionality remains accessible even if the operating system is down or offline, through a user-friendly web-based graphical interface compatible with all major browsers. ASUS Control Center (ACC) further enhances IT infrastructure management, centralizing and integrating monitoring and control for ASUS commercial products, including servers, workstations, and digital signage. ACC enables remote BIOS updates, mobile device system monitoring, and simplified server management through one-click software updates and dispatching.

Enhanced security
ASUS P13R-M server motherboards integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

In addition, all P13R-M server motherboards servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

How to use

Install the motherboard into a compatible micro-ATX server chassis and fit a supported LGA 1700 processor and up to four DDR5 ECC UDIMM modules. Connect storage devices to the M.2 slot and SATA ports and install expansion cards into the PCIe 5.0 or PCIe 4.0 slots as required. Attach network cables to the dual LAN ports and connect USB devices to the rear USB 3.2 Gen 2 ports. Configure BIOS settings for memory, storage and security features, and enable ASMB11‑iKVM for remote management. Use ASUS Control Center for centralized monitoring and updates if deployed in a managed environment.

Recommendations

For reliable 24/7 operation, use ECC DDR5 memory, a compatible Xeon E-series CPU within the supported range, and keep firmware and ASMB/iKVM firmware updated. Use ASUS Control Center for large-scale management and enable PFR and TPM 2.0 to maintain firmware and platform integrity.
