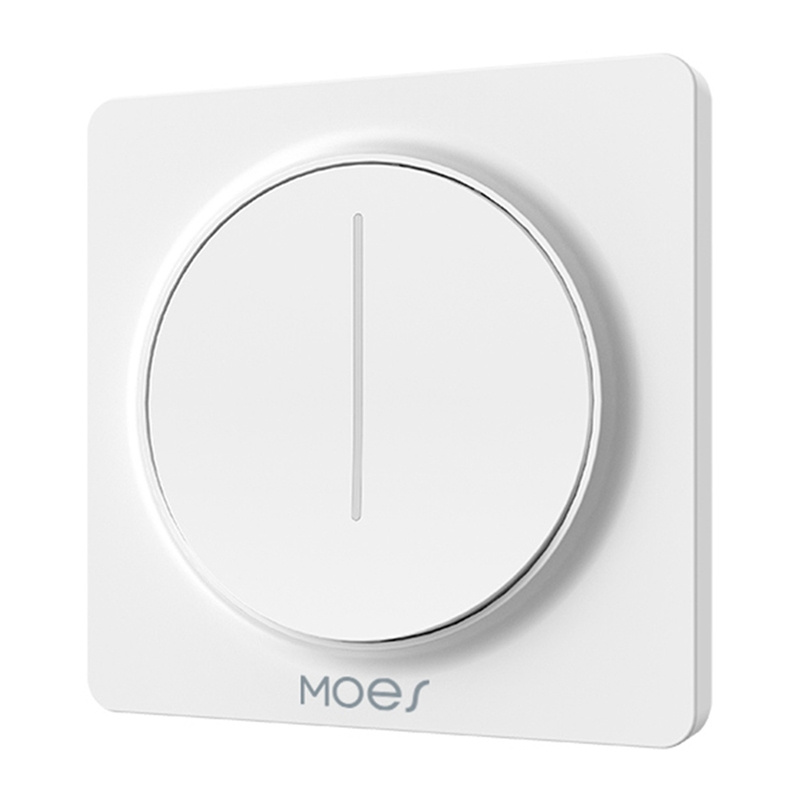

MOES ZS-SY-EUD Zigbee Touch Wall Dimmer, White, Neutral Required

MOES ZS-SY-EUD-WH-MS is a white single-channel wall dimmer with a touch dimming surface and a mechanical on/off press. It controls compatible dimmable lighting locally or through a MOES/Tuya Zigbee gateway and the Smart Life or Tuya app. The gateway is required for smart functions. Alexa and Google Home support, brightness memory, schedules and countdown timers are available through the connected system.

A neutral conductor is required in the installation box. The manual specifies a 220 V AC, 50 Hz supply and maximum loads of 220 W for compatible dimmable LED lamps or 300 W for incandescent lamps. The operating range is −10 to 45 °C at below 90% relative humidity, with standby power no greater than 0.5 W. This is the EUD touch model. Installation and load selection must follow the supplied instructions and be performed by a qualified installer.
