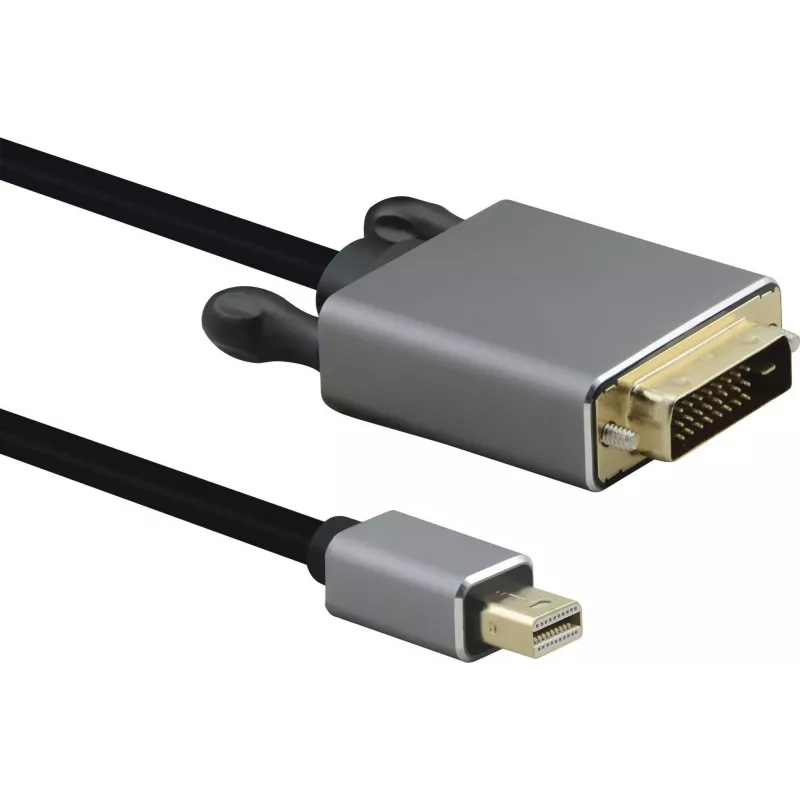

Mini DisplayPort to DVI cable helos 288475 — 1.0 m, black

Helos PREMIUM mini DisplayPort to DVI cable, 1 m, in black. This cable connects a device with a Mini DisplayPort output to a DVI-D input (24+1 pin) and supports a maximum resolution of 1920 x 1080 at 60 Hz. The connector housings are made of aluminium and the cable jacket is thermoplastic elastomer (TPE).

Advantages

The cable is DPCP-compliant and supports 1080p video, HDR10 and 3D video formats. It also supports Dolby and DTS-HD Master Audio passthrough and Multi-Stream Transport (MST) functionality for compatible host devices. The compact Mini DisplayPort (male) to DVI-D (male) design provides a simple single-cable connection between sources and displays.

Suitable for

• Connecting laptops or desktop graphics cards with Mini DisplayPort outputs to DVI-D monitors or projectors
• Home or office setups that require 1080p video at 60 Hz
• Setups requiring HDR10 or 3D video support where the display and source are compatible

Key specifications

• Length: 1 m
• Connector A: Mini DisplayPort (male)
• Connector B: DVI-D 24+1 (male)
• Maximum resolution: 1920 x 1080 @ 60 Hz
• Cable jacket: Thermoplastic elastomer (TPE)
• Connector housing: Aluminium
• Supported features: 1080p, HDR10, 3D video, Dolby/DTS-HD Master Audio passthrough, DPCP-compliant, Multi-Stream Transport

How to use

Connect the Mini DisplayPort (male) end to the source device and the DVI-D (male) end to the display or projector. Ensure both devices are powered on and set the display input to the connected DVI port. Configure the source device display settings to 1920 x 1080 @ 60 Hz if not selected automatically. For HDR10 or 3D features, enable the corresponding settings on both source and display when supported.

Recommendations

Do not force connectors into ports; align the plugs before insertion. Keep the cable away from sharp edges and extreme temperatures. If you experience audio or video issues, check device settings and cable seating before replacing the cable.
