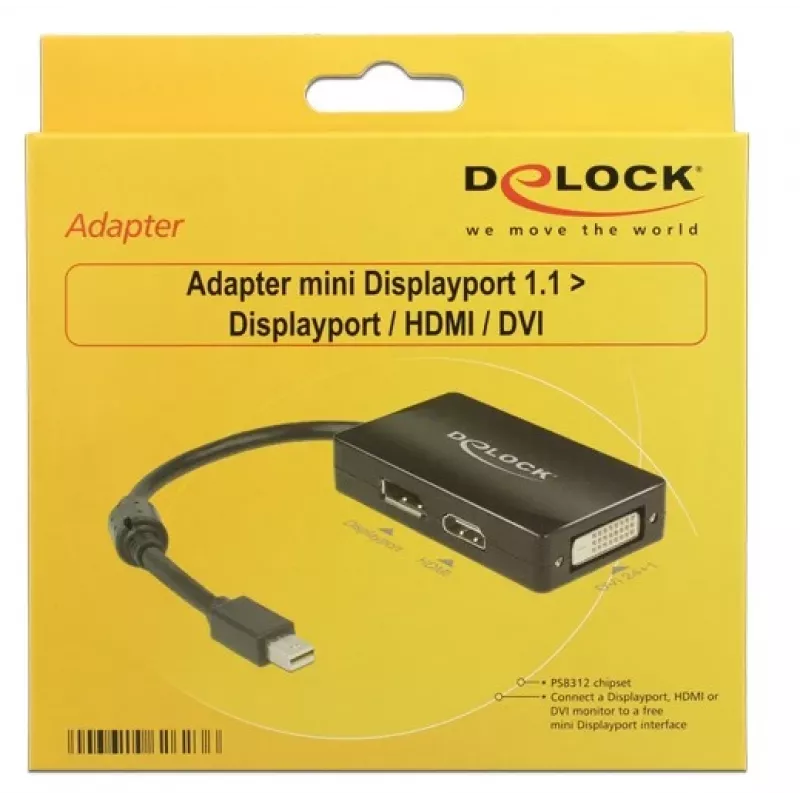

Cable DeLOCK 0.16m DisplayPort HDMI DVI Mini DisplayPort

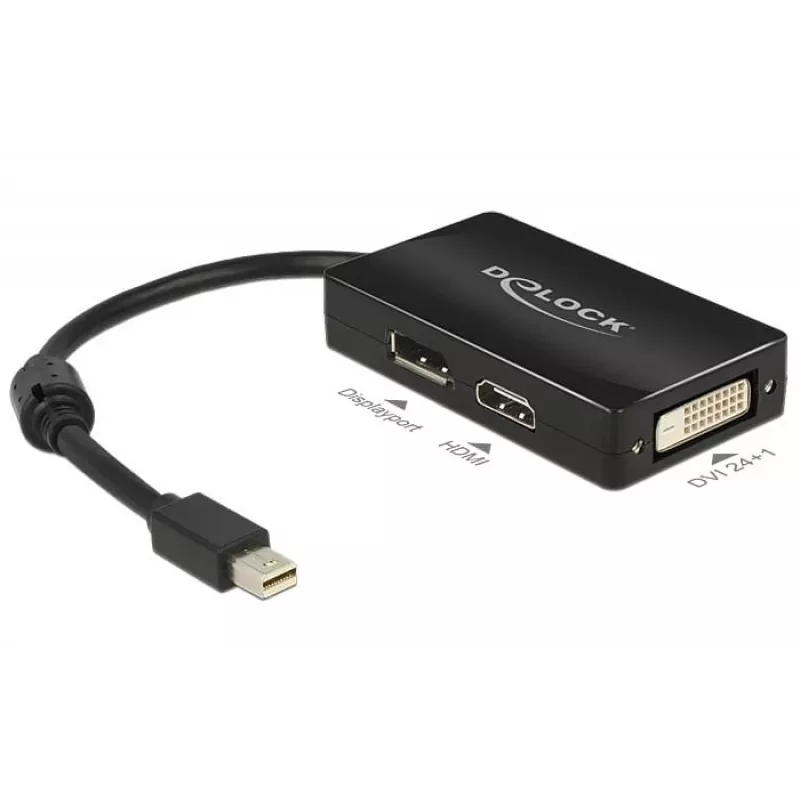

This Delock mini DisplayPort adapter converts a single Mini DisplayPort source into one of three video outputs: DisplayPort, HDMI or DVI-D (Single Link). The compact 0.16 m cable integrates a Mini DisplayPort 20‑pin male connector and three female outputs (DisplayPort 20‑pin, HDMI‑A 19‑pin and DVI‑D 24+1) and is designed to connect devices such as TVs, projectors or PC monitors. Only one output can be used at a time and no additional drivers are required.

Advantages

The adapter is passive (level shifter) and uses the PS8312 chipset to provide compatibility with DP++ (Dual‑Mode DisplayPort) graphics outputs, offering support for Mini DisplayPort 1.1a and High Speed HDMI signalling. It supports video resolutions up to 1920 x 1200 or 1080p at 60 Hz depending on the source device, consumes approximately 100 mW, and comes with a ferrite core to reduce interference. The short 16 cm cable length makes it suitable for tight setups and the DVI connector includes screw nuts for secure fastening.

Suitable for

• Connecting a laptop or PC with Mini DisplayPort/DP++ output to a DisplayPort monitor
• Connecting a Mini DisplayPort/DP++ source to an HDMI TV or projector
• Connecting a Mini DisplayPort/DP++ source to a DVI‑D display (Single Link)

Key specifications

• Connectors: 1× Mini DisplayPort 20‑pin male → 1× DisplayPort 20‑pin female, 1× HDMI‑A 19‑pin female, 1× DVI‑D (Single Link) 24+1 female
• Chipset: PS8312
• Standards: Mini DisplayPort 1.1a, High Speed HDMI
• Resolution support: up to 1920×1200 / 1080p @ 60 Hz (system dependent)
• Passive converter — requires DP++ (Dual‑Mode) output on the graphics card
• Cable length: approx. 16 cm (without connectors)
• Power consumption: approx. 100 mW
• Colour: black

How to use

Connect the Mini DisplayPort male plug to the Mini DisplayPort or Thunderbolt/DP++ output on your computer. Choose and plug the required display connector (DisplayPort, HDMI or DVI‑D) into the target display device. Ensure the graphics card supports DP++ if you are converting to HDMI or DVI. Only one output can be active at a time; switch the display input on the monitor or TV to the connected port. No driver installation is necessary.

Recommendations

Use short cable routing and avoid tight bends to maintain signal integrity. For conversion to HDMI or DVI ensure the source supports DP++. If you require higher than 1080p or multi‑monitor configurations, consider an active adapter or a direct digital output that supports higher bandwidth.
