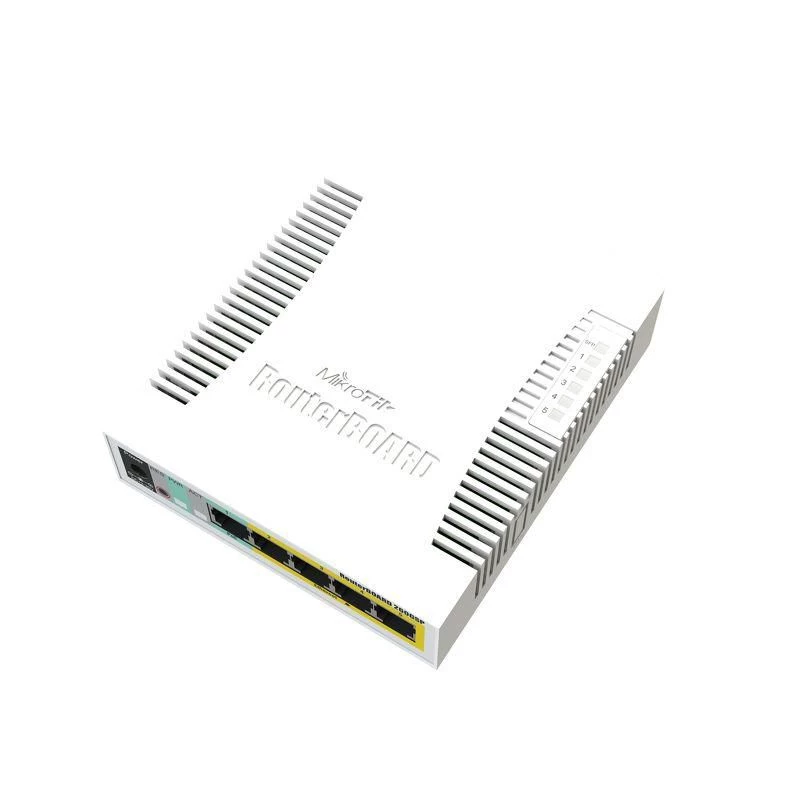

MikroTik RB260GSP 5-Port Gigabit PoE Switch with SFP

The MikroTik RB260GSP (also known as CSS106-1G-4P-1S) is a compact, managed switch featuring 5 Gigabit Ethernet ports, 4 of which support Passive PoE output, plus one SFP cage for fiber uplinks. Designed for small to medium networks, it offers reliable performance with low power consumption and flexible mounting options.

Advantages

Passive PoE output on 4 ports simplifies powering devices like IP cameras and access points. The SFP port enables long-distance fiber connectivity. Web-based management via MikroTik SwOS provides VLAN, QoS, and port configuration. Fanless design ensures silent operation, ideal for office or desktop use.

Suitable for

• Small business networks requiring PoE for devices
• Surveillance systems with PoE cameras
• Home networks needing a managed switch with fiber uplink
• Desktop or wall-mounted installations

Key specifications

• 5x 10/100/1000 Gigabit Ethernet ports (1 PoE input, 4 PoE output)
• 1x SFP cage for fiber modules
• Passive PoE output: up to 1A per port, 2A total
• PoE input on port 1: 8-30V DC
• DC jack input: 8-30V DC
• Switch chip: Atheros AR8327
• Operating system: MikroTik SwOS
• MAC address table: 2K entries
• Jumbo frame support: up to 10218 bytes
• Forwarding mode: Store-and-forward
• Max power consumption: 3W
• Operating temperature: -25°C to +65°C
• Mounting: Desktop, wall-mountable
• LED indicators: Power, Ethernet Link/Activity, PoE Status

Recommendations

For optimal PoE performance, use a power supply that matches the total PoE budget. The switch supports passive PoE only; ensure your devices are compatible. For advanced management, upgrade to RouterOS (sold separately).
