Microconnect FIB442005 InfiniBand/fibre optic cable 5 m LC Blue

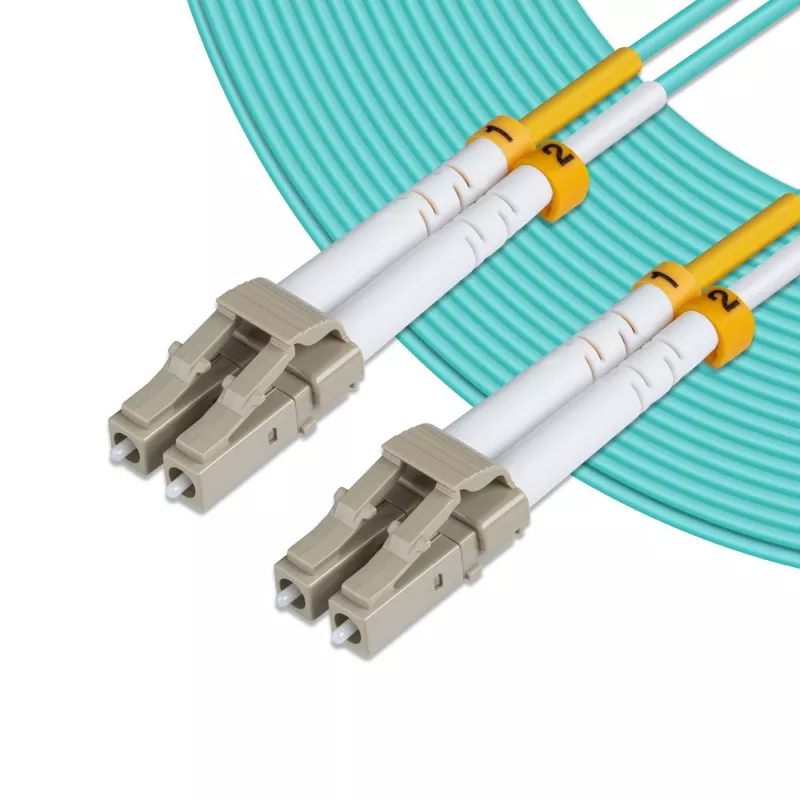

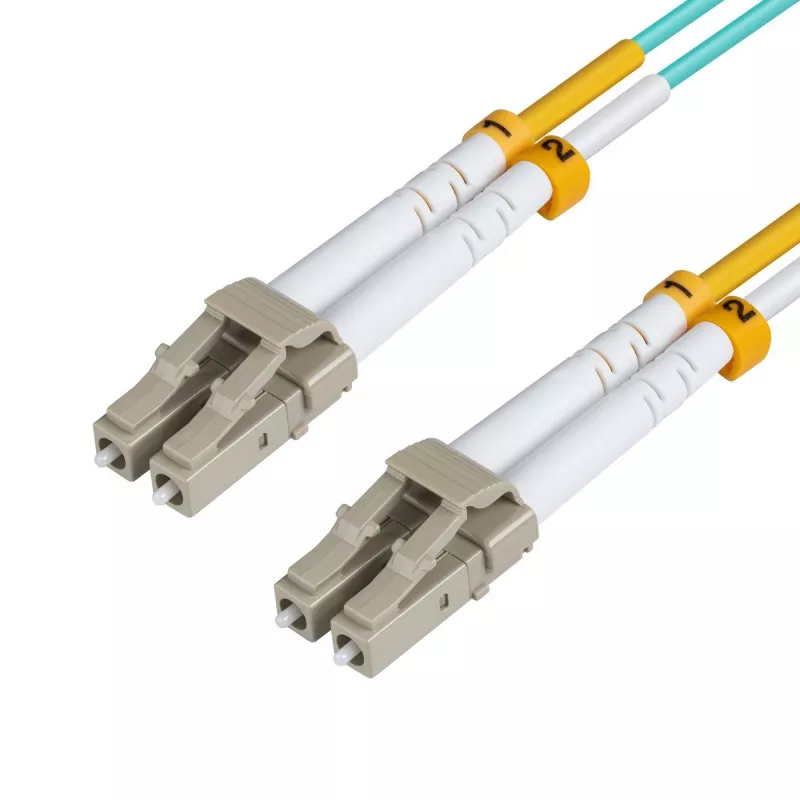

The Microconnect FIB442005 is a 5 m OM3 multimode fibre optic patch cable with LC connectors on both ends and a 50/125 µm core/cladding size. Designed for full‑duplex high‑speed links, this blue LSZH cable supports 10G SR, 10G LRM and other SFP+/transceiver modules used in 10G/40G/100G Ethernet connections.

Advantages

OM3 multimode construction with bend‑insensitive design reduces attenuation when the cable is bent or twisted compared with traditional multimode fibres. The LSZH jacket complies with common industry standards and the LC–LC termination offers compact, reliable connections suitable for data centre and LAN environments. The 5 m length provides convenient reach for rack and cabinet deployments.

Suitable for

• 10G SR and 10G LRM links
• SFP+ transceiver connections
• 10G/40G/100G Ethernet uplinks in data centres and server rooms
• Short to medium distance multimode fibre runs within racks and cabinets

Key specifications

• Core/cladding: 50/125 µm (OM3)
• Length: 5 m
• Connectors: LC — LC (duplex)
• Jacket: LSZH
• Colour: Blue
• Weight: 0.04 kg
• MPN: FIB442005, EAN: 5705965890110

How to use

Connect one LC connector to the transceiver or fibre port on your network device and the other LC connector to the corresponding port on the switch, server or patch panel. Ensure connectors and ports are clean before mating to minimise insertion loss. Route the cable following standard fibre handling practices: avoid tight bends, excessive tension and crushing, and secure the cable within racks or trays to prevent movement.

Recommendations

Use this OM3 LC–LC patch cable for short to medium multimode links where 10G performance is required. For distances beyond OM3 specifications or for singlemode applications, select an appropriate singlemode fibre and matching transceivers.
