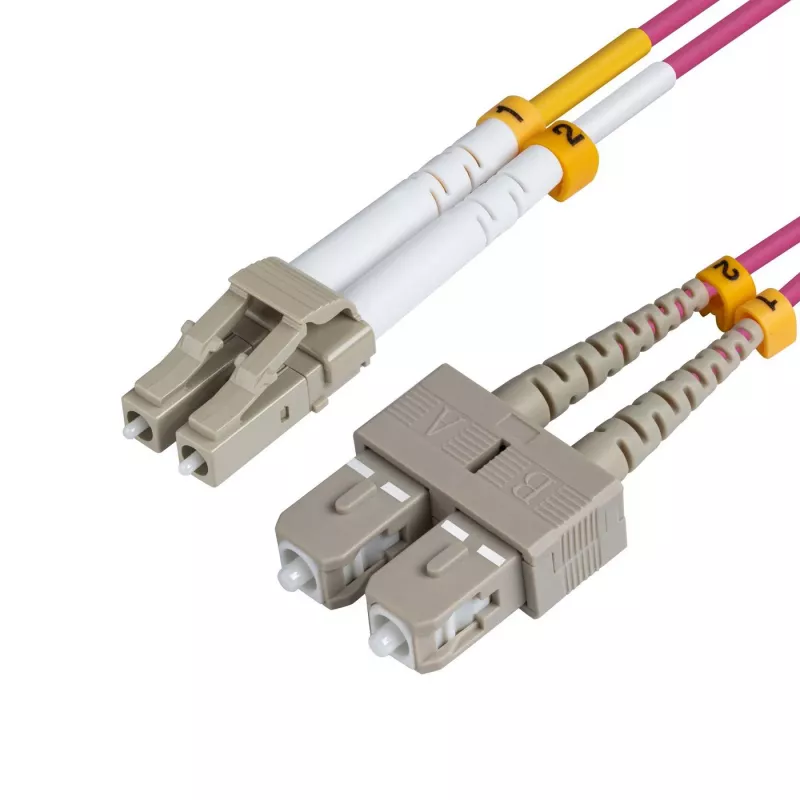

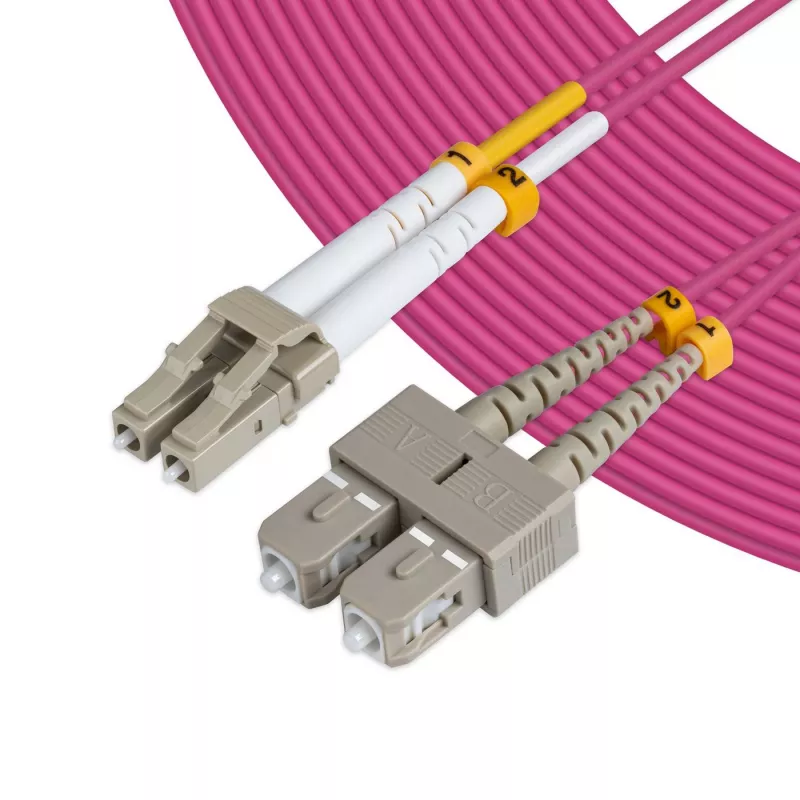

Microconnect FIB422002P InfiniBand/fibre optic cable 2 m LC SC Violet

The Microconnect FIB422002P is a 2 m OM4 multimode fibre optic patch cable with LC to SC connectors and a 50/125 µm core/cladding diameter. Designed for high-speed links in data centres and high-performance computing, this violet cable supports 10G/40G/100G Ethernet and InfiniBand connections while using LSZH jacket material that meets common industry standards.

Advantages

This OM4 multimode cable offers lower attenuation for bent or twisted runs compared with traditional multimode cables, making installation and maintenance more efficient. The 50/125 µm core size combined with OM4 performance is suited to 10G SR, 10G LRM and SFP+ transceivers, providing reliable short‑range high‑speed transmission. The violet colour simplifies identification in cabling environments.

Suitable for

• 10G/40G/100G Ethernet connections
• InfiniBand and other high‑performance computing links
• Connections using LC and SC fibre interfaces
• Data centre patch panels and short‑reach trunking

Key specifications

• Brand: MicroConnect
• Model: FIB422002P
• Fibre type: OM4 multimode
• Core / cladding: 50/125 µm
• Length: 2 m
• Connectors: LC — SC
• Jacket: LSZH (meets IEC / EIA‑TIA / Telcordia standards)
• Color: Violet
• Weight: 0.018 kg

How to use

Inspect connectors and cable for damage before installation. Align and insert the LC and SC connectors into their respective ports until they latch. Route the cable to avoid tight bends and maintain the manufacturer recommended minimum bend radius to preserve OM4 performance. When disconnecting, release the connector latch first and then gently withdraw to avoid stress on the fibre.

Recommendations

Use this OM4 LC‑SC patch cable for short‑reach, high‑bandwidth links in data centres and server rooms. Avoid sharp bends and excessive pulling forces during installation; store and label cables to simplify future maintenance.
