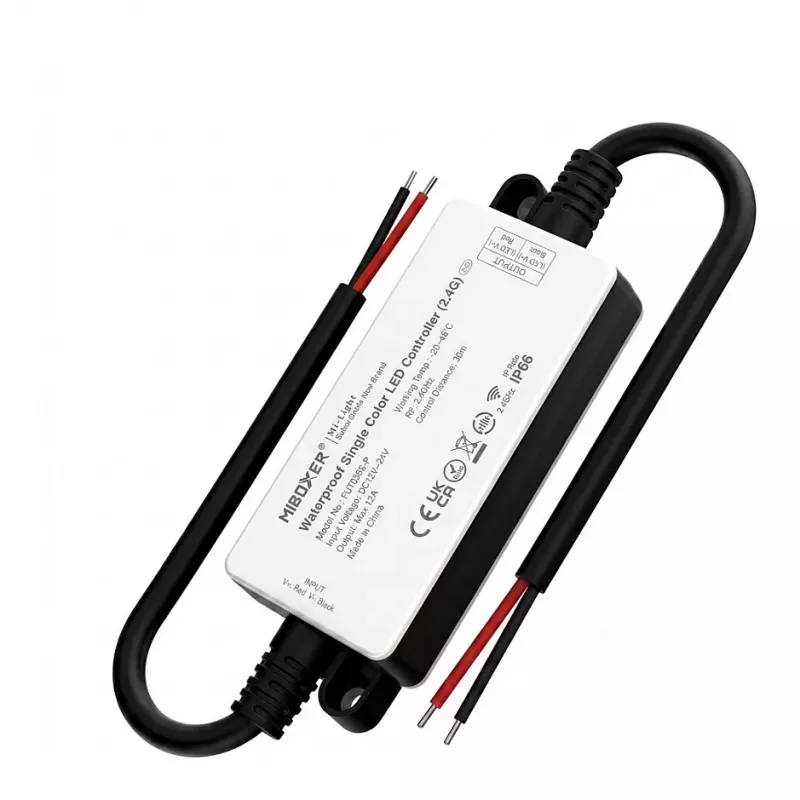

Miboxer Synergy 21 LED Controller ARGOS Waterproof IP66 Single Color 2.4G (S21-LED-L00240214)

The Miboxer Synergy 21 LED Controller ARGOS is a high-performance, single-color LED controller designed for both indoor and outdoor use. With an IP66 waterproof rating, it is ideal for wet locations, providing reliable control for monochrome LED strips and lights. This controller operates via 2.4GHz RF wireless technology, offering a control distance of up to 30 meters. It supports constant voltage input and output (DC 12V-24V) with a maximum output current of 10A, delivering up to 120W at 12V or 240W at 24V. The PWM dimming technology enables smooth 0-100% dimming, and it is compatible with Miboxer 2.4G remotes, wall panels, and gateways such as the WL-Box1. Built with high-grade PC housing and screw terminals, it includes overload and short circuit protection, ensuring safe and durable operation in temperatures from -20°C to 60°C.

Advantages

This LED controller offers robust waterproof protection (IP66) for outdoor and damp environments, long-range wireless control, and high power capacity. Its compatibility with a wide range of Miboxer accessories makes it a versatile choice for smart lighting systems. The PWM dimming provides flicker-free brightness adjustment, and the built-in protections safeguard your installation.

Suitable for

• Outdoor LED lighting installations (gardens, facades, signs)
• Indoor wet locations (bathrooms, kitchens, basements)
• Commercial lighting displays and architectural lighting
• Smart home lighting systems using Miboxer ecosystem

Key specifications

• Product Type: LED Controller
• Control Type: Single Color (Monochrome)
• Wireless Protocol: 2.4GHz RF
• Waterproof Rating: IP66
• Input/Output Voltage: DC 12V-24V
• Max Output Current: 10A
• Max Output Power: 120W (12V) / 240W (24V)
• Control Distance: Up to 30 meters
• Dimming Range: 0-100%
• Dimming Technology: PWM
• Number of Channels: 1
• Connection Type: Screw Terminals
• Housing Material: High-grade PC
• Operating Temperature: -20°C to 60°C
• Protection: Overload, Short Circuit

Recommendations

For optimal performance, use with Miboxer 2.4G remotes or gateways. Ensure power supply matches voltage requirements. Not suitable for RGB or addressable LEDs.
