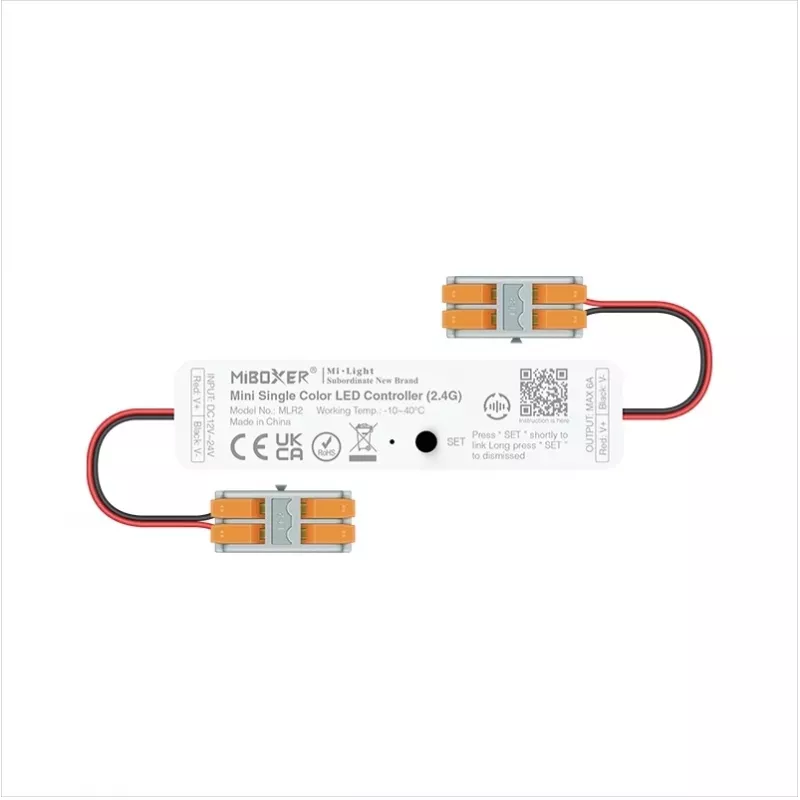

Miboxer LED Controller Mini Single Color 2.4G (MLR2)

Miboxer LED Controller Mini Single Color 2.4G (MLR2)
Miboxer LED Controller Mini Single Color 2.4G (MLR2)
R273
Imagine adjusting the brightness of your under-cabinet LED strips from across the room, without reaching for a wall switch. The Miboxer LED Controller Mini Single Color 2.4G (MLR2) makes this possible. This compact RF controller handles single-color LED strips or fixtures, letting you dim from 0 to ... Read More
Stock 100 Code 3329741 Brand MIBOXER Model MLR2 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Imagine adjusting the brightness of your under-cabinet LED strips from across the room, without reaching for a wall switch. The Miboxer LED Controller Mini Single Color 2.4G (MLR2) makes this possible. This compact RF controller handles single-color LED strips or fixtures, letting you dim from 0 to 100% with any Miboxer 2.4G remote or the WL-Box1 gateway. It runs on 12-24V DC, supports up to 6A, and delivers up to 144W at 24V. The 2.4GHz signal passes through walls and obstacles, giving you reliable control up to 30 meters away.

Key specifications

  • Control type: 2.4GHz RF wireless
  • Supported LED type: Single color (dimmable)
  • Input voltage: DC 12V-24V
  • Output voltage: DC 12V-24V
  • Max output current: 6A
  • Max output power: 72W at 12V, 144W at 24V
  • Control distance: up to 30 meters (98 feet)
  • Number of channels: 1
  • Dimming range: 0-100%
  • Connection type: screw terminals
  • Protection: overload and short circuit protection
  • Housing material: ABS plastic
  • Operating temperature: -20°C to 60°C
  • Compatibility: Miboxer 2.4G RF remotes and WL-Box1 gateway

Why choose it

The MLR2 offers reliable wireless dimming without complex wiring or line-of-sight. Its compact ABS housing fits easily into junction boxes or behind fixtures, while screw terminals ensure a secure connection. With a wide input voltage range and robust protection features, it is built to handle demanding installations. The 2.4GHz RF signal penetrates walls and obstacles, giving you flexible control from anywhere in the room.

Ideal use cases

  • Residential under-cabinet lighting and cove lighting
  • Retail display lighting that needs adjustable brightness
  • Hospitality settings where mood lighting is essential
  • DIY smart home projects using Miboxer remotes

Good to know

This controller works exclusively with Miboxer 2.4G RF remotes or the WL-Box1 gateway. It does not support Wi-Fi or Bluetooth directly. For advanced automation, pair it with the WL-Box1 to integrate with the Miboxer app. The screw terminal connections accept wire sizes from 0.5 to 2.5 mm². The unit is not waterproof, so install it in a dry, protected location.

Specifications
Brand
MIBOXER
Category
Smart Light Controller
Connectivity technology
Wireless
EAN
4038816232519
Input voltage
12-24 V
Model
MLR2
MPN
MLR2
Operating temperature (T-T)
-20 - 60 °C
Output voltage
12-24 V
Product colour
White
Protection class
III
Weight
1 kg
Wireless technology
RF Wireless
