Dimmer Shelly DALI Gen3 with 0–10V support, Shelly — wireless, 110–240V, black plastic

Shelly DALI Gen3 dimmer with 0–10V support is a compact wireless controller for indoor lighting. It accepts 110–240 V AC at 50 Hz, has a typical power consumption of about 2 W, and operates over a frequency range of 2401–2495 MHz. The unit fits small installations with a plastic black housing measuring 42 × 37 × 17 mm and an operating temperature range of −20 to 40 °C.

Advantages

The device provides wireless control via a mobile app and supports remote operation. It offers dimmable output with integrated support for DALI and 0–10V interfaces and is compatible with Amazon Alexa. Its compact plastic enclosure and low power consumption make it suitable for space-constrained indoor installations.

Suitable for

• Indoor residential lighting control
• Commercial indoor lighting installations
• Retrofit projects requiring DALI or 0–10V dimming
• Smart-home setups with Alexa integration

Key specifications

• Type: Dimmer with DALI and 0–10V support
• AC input voltage: 110–240 V
• AC input frequency: 50 Hz
• Power consumption (typical): 2 W
• Wireless operating frequency: 2401–2495 MHz
• Control type: Wireless, mobile app support
• Remote operation: Yes
• Dimmable: Yes
• Compatibility: Works with Amazon Alexa
• Housing material and colour: Black plastic
• Dimensions (W × H × D): 42 × 37 × 17 mm
• Weight: 18 g
• Operating temperature: −20 to 40 °C
• Operating relative humidity: 30–70%

How to use

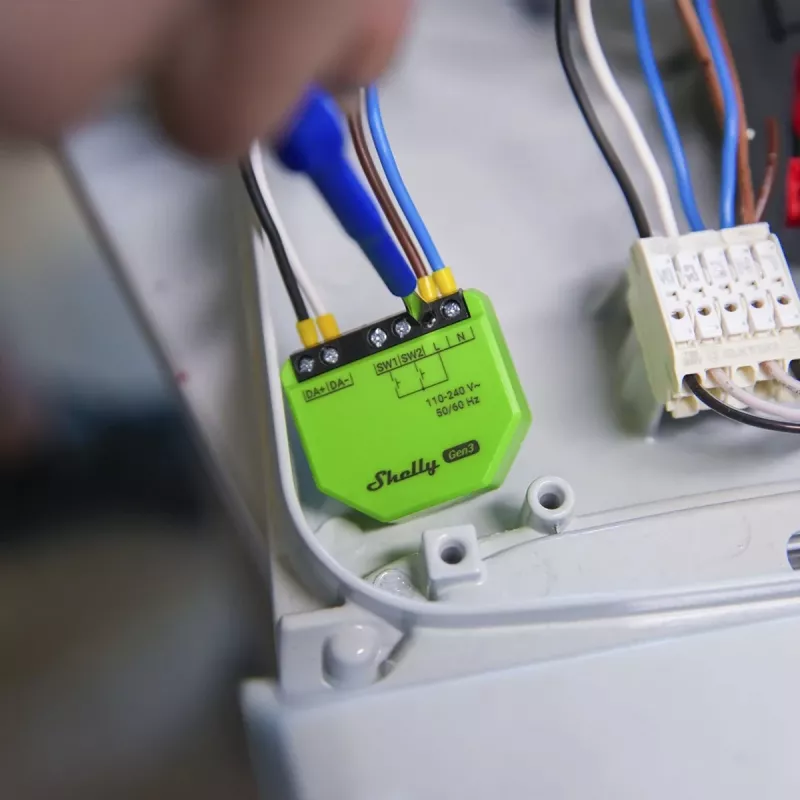

Mount the dimmer indoors in a suitable enclosure or behind fittings following local electrical regulations. Connect the AC supply (110–240 V, 50 Hz) and wiring for DALI or 0–10V dimming circuits according to the manufacturer's wiring diagrams. Install the mobile app to configure wireless settings and integrate the unit with a smart-home ecosystem such as Amazon Alexa. After setup, adjust brightness and scenes using the app or voice control.

Recommendations

Install and commission the device in dry indoor locations only, keep ambient temperature within the specified range, and ensure correct wiring by a qualified electrician. Use the official mobile app and firmware updates from the manufacturer to maintain compatibility and security.
