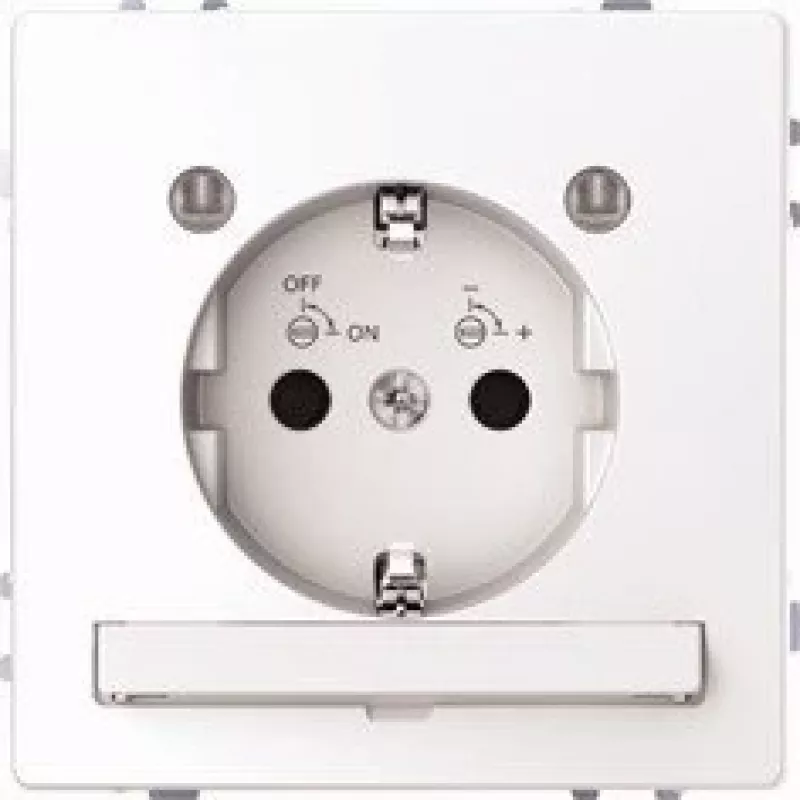

Merten SCHUKO Socket Outlet with Light Outlet and LED Lighting Module, Increased Touch Protection, Plug-in Terminals, Polar White MEG2304-6035

Finding a wall socket that also provides subtle orientation lighting without additional wiring can be a challenge. The Merten SCHUKO socket outlet with integrated LED lighting module solves this by combining a standard power outlet with a discreet light outlet, all in a single flush-mounted unit. The warm white LED illuminates the area around the socket, making it easy to locate in dark hallways, bedrooms, or children's rooms, while the increased touch protection ensures safety for the whole family.

Who is it for

This socket is ideal for homeowners, electricians, and interior designers looking for a safe and elegant solution for orientation lighting. It is particularly suited for use in bedrooms, hallways, staircases, and children's rooms where a subtle night light is desired without the need for separate lamps or complex wiring. The socket is compatible with the Merten System M range, allowing seamless integration with existing installations.

Main features

• Integrated LED lighting module with warm white light (0.5 W) for orientation
• Increased touch protection (child safety shutters) for enhanced safety
• SCHUKO (Type F) socket outlet, rated 16 A / 250 V AC
• Plug-in terminals (Steckklemmen) for quick and secure connection
• Flush-mounted design for a clean, modern look
• Made of break-proof, UV-resistant thermoplastic in polar white with glossy finish
• Halogen-free and VDE certified

Specifications

• Socket type: SCHUKO (Type F)
• Number of sockets: 1
• Rated voltage: 250 V AC
• Rated current: 16 A
• LED light colour: Warm white
• LED power consumption: 0.5 W
• Degree of protection: IP20
• Terminal capacity: Up to 2 x 2.5 mm² rigid conductors
• Installation depth: Approx. 32 mm
• Material: Thermoplastic (PC)
• Colour: Polar white
• Surface finish: Glossy
• Halogen-free: Yes
• Certifications: VDE
• Application area: Indoor
• Compatibility: Merten System M (cover frame not included)

Tips

For a complete installation, pair this socket with a suitable cover frame from the Merten System M range. The LED module is energy-efficient and maintenance-free, providing a soft glow for years. Always ensure the power is switched off before installation and consult a qualified electrician if needed.
