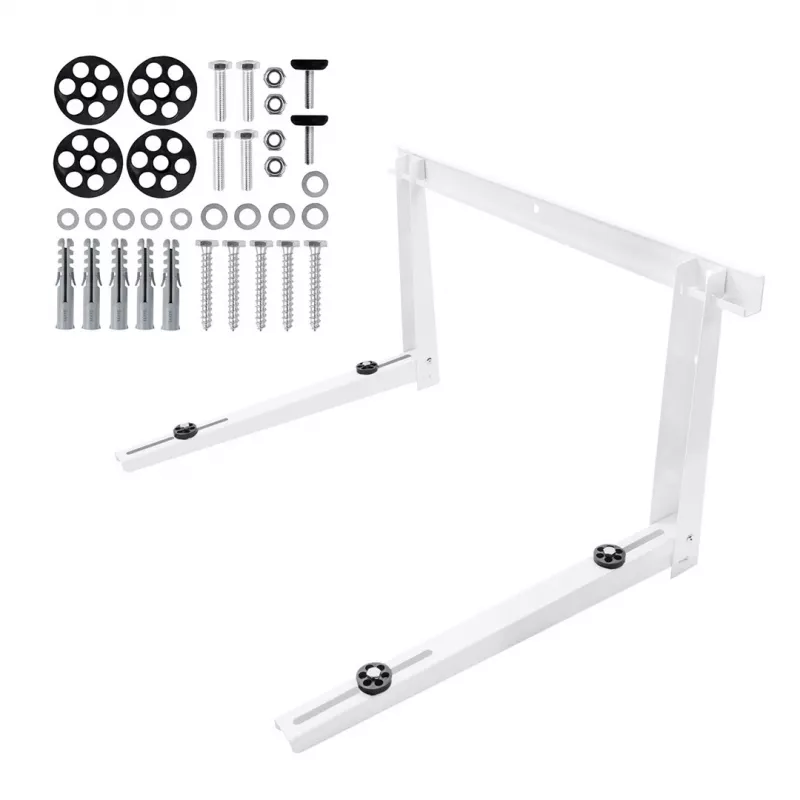

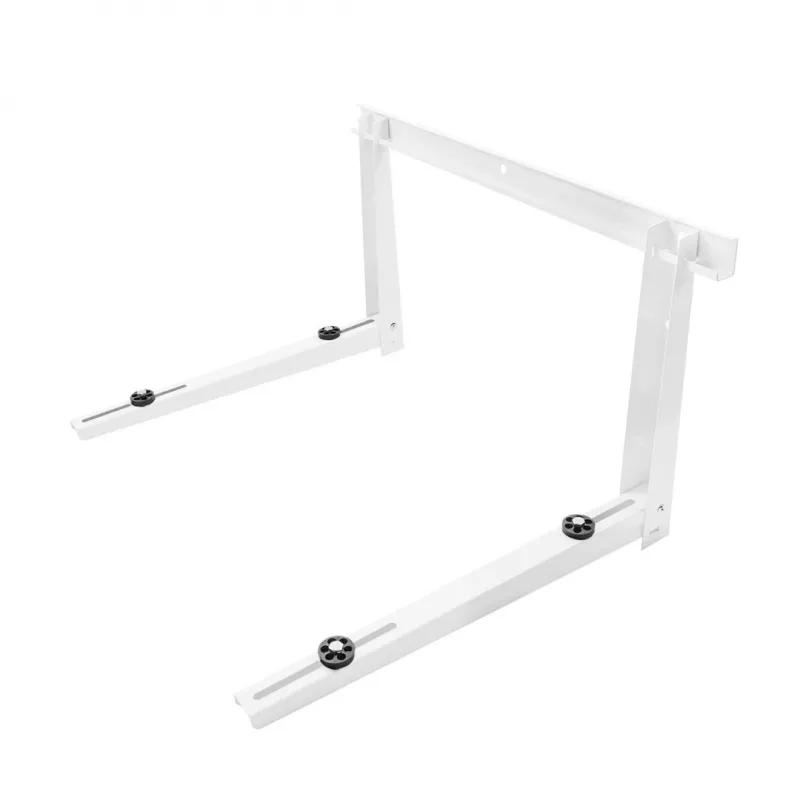

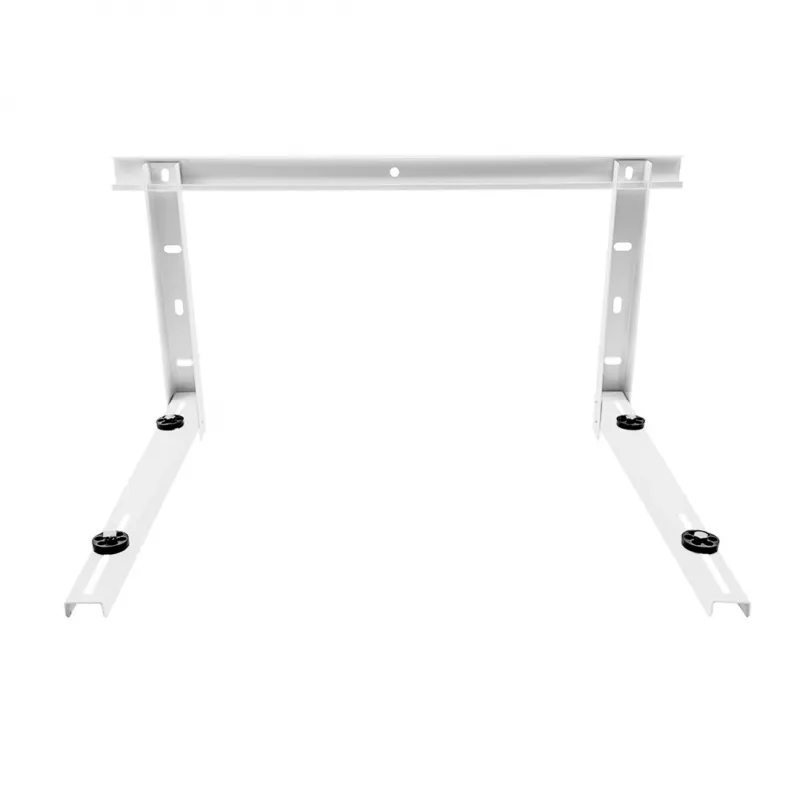

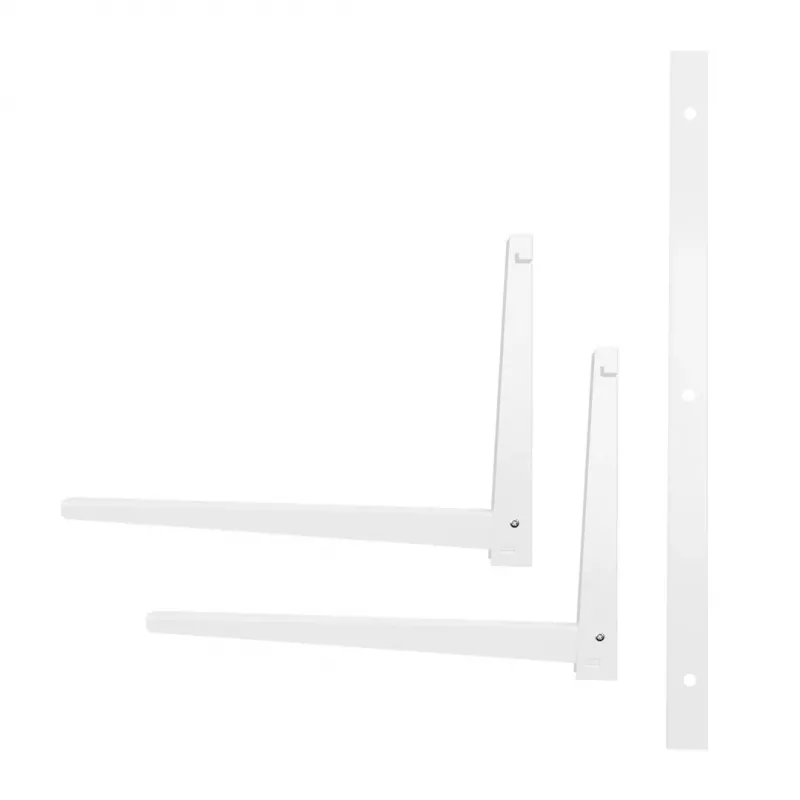

MCN Maclean MC-147 Air Conditioner/Heat Pump Wall Mount Bracket, 800x420x600 mm, Galvanized Steel, 260 kg

Engineered to support up to 260 kg, the MCN Maclean MC-147 wall mount bracket provides a rock-solid, corrosion-resistant foundation for outdoor air conditioner and heat pump units. Its generous 800 x 420 x 600 mm dimensions and galvanized steel construction ensure lasting performance in any weather.

Overview

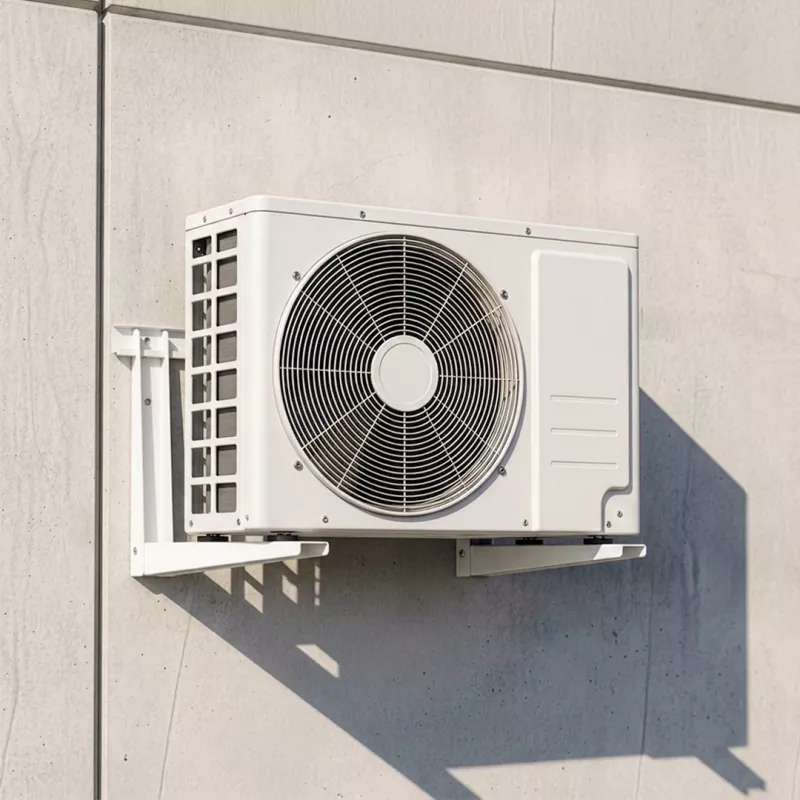

The MCN Maclean MC-147 is a heavy-duty wall mounting bracket designed for universal compatibility with outdoor air conditioner and heat pump units. Constructed from galvanized steel, it offers excellent corrosion protection and weather resistance, making it suitable for long-term outdoor installation. The bracket features two support arms and a bolt-on installation method, ideal for concrete, brick, or solid masonry walls.

What stands out

• High load capacity of 260 kg for secure mounting of heavy units
• Galvanized steel finish for superior corrosion resistance
• Universal design fits most outdoor AC and heat pump units within specified limits
• Generous dimensions (800 mm width, 420 mm projection, 600 mm height) provide ample support
• Weather-resistant construction for reliable outdoor use

Technical details

• Type: Wall mount bracket
• Application: Outdoor air conditioner unit, outdoor heat pump unit
• Material: Galvanized steel
• Maximum load capacity: 260 kg
• Mounting type: Wall mount
• Bracket arm depth (projection from wall): 420 mm
• Bracket height: 600 mm
• Bracket width (horizontal span): 800 mm
• Corrosion protection: Galvanized
• Weather resistance: Yes
• Finish: Galvanized
• Colour: Metallic silver
• Suitable for outdoor use: Yes
• Number of support arms: 2
• Installation method: Bolt-on (to wall)
• Recommended wall type: Concrete, brick, solid masonry
• Mounting hardware included: No
• Unit compatibility: Universal (for units within specified weight and size limits)

Our verdict

The MCN Maclean MC-147 is a robust and reliable choice for securely mounting outdoor air conditioning and heat pump units. Its galvanized steel build and high load capacity make it a durable solution for both residential and commercial installations.
