Air conditioner support bracket InLine white 775mm 400mm 365mm

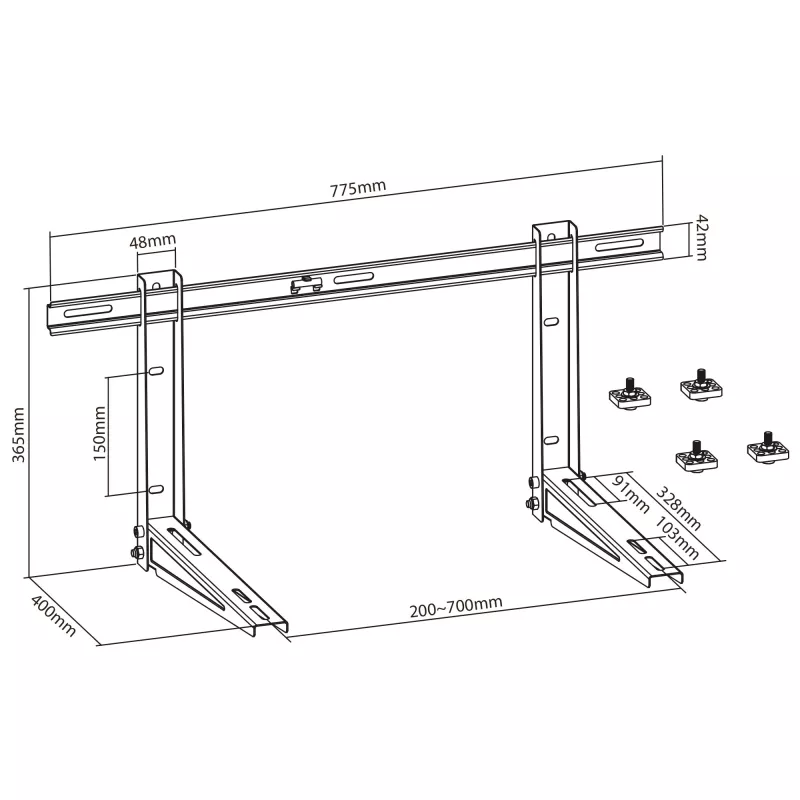

The InLine air conditioner support bracket is a heavy-duty white steel wall mount designed for outdoor units and small heat pumps. With a powder-coated finish and dimensions of 775 mm width, 400 mm depth and 365 mm height, it provides a durable and weather-resistant platform for secure placement of outdoor air conditioning equipment. The bracket supports loads up to 140 kg and includes features to simplify installation and long-term stability.

Advantages

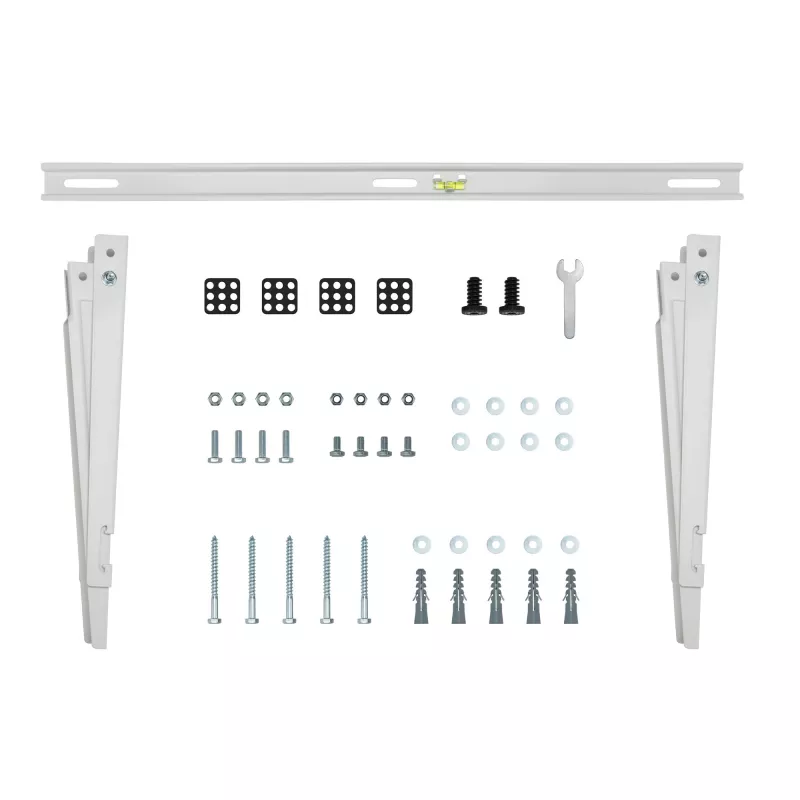

Constructed from robust steel with a powder-coated surface, the InLine bracket resists corrosion and offers prolonged service life. Adjustable width and a high load capacity of up to 140 kg give flexibility for various outdoor units and small heat pumps. Anti-vibration pads reduce noise and vibration transmission to the wall, and the integrated spirit level facilitates precise horizontal alignment during installation.

Suitable for

Key specifications

How to use

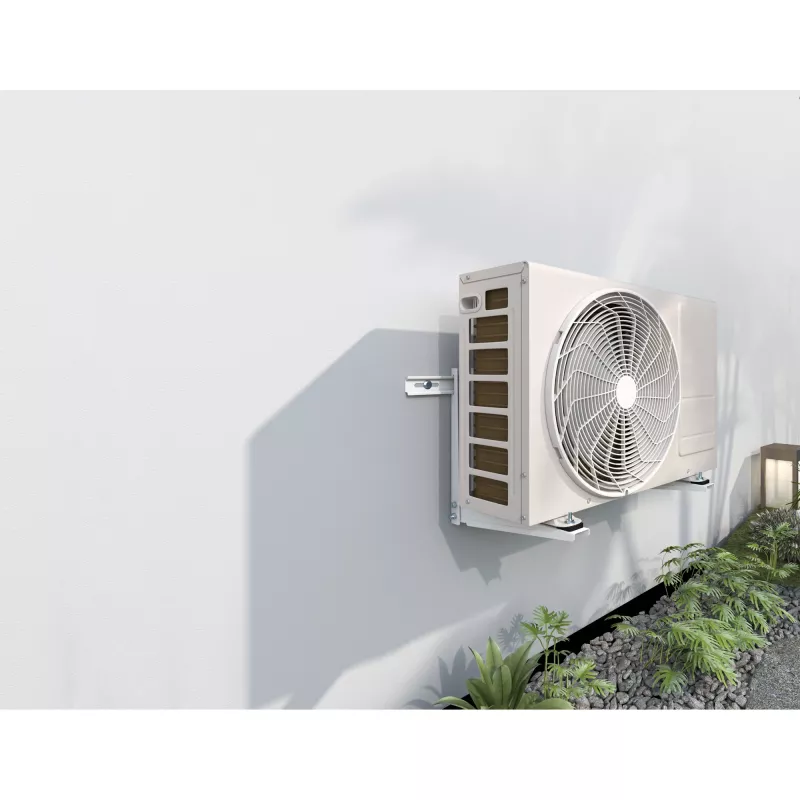

Position the bracket on a suitable exterior wall and mark fixing points using the integrated spirit level to ensure horizontal alignment. Secure the bracket to the wall with appropriate anchors and fasteners for the wall material and expected load. Place the outdoor unit on the bracket, adjust the bracket width if necessary to fit the unit base, and fit anti-vibration pads between the unit and bracket to minimize noise and vibration. Verify all fastenings and the unit level before finalising the installation.

Recommendations

Use wall anchors and fixings rated for the local wall substrate and the bracket’s 140 kg maximum load. Ensure installation complies with local electrical and building codes and, where appropriate, hire a qualified installer for heavy units or complex installations.
