MAKERA Carvera Air 4-Axis Rotary Module

Unlock full rotary machining on your Carvera Air with a 360° continuous A-axis, 1:6 drive ratio, and ±0.05° indexing precision. This module transforms your desktop CNC into a 4-axis powerhouse for cylindrical engraving, 3D contouring, and complex rotary work.

Overview

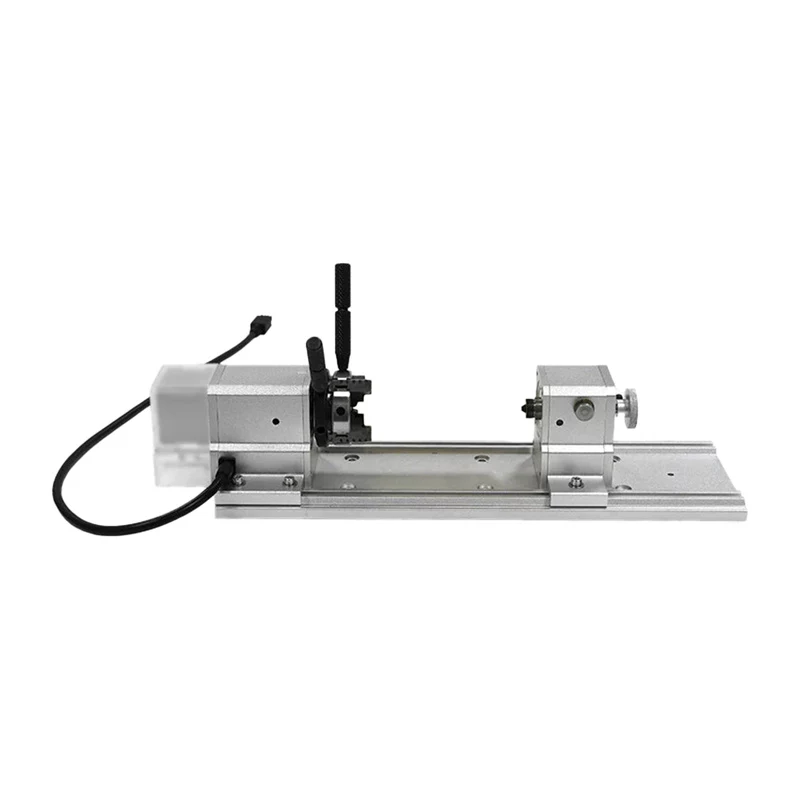

The MAKERA Carvera Air 4-Axis Module adds a rotational A-axis to your Carvera Air desktop CNC machine, enabling true 4-axis machining. Designed for seamless integration, it features a high-precision stepper motor with a 1:6 drive ratio, delivering exceptional torque and accuracy. The 3-jaw self-centering chuck (65 mm diameter) and included live center tailstock securely hold workpieces up to 60 mm in diameter and 200 mm in length. Constructed from anodized aluminum alloy, the module is both durable and lightweight, with a quick-release mounting system for fast installation. Powered directly by the Carvera Air through a dedicated port, it integrates effortlessly with Carvera Studio software for smooth control and workflow.

What stands out

• 360° continuous rotation for unrestricted rotary machining
• High-precision stepper motor with 1:6 drive ratio for superior torque
• ±0.05° indexing precision ensures repeatable accuracy
• 3-jaw self-centering chuck and live center tailstock for secure workholding
• Quick-release mounting system for rapid setup and removal
• Anodized aluminum alloy construction for durability and corrosion resistance
• Seamless integration with Carvera Studio software and dedicated power port

Technical details

• Compatibility: MAKERA Carvera Air Desktop CNC Machine
• Axis Type: Rotational A-axis
• Rotation Range: 360° continuous
• Chuck Type: 3-Jaw Self-Centering Chuck
• Chuck Diameter: 65 mm
• Tailstock: Included, Live Center
• Drive System: High-Precision Stepper Motor
• Drive Ratio: 1:6
• Indexing Precision: ±0.05°
• Max Workpiece Diameter: 60 mm (approx.)
• Max Workpiece Length: 200 mm (approx., with tailstock)
• Material Construction: Anodized Aluminum Alloy
• Control Integration: Seamless with Carvera Studio software
• Connectivity: Dedicated port on Carvera Air
• Application: Rotary engraving, cylindrical milling, 3D contouring
• Installation: Quick-release mounting system
• Power Source: Powered directly by Carvera Air

Our verdict

For Carvera Air owners seeking to expand their machining capabilities, the 4-Axis Module is an essential upgrade. Its precision, robust construction, and effortless integration make it a top choice for tackling rotary projects with confidence.
