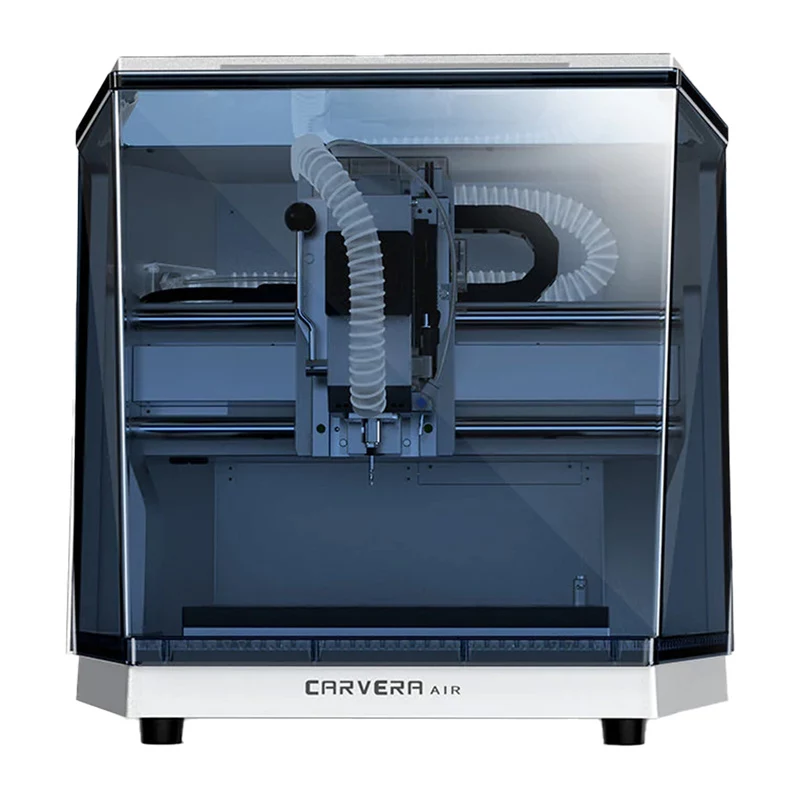

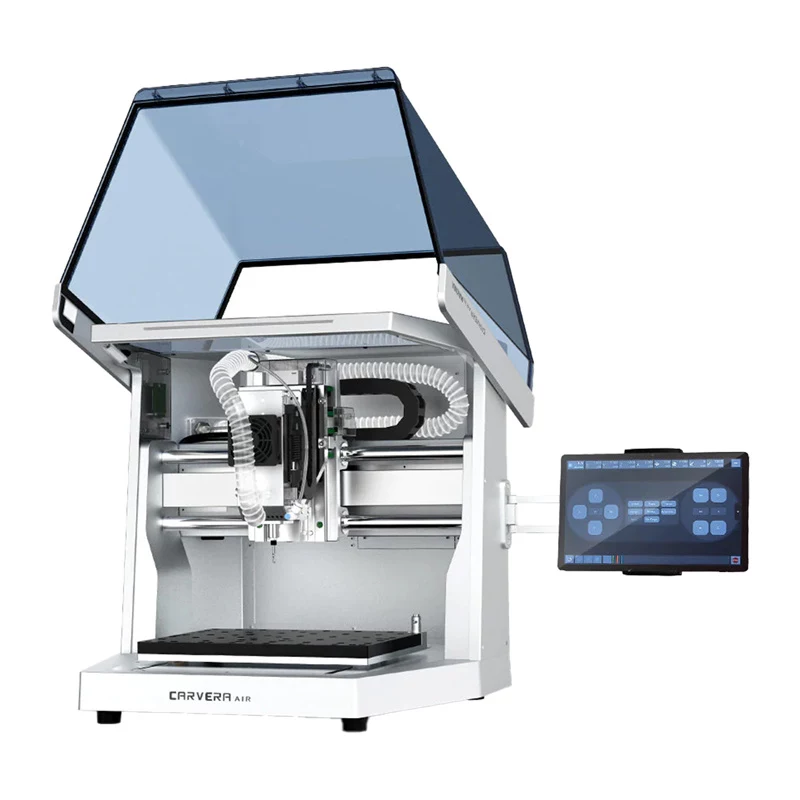

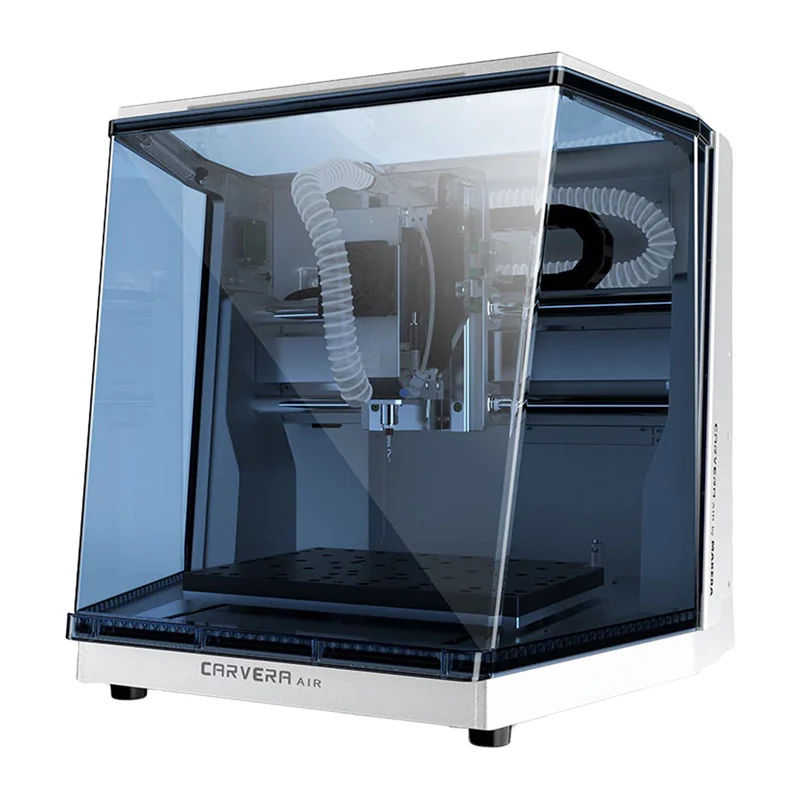

MAKERA AirDesCNC Carvera Air Desktop CNC Router, 3-Axis 400W Brushless Spindle, 200x200x100mm Working Area, Fully Enclosed, Wi-Fi & USB-C

The MAKERA AirDesCNC Carvera Air is a fully enclosed desktop CNC router that delivers professional-grade precision for prototyping and small-scale production. Its 400W brushless spindle spins up to 24,000 RPM, effortlessly cutting wood, plastics, soft metals, and even PCB boards with a positioning accuracy of 0.02 mm.

Advantages

Built on a rigid aluminum frame with ball screws and linear guide rails, the Carvera Air ensures smooth, backlash-free motion across its 200 x 200 x 100 mm work area. The integrated dust collection port and low-noise enclosure keep your workspace clean and quiet. Wi-Fi and USB-C connectivity, along with the intuitive Carvera Studio software, make setup and operation straightforward for both beginners and experienced machinists.

Suitable for

• Rapid prototyping of mechanical parts
• PCB milling and drilling
• Engraving and sign making
• Jewelry and mold making
• Educational STEM projects

Key specifications

• Working area: 200 x 200 x 100 mm (X/Y/Z)
• Spindle: 400W brushless DC, 10,000 – 24,000 RPM
• Collet: ER11
• Positioning accuracy: 0.02 mm; repeatability: 0.01 mm
• Max travel speed: 3000 mm/min
• Connectivity: Wi-Fi, USB-C
• Control software: Carvera Studio (G-code compatible)
• Compatible materials: wood, plastics, aluminum, brass, copper, PCB, carbon fiber, wax, foam
• Enclosure: fully enclosed with dust collection port
• Input voltage: 100-240V AC, 50/60Hz
• Noise level: < 60 dB
• Frame material: aluminum alloy
• OS compatibility: Windows, macOS

Recommendations

Pair the Carvera Air with a 4th axis rotary module (sold separately) to unlock cylindrical machining. Use the included ER11 collet set for quick tool changes and maintain accuracy with regular calibration.
