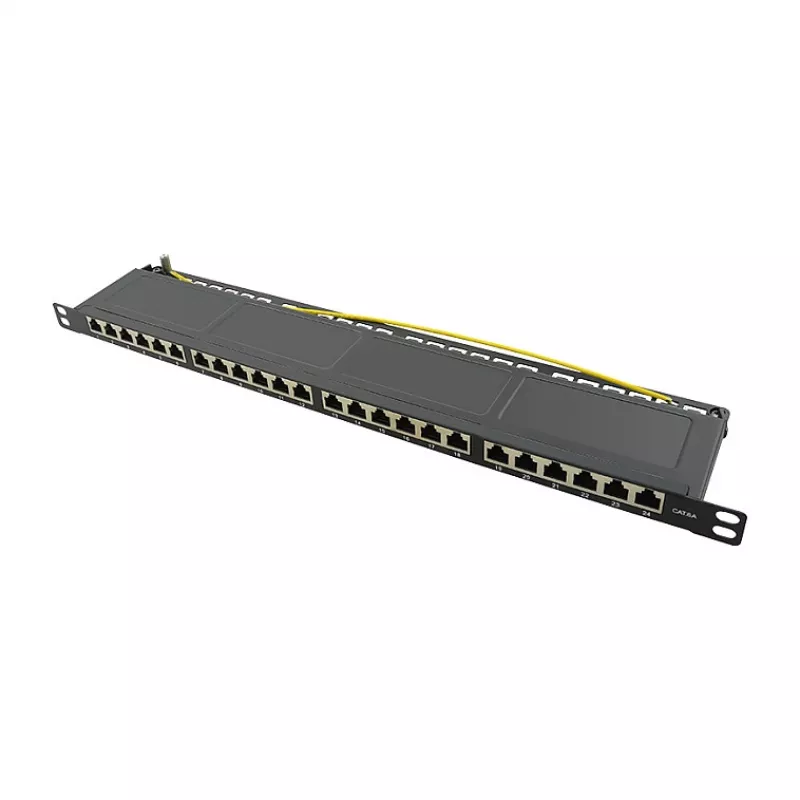

Logilink NP0063 24-Port Cat6A STP Patch Panel 19 inch 0.5U Black

Harness the power of a high-density, shielded networking solution with the Logilink NP0063. This 24-port Cat6A patch panel delivers exceptional performance for your 19-inch rack, offering up to 500 MHz bandwidth to support bandwidth-intensive applications and future-proof your cabling infrastructure.

Overview

The Logilink NP0063 is a robust patch panel designed for professional network installations. Its 0.5U form factor allows for efficient rack space utilization while accommodating 24 ports. The Cat6A standard ensures you can run 10Gbps Ethernet over copper with ease, and the full STP shielding (Shielded Twisted Pair) provides reliable protection against electromagnetic interference, guaranteeing stable and fast data transmission in demanding environments.

What stands out

• 24-port Cat6A (Class EA) network patch panel ideal for structured cabling in enterprises, data centers, and server rooms.
• Ultra-compact 0.5U height saves valuable rack space.
• Full STP shielding and integrated grounding wire minimize crosstalk and EMI, ensuring signal integrity.
• Tool-less LSA+ (IDC) termination on the rear simplifies cable installation and maintenance.
• Gold-plated contacts (50µ) provide reliable, corrosion-resistant connections for long service life.
• Compatible with PoE, including IEEE 802.3af, 802.3at, and 802.3bt, allowing power injection over the same cabling.

Technical details

• Rack size: 19 inches
• Rack units: 0.5U
• Number of ports: 24
• Category: Cat.6A (Class EA)
• Shielding type: STP
• Color: Black
• Frequency range: Up to 500 MHz
• Wiring standard: TIA/EIA 568 A & B
• Termination type: LSA+ (IDC)
• Contact plating: Gold plated (50µ)
• Housing material: Steel
• PoE support: Yes (IEEE 802.3af/at/bt)
• Integrated grounding wire
• Rack mount
• Certifications: RoHS, REACH, CE
• Operating temperature: -10°C to +60°C
• Storage temperature: -40°C to +70°C
• Humidity: 10% to 90% RH (non-condensing)

Our verdict

For network administrators seeking a reliable, high-performance patching solution, the Logilink NP0063 delivers in spades. Its shielded construction and Cat6A capabilities ensure it can handle current and future network demands, while the slim 0.5U design and tool-less termination make it a pleasure to install. If you need a robust, certified patch panel without unnecessary bulk, this is the one to choose.
