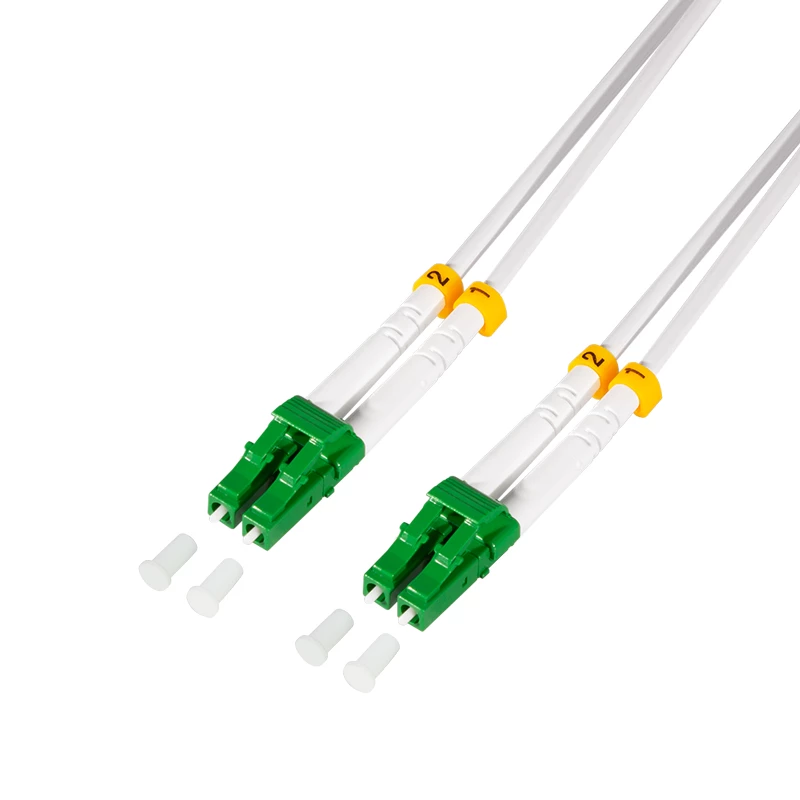

LogiLink FC0LC01 Fiber Optic Patch Cable, LC/APC to LC/APC, Single-mode OS2, 1 m, White

The LogiLink FC0LC01 is a high-quality fiber optic patch cable designed for reliable data transmission in telecommunication networks, data centers, FTTH, and LAN applications. Featuring LC/APC connectors on both ends, this single-mode OS2 cable ensures low insertion loss and high return loss, making it ideal for high-speed and long-distance connections.

Advantages

With a maximum insertion loss of only 0.3 dB and a minimum return loss of 60 dB, the FC0LC01 delivers excellent signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides safety in enclosed spaces, while the zirconia ceramic ferrule ensures durability and precise alignment.

Suitable for

• Data centers requiring high-density cabling
• Telecommunication networks
• FTTH (Fiber to the Home) installations
• Local Area Networks (LAN)

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Connector Type A: LC/APC
• Connector Type B: LC/APC
• Fiber Mode: Single-mode (OS2)
• Fiber Core/Cladding Diameter: 9/125 µm
• Cable Length: 1 m
• Cable Color: White
• Cable Structure: Simplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Polishing Type: APC (Angled Physical Contact)
• Insertion Loss (max.): 0.3 dB
• Return Loss (min.): 60 dB
• Operating Wavelengths: 1310 nm, 1550 nm
• Operating Temperature: -20°C to 70°C
• Ferrule Material: Zirconia Ceramic
• Cable Diameter: 2.0 mm
• Standards Compliance: IEC 61754-20, TIA/EIA 604-10, RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard LC/APC interfaces.
