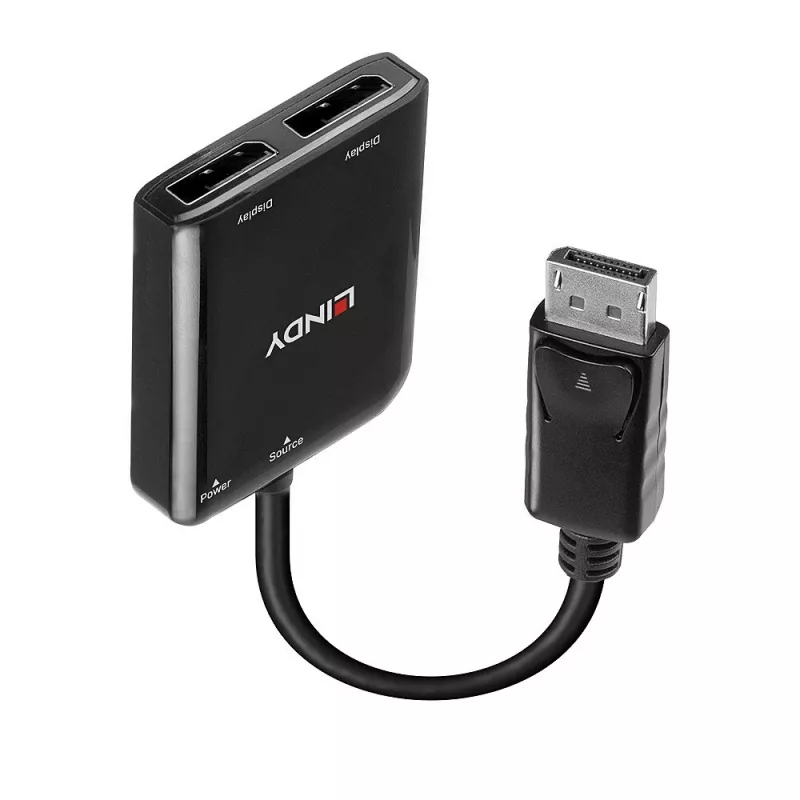

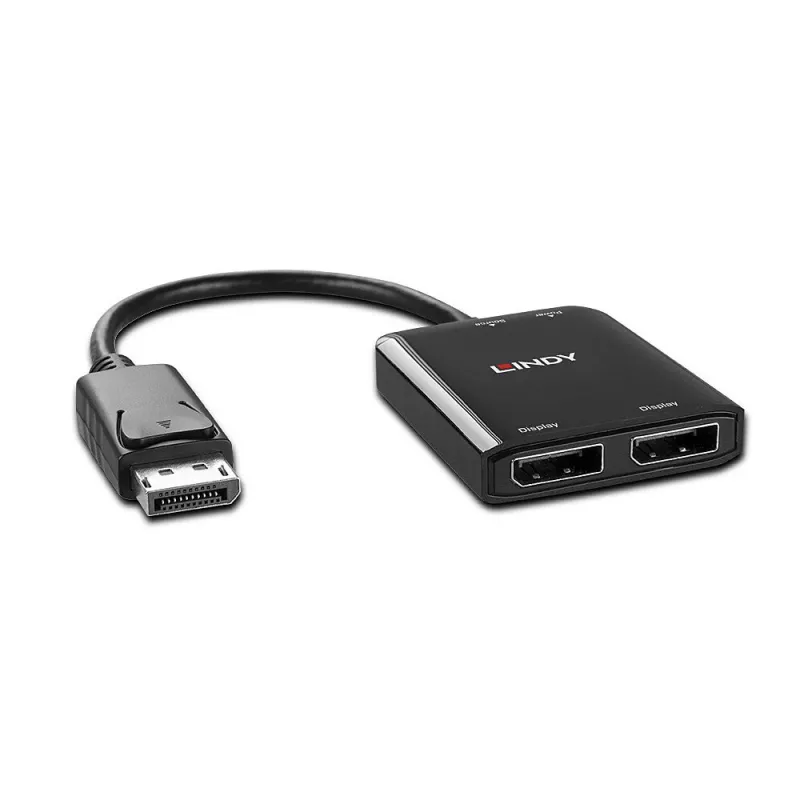

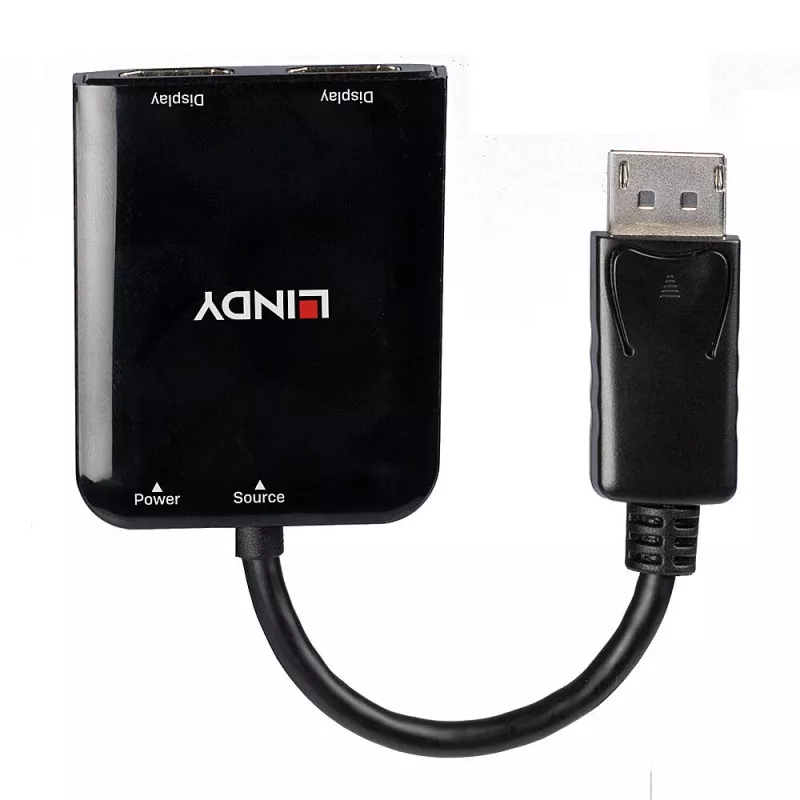

Lindy 38430 interface hub DisplayPort 21600 Mbit/s Black

The Lindy 2 Port DP MST Hub (Interface Hub DisplayPort Lindy 38430) expands a single DisplayPort source to two DisplayPort monitors. It supports DisplayPort host and hub interfaces, a maximum resolution of 3840 x 2160 at 30 Hz with 4:4:4 8-bit colour, and is powered via USB (5 V, 0.5 A). The compact black hub (254 × 10 × 49 mm, 0.055 kg) allows both extended and mirrored multi-display configurations for productivity, signage or immersive layouts.

Advantages

The hub enables easy connection of one DisplayPort-equipped device—such as a desktop PC, laptop or notebook—to two separate DP displays without complex configuration. It supports high-resolution output up to 4K UHD (3840×2160@30Hz) with full 4:4:4 colour sampling for accurate image reproduction. The device is compact and USB-powered, simplifying installation in office, retail or home setups while maintaining compatibility with a range of graphics cards, including AMD Eyefinity.

Suitable for

• Extending a desktop across two monitors for spreadsheets and productivity
• Mirroring content on two screens for retail or hospitality displays
• Multi-tasking setups for laptops and notebooks
• Digital signage and panoramic or immersive visual layouts

Key specifications

• Model: Lindy 38430 (Interface Hub DisplayPort Lindy 38430)
• Connector: DisplayPort host input and 2 × DisplayPort outputs (MST hub)
• Maximum resolution: 3840 × 2160 @ 30 Hz, 4:4:4, 8-bit
• Data rate: up to 21600 Mbit/s
• Power: USB powered, 5 V ⎓ 0.5 A
• Colour: Black
• Dimensions: 254 mm × 10 mm × 49 mm
• Weight: 0.055 kg
• Pack quantity: 1

How to use

Connect the DisplayPort output of your source device to the hub's DisplayPort host input. Attach up to two DisplayPort monitors to the hub outputs. Power the hub using the supplied USB power source (5 V, 0.5 A). Configure display settings on the source device to choose extended or mirrored mode; the MST hub will present the two displays either as a single extended desktop or as duplicated screens depending on the graphics card and OS settings.

Recommendations

For optimal results, use high-quality DisplayPort cables and ensure the source graphics card supports MST or multi-display output. When using 4K@30Hz settings, confirm the connected displays and cables support the required bandwidth. If using complex multi-monitor arrangements, check compatibility with the GPU (for example, AMD Eyefinity) and update graphics drivers if necessary.
