CLUB3D Multi Stream Transport Hub DisplayPort 1.2 to HDMI Dual Monitor

CLUB3D Multi Stream Transport Hub DisplayPort 1.2 to HDMI Dual Monitor
CLUB3D Multi Stream Transport Hub DisplayPort 1.2 to HDMI Dual Monitor
CLUB3D Multi Stream Transport Hub DisplayPort 1.2 to HDMI Dual Monitor
CLUB3D Multi Stream Transport Hub DisplayPort 1.2 to HDMI Dual Monitor
CLUB3D Multi Stream Transport Hub DisplayPort 1.2 to HDMI Dual Monitor
CLUB3D Multi Stream Transport Hub DisplayPort 1.2 to HDMI Dual Monitor
CLUB3D Multi Stream Transport Hub DisplayPort 1.2 to HDMI Dual Monitor
CLUB3D Multi Stream Transport Hub DisplayPort 1.2 to HDMI Dual Monitor
CLUB3D Multi Stream Transport Hub DisplayPort 1.2 to HDMI Dual Monitor
CLUB3D Multi Stream Transport Hub DisplayPort 1.2 to HDMI Dual Monitor
R1,223
The Multi Stream Transport Hub CLUB3D CSV-6200H uses DisplayPort 1.2 Multi Stream Transport (MST) technology to send multiple independent uncompressed video and audio streams over a single DisplayPort cable. The hub accepts one DisplayPort 1.2 input and distributes video to two HDMI displays, enabli... Read More
Stock 2 Code 2411546 Brand CLUB 3D Model CSV-6200H Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

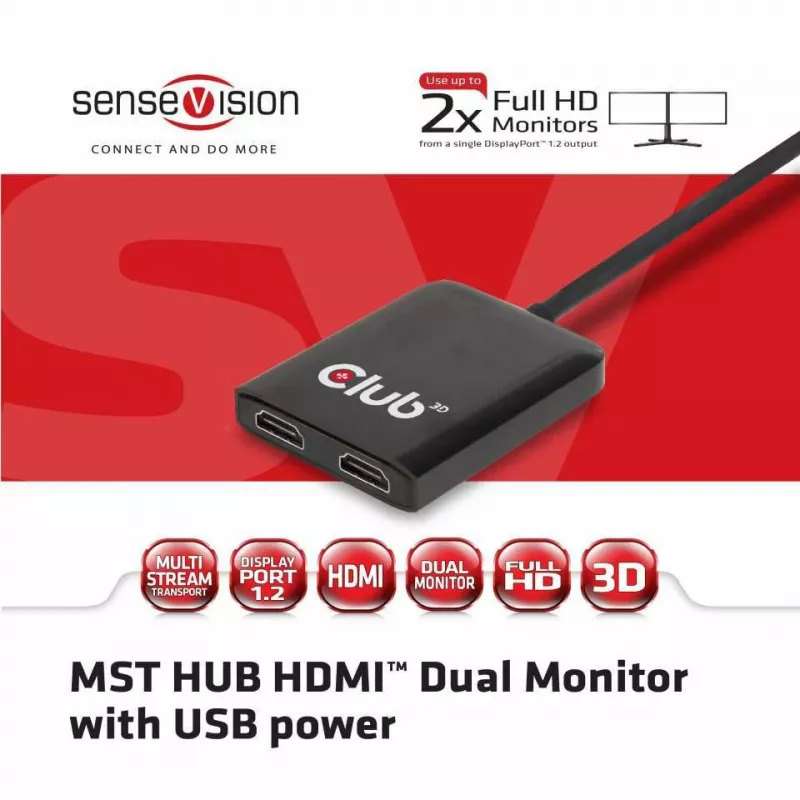

The Multi Stream Transport Hub CLUB3D CSV-6200H uses DisplayPort 1.2 Multi Stream Transport (MST) technology to send multiple independent uncompressed video and audio streams over a single DisplayPort cable. The hub accepts one DisplayPort 1.2 input and distributes video to two HDMI displays, enabling a dual-monitor setup without additional drivers. The device is plug-and-play; when connected to a DisplayPort 1.1 source it functions as a splitter and mirrors the same image across all outputs. Compact and lightweight, the CSV-6200H supports high-resolution displays and is suitable for productivity and multitasking environments.

Advantages

The CSV-6200H enables two HDMI monitors from one DisplayPort 1.2 output using MST, preserving independent video streams where supported. It supports protected content and high-performance applications while remaining driver-free and plug-and-play. The hub is compact and lightweight for easy transport and connects directly to HDMI screens without additional converters.

Suitable for

Key specifications

How to use

Connect the hub's DisplayPort input to the source device's DisplayPort 1.2 output using a suitable DisplayPort cable. Attach up to two HDMI displays to the hub's HDMI outputs. Power the hub using the specified 5 V/2 A supply if required by your configuration. The hub will distribute independent video streams when used with a DisplayPort 1.2 source; with a DisplayPort 1.1 source the hub will mirror the same image to both HDMI outputs. No driver installation is necessary; the system should detect the displays automatically.

Recommendations

For optimal results, use a DisplayPort 1.2-capable source and HDMI displays that support the required resolutions. Check your source GPU’s total DisplayPort bandwidth and each display’s supported resolution and refresh rate to ensure desired performance. When using high resolutions (for example 3840 × 2160), verify cable quality and display settings to achieve stable output.
Key Highlights
  • Extending desktop across two HDMI monitors for multitasking
  • Connecting dual HDMI displays to laptops or desktops with DisplayPort 1.2
  • Office productivity, data analysis and coding setups requiring more screen area
  • Presentations where two screens are required from a single DisplayPort output
  • Input: DisplayPort 1.2
  • Outputs: 2 × HDMI
  • Maximum supported resolution: up to 3840 × 2160 (depending on source and display capabilities)
  • Power: 5 V input, 2 A current
  • Dimensions: 244 × 49 × 11 mm
  • Weight: 0.054 kg
  • Colour: Black
  • Plug & Play — no driver required
Specifications
AC input voltage
5 V
Cable length
0.2 m
Cables included
Micro-USB
Certification
EMI CA, FCC, ROHs, WEEE
Connection to system unit
DisplayPort 1.2
DC-in jack
Yes
Dimensions (WxDxH)
244 x 49 x 11 mm
Easy to install
Yes
Harmonized System (HS) code
8473 3020
HD-Ready
Yes
HDCP
Yes
HDMI version
1.4
Input current
2 A
Maximum resolution
3840 x 2160 pixels
Package depth
18 mm
Package length
24 cm
Package type
Polybag
Package weight
9 g
Package width
160 mm
Packaging content

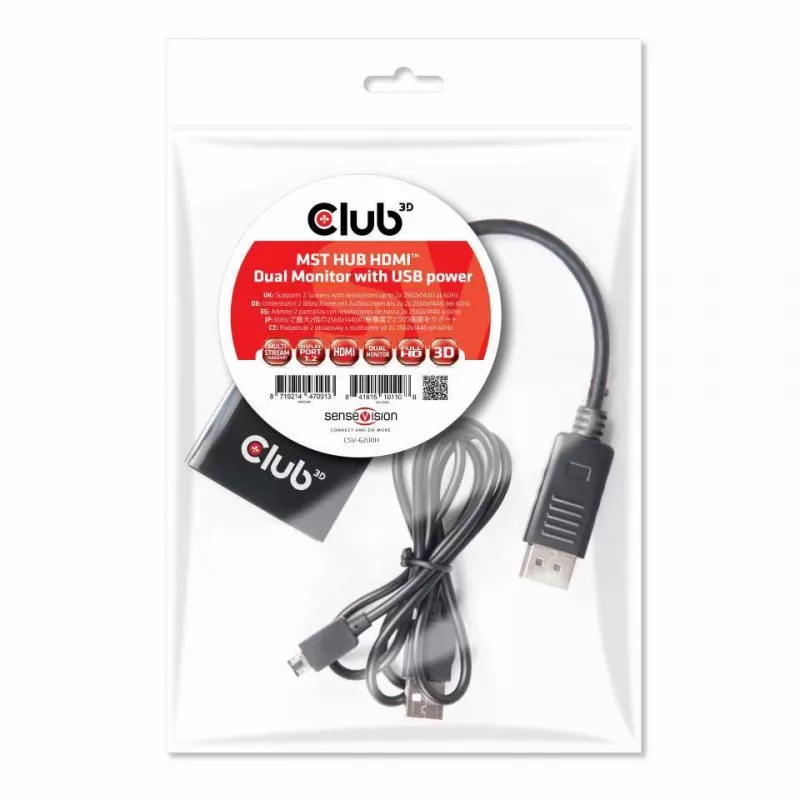

-Multi Stream Transport (MST) Hub DisplayPort 1.2 to HDMI™ Dual Monitor -USB to Micro USB Cable for power -Quick Installation Guide
Paper/cardboard packaging weight
0 g
Plastic packaging weight
11 g
Plug and Play
Yes
Product colour
Black
Products per master (outer) case
5 pc(s)
Quantity per pack
1 pc(s)
Technical features

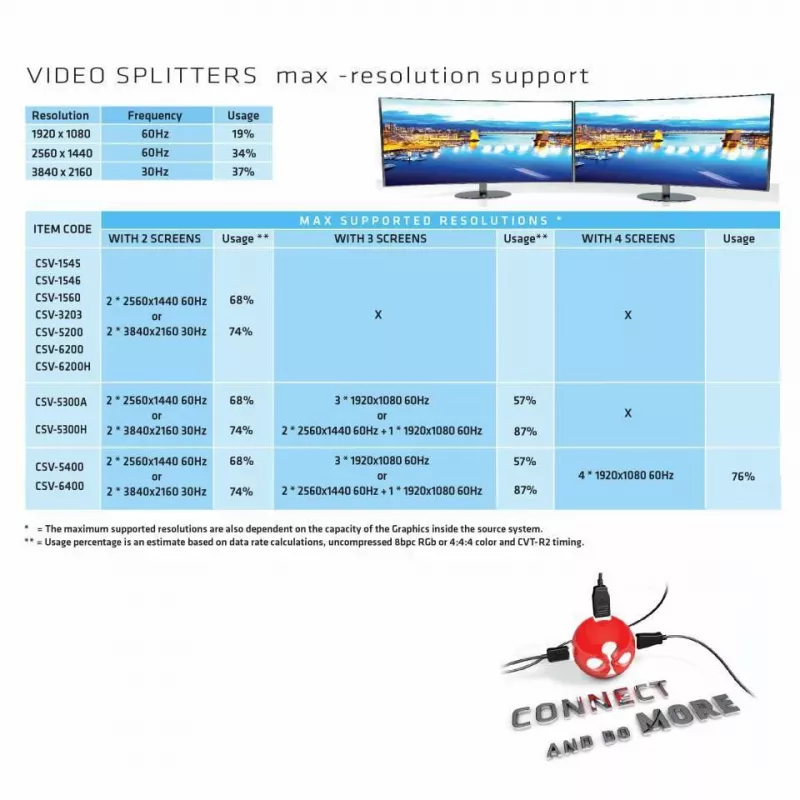

Resolution Support up to 2 x 3840 x 2160 at 30Hz or 2 x 2560 x1600 at 60Hz
Total paper/cardboard packaging weight
0 g
Total plastic packaging weight
22 g
USB powered
Yes
User guide
Yes
Video in
DisplayPort 1.2
Video out
2x HDMI
Video port type
HDMI
Video ports quantity
2
Weight
54 g
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
