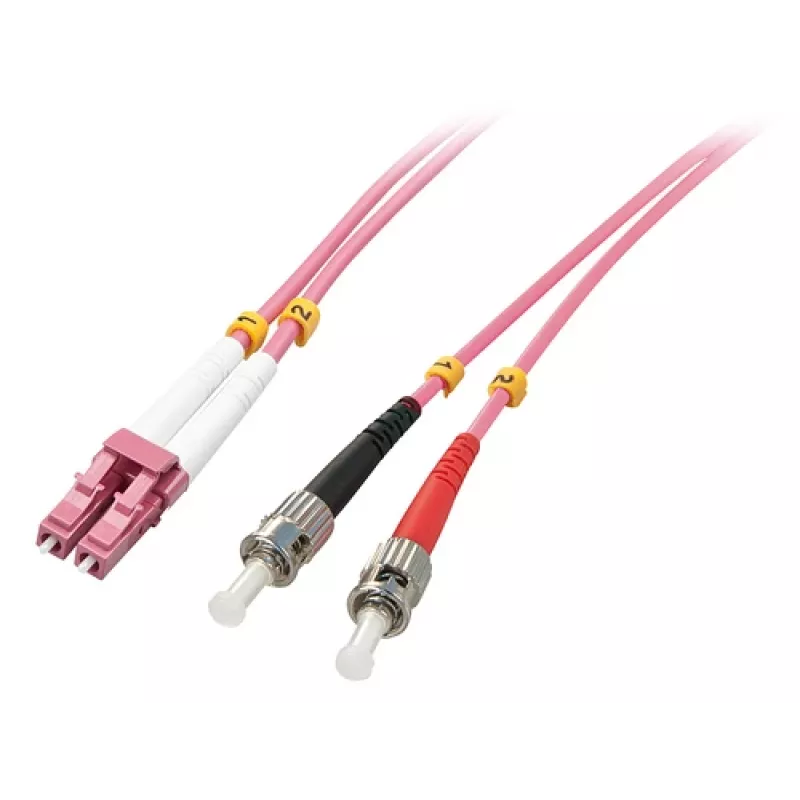

LINDY 15m LC to ST OM4 Multimode Duplex Fiber Patch Cable, LSZH, Violet 46355

With a bandwidth of 4700 MHz·km at 850nm, this LINDY OM4 fiber patch cable delivers exceptional performance for high-speed data networks, SANs, and LANs. The 15-meter duplex cable features LC to ST connectors, a 50/125µm core, and a violet LSZH jacket for safety and durability.

Overview

Engineered for reliability, this multimode fiber optic patch cable ensures low insertion loss (<0.3 dB per connector) and high return loss (>30 dB), making it ideal for demanding applications. The OM4 classification supports 10G, 40G, and 100G Ethernet over longer distances, future-proofing your network infrastructure.

What stands out

• OM4 multimode fiber with 50/125µm core/cladding for high bandwidth
• LC male to ST male connectors, duplex configuration
• LSZH (Low Smoke Zero Halogen) violet jacket for safety in enclosed spaces
• 15-meter length for flexible deployment in data centers or enterprise networks
• Compliant with RoHS and REACH standards

Technical details

• Connector A: LC Male
• Connector B: ST Male
• Cable Type: Fiber Optic Patch Cable, Duplex
• Fiber Type: Multimode OM4, 50/125µm
• Insertion Loss: < 0.3 dB per connector
• Return Loss: > 30 dB
• Bandwidth: 4700 MHz·km @ 850nm, 500 MHz·km @ 1300nm
• Operating Temperature: -20°C to 70°C
• Jacket Material: LSZH, Violet
• Length: 15 m

Our verdict

A high-performance OM4 patch cable that combines low loss, high bandwidth, and halogen-free safety—perfect for modern high-speed network environments.
