LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W

LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W
LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W
LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W
LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W
LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W
LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W
LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W
LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W
LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W
LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W
LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W
LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W
R20,797
The LevelOne FGP-3400 series are unmanaged PoE switches with 32 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 250/380/500/630/760W, or up to 30W per port. Ideal for desktops, they are ... Read More
Stock 2 Code 111320 Brand LEVELONE Model FGP-3400W630 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The LevelOne FGP-3400 series are unmanaged PoE switches with 32 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 250/380/500/630/760W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FGP-3400 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.

LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 32. Full duplex. MAC address table: 32000 entries, Switching capacity: 10.4 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting

Key Highlights

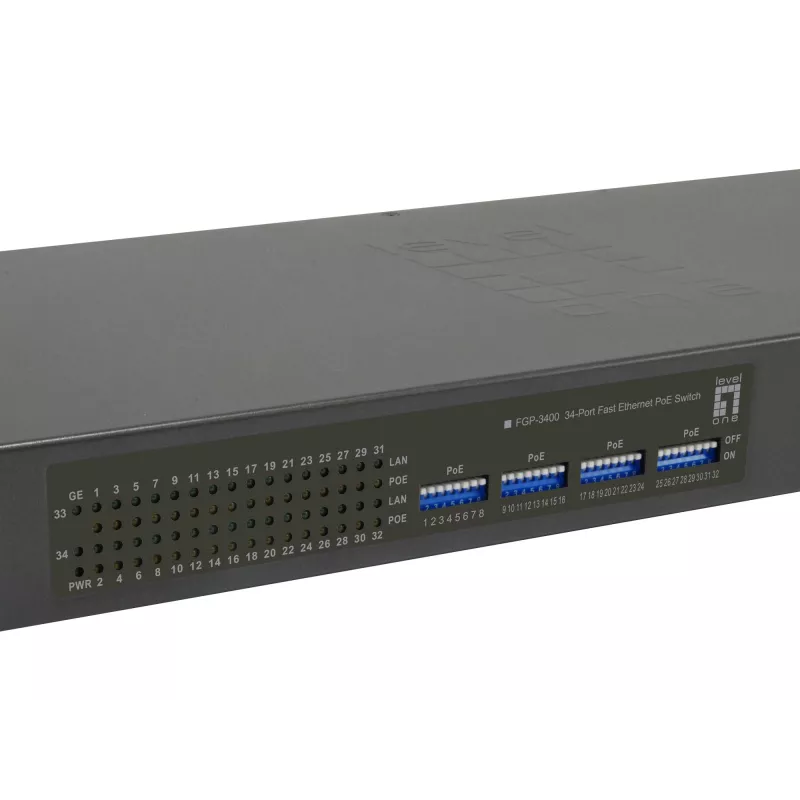

  • PoE on/off control per port by dip switches
  • IEEE 802.3af/at PoE PSE with 30W power budget
  • IEEE 802.3af PoE compliant to simplify deployment and installation
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • 19-inch rackmount kit included
  • Unmanaged
  • Basic switching RJ-45 Ethernet ports quantity: 32
  • Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 32000 entries Switching capacity: 10.4 Gbit/s
  • Rack mounting
  • Power over Ethernet (PoE)
Specifications
10G support
No
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Basic switching RJ-45 Ethernet ports quantity
32
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7
Cables included
AC
Certification
FCC Class A, CE
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Country of origin
Taiwan
Depth
480 mm
Fast Ethernet (copper) ports quantity
32
Flow control support
Yes
Full duplex
Yes
Gigabit Ethernet (copper) ports quantity
2
Harmonized System (HS) code
85176990
Height
45 mm
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Jumbo frames
16000
Jumbo frames support
Yes
LED indicators
LAN, PoE, Power, Uplink
MAC address table
32000 entries
Master (outer) case gross weight
19.5 kg
Master (outer) case height
280 mm
Master (outer) case length
555 mm
Master (outer) case width
510 mm
Mean time between failures (MTBF)
74000 h
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
On/off switch
Yes
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Package depth
534 mm
Package height
95 mm
Package type
Box
Package weight
3.6 kg
Package width
255 mm
Packet buffer memory
8 MB
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
148800 pps
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
32
Product colour
Black
Products per master (outer) case
5 pc(s)
Quick start guide
Yes
Rack mount kit
Yes
Rack mounting
Yes
Regulatory Approvals
EMI:EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013;EMS: EN55024:2010, IEC61000-4-2:2008, IEC61000-4 3:2006+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004
Rubber feet
Yes
Storage relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 70 °C
Switch type
Unmanaged
Switching capacity
10.4 Gbit/s
Total Power over Ethernet (PoE) budget
630 W
Weight
3.1 kg
Width
195 mm

Leaflet

Open Leaflet
