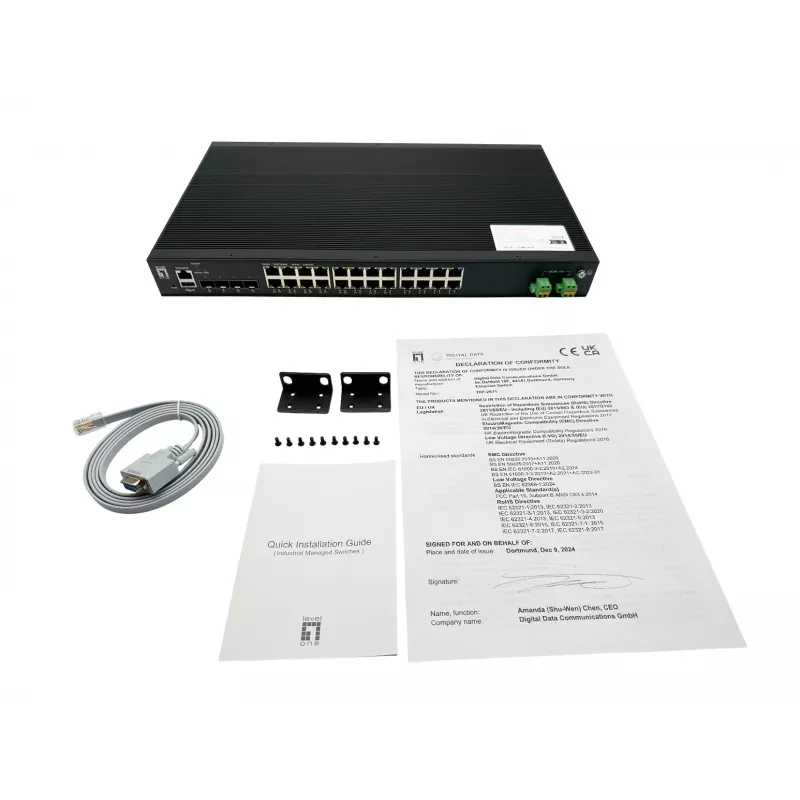

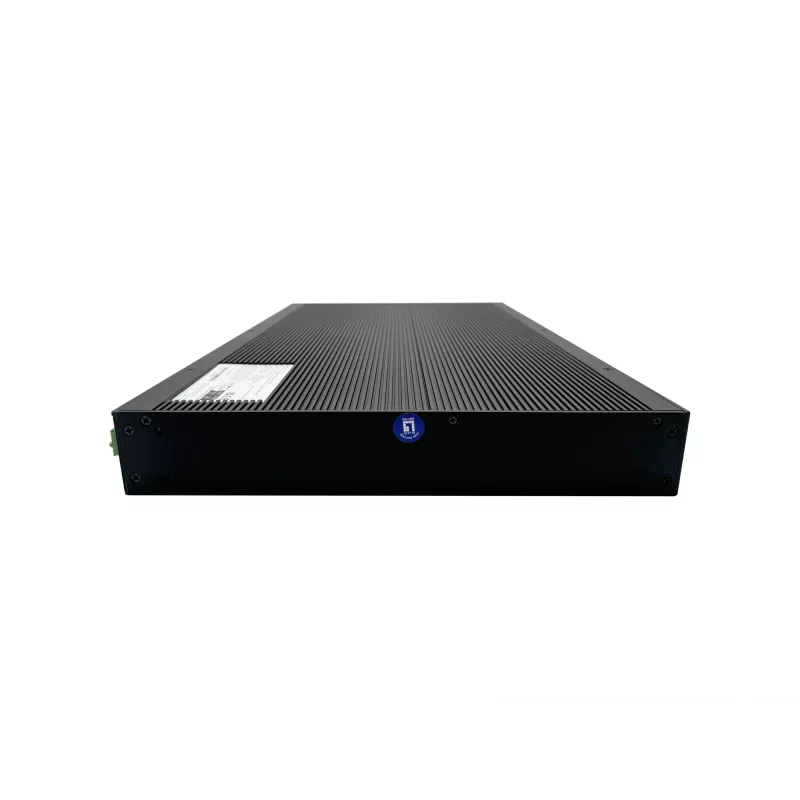

LevelOne 28-Port L2 Plus Managed PoE Industrial Switch, 4 x 1/2.5/10GbE SFP+, 24 PoE Outputs, 370W, 802.3AF/AT/BT PoE, 19 inch Rack Mount, -40°C to 80°C

LevelOne 28-Port L2 Plus Managed PoE Industrial Switch, 4 x 1/2.5/10GbE SFP+, 24 PoE Outputs, 370W, 802.3AF/AT/BT PoE, 19 inch Rack Mount, -40°C to 80°C
LevelOne 28-Port L2 Plus Managed PoE Industrial Switch, 4 x 1/2.5/10GbE SFP+, 24 PoE Outputs, 370W, 802.3AF/AT/BT PoE, 19 inch Rack Mount, -40°C to 80°C
LevelOne 28-Port L2 Plus Managed PoE Industrial Switch, 4 x 1/2.5/10GbE SFP+, 24 PoE Outputs, 370W, 802.3AF/AT/BT PoE, 19 inch Rack Mount, -40°C to 80°C
LevelOne 28-Port L2 Plus Managed PoE Industrial Switch, 4 x 1/2.5/10GbE SFP+, 24 PoE Outputs, 370W, 802.3AF/AT/BT PoE, 19 inch Rack Mount, -40°C to 80°C
LevelOne 28-Port L2 Plus Managed PoE Industrial Switch, 4 x 1/2.5/10GbE SFP+, 24 PoE Outputs, 370W, 802.3AF/AT/BT PoE, 19 inch Rack Mount, -40°C to 80°C
LevelOne 28-Port L2 Plus Managed PoE Industrial Switch, 4 x 1/2.5/10GbE SFP+, 24 PoE Outputs, 370W, 802.3AF/AT/BT PoE, 19 inch Rack Mount, -40°C to 80°C
LevelOne 28-Port L2 Plus Managed PoE Industrial Switch, 4 x 1/2.5/10GbE SFP+, 24 PoE Outputs, 370W, 802.3AF/AT/BT PoE, 19 inch Rack Mount, -40°C to 80°C
LevelOne 28-Port L2 Plus Managed PoE Industrial Switch, 4 x 1/2.5/10GbE SFP+, 24 PoE Outputs, 370W, 802.3AF/AT/BT PoE, 19 inch Rack Mount, -40°C to 80°C
R25,108
The IXP-2871 is a high-performance industrial Ethernet switch with 24 PoE ports and 4 SFP+ slots. It delivers up to 370W of PoE power, with Ports 1-2 supporting up to 90W and Ports 3-24 supporting up to 30W, providing flexibility in power allocation for various powered devices. Designed to excel in ... Read More
Stock 2 Code 1431915 Brand LEVELONE Model IXP-2871 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The IXP-2871 is a high-performance industrial Ethernet switch with 24 PoE ports and 4 SFP+ slots. It delivers up to 370W of PoE power, with Ports 1-2 supporting up to 90W and Ports 3-24 supporting up to 30W, providing flexibility in power allocation for various powered devices. Designed to excel in industrial automation, it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninterrupted operations with its ERPS redundant network, boasting a sub-20ms recovery time. Its wide operating temperature range, DC Redundant power supply, and fanless design ensure uninterrupted operation in harsh industrial conditions. Ideal for large-scale industrial networks.

LevelOne 28-Port L2 Plus Managed PoE Industrial Switch, 4 x 1/2.5/10GbE SFP+, 24 PoE Outputs, 370W, 802.3AF/AT/BT PoE, 19" Rack Mount, -40°C to 80°C. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting

Key Highlights
  • 24 10/100/1000Base-T RJ45 PoE ports and 4 1G/2.5G/10GBase-X SFP+ slots
  • Total PoE power budget: 370W, up to 90W per port (Ports 1~2 90W per port, Ports 3~24 30W per port)
  • IEEE 802.3af/at/bt PoE compliant to simplify deployment and installation
  • Ensures uninterrupted operation with redundant DC power supply, advanced surge protection (6KV), and ESD protection (Air-15kV, Contact-8kV)
  • Delivers high availability through G.8032 ERPS protocol with <20ms recovery time
  • Supports advanced Layer 2 features including VLAN, STP/RSTP/MSTP, Link Aggregation, QoS, and IGMP Snooping for optimized network performance
  • Offers robust management options through Web, SNMP, CLI, Telnet, and SSH interfaces
  • Provides enhanced security with 802.1X authentication, port isolation, and ACL
  • Enables advanced network routing with IPv4/IPv6 static routing and DHCP server
  • Designed for harsh environments with fanless IP40 rack-mount enclosure and wide operating temperature range (-40°C to +80°C)
  • Managed L2+ Web-based management
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
  • 10G support
  • MAC address table: 16000 entries Switching capacity: 128 Gbit/s
  • Access Control List (ACL)
  • Rack mounting
  • DC/PoE Power over Ethernet (PoE)
Specifications
10G support
Yes
Access Control List (ACL)
Yes
ARP inspection
Yes
Authentication type
IEEE 802.1x
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Broadcast storm control
Yes
Cable length detection
Yes
Cables included
LAN (RJ-45) to DB9
Compliance certificates
UKCA, Federal Communications Commission (FCC), RoHS, CE
Configuring Location Settings (CLI)
Yes
Console port
RJ-45
Country of origin
China
Depth
280 mm
DHCP features
DHCP server
Dying Gasp
Yes
Ethernet Ring Protection Switching (ERPS)
Yes
Fanless
Yes
Flow control support
Yes
Forwarding rate
190.4 Mpps
GARP VLAN Registration Protocol (GVRP)
Yes
Gigabit Ethernet (copper) ports quantity
24
Harmonized System (HS) code
851762
Height
45 mm
IGMP snooping
Yes
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
International Protection (IP) code
IP40
IP-MAC-Port binding
Yes
Jumbo frames
16000
Jumbo frames support
Yes
LED indicators
Fault, PoE, Power, Status, USB
Link aggregation
Yes
Loop protection
Yes
MAC address entries
Dynamic MAC address entries, Static MAC address entries
MAC address filtering
Yes
MAC address table
16000 entries
Master (outer) case gross weight
10.6 kg
Master (outer) case height
408 mm
Master (outer) case length
205 mm
Master (outer) case width
535 mm
Mean time between failures (MTBF)
200000 h
Multicast support
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-40 - 80 °C
Package depth
390 mm
Package height
95 mm
Package weight
4.8 kg
Package width
525 mm
Packet buffer memory
12 MB
Pallet gross height
177.6 cm
Pallet gross length
80 cm
Pallet gross width
120 cm
Password protection
Yes
Port mirroring
Yes
Port trunking
Yes
Power consumption (max)
402 W
Power consumption (typical)
32 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet (PoE) power per port
90 W
Power over Ethernet (PoE) type supported
PoE+, PoE++ (4PPoE)
Power source
DC/PoE
Product colour
Black
Products per master (outer) case
2 pc(s)
Quality of Service (QoS) support
Yes
Quick start guide
Yes
Rack mount kit
Yes
Rack mounting
Yes
Rate limiting
Yes
Redundant power supply (RPS) support
Yes
Security algorithms
HTTPS
SFP+ module slots quantity
4
Spanning tree protocol
Yes
SSH/SSL support
Yes
Static route
Yes
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 85 °C
Surge protection
Yes
Surge protection voltage
6 kV
Switch layer
L2+
Switch type
Managed
Switching capacity
128 Gbit/s
System event log
Yes
Telnet
Yes
Terminal block included
Yes
Terminal block port
Yes
Total Power over Ethernet (PoE) budget
370 W
USB Type-A ports quantity
1
Virtual LAN features
IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping
VLAN support
Yes
Web-based management
Yes
Weight
4.14 kg
Width
440 mm
