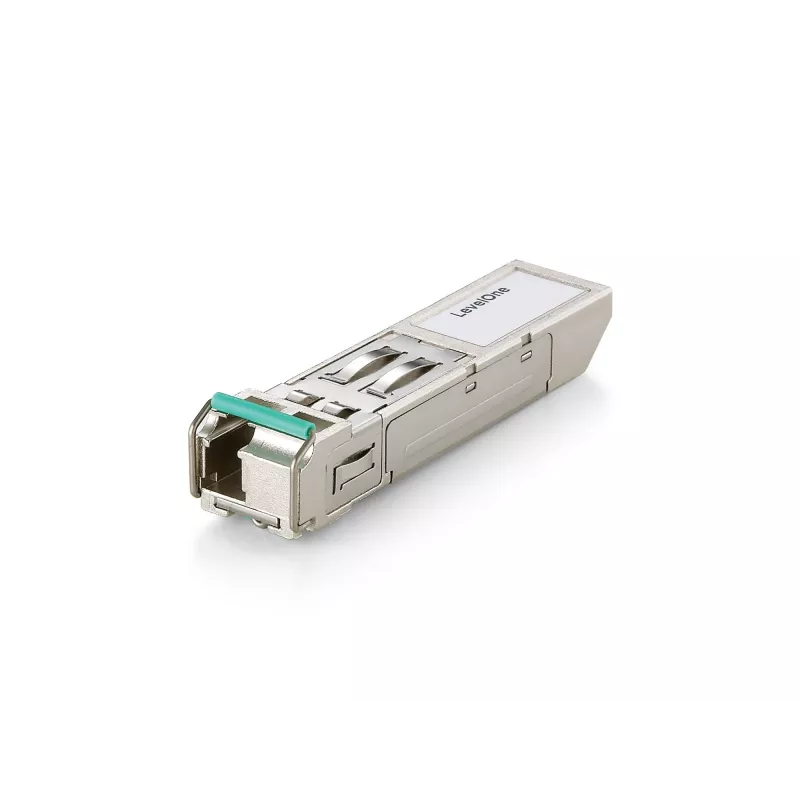

LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 20km, TX 1550nm / RX 1310nm

LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 20km, TX 1550nm / RX 1310nm
LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 20km, TX 1550nm / RX 1310nm
LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 20km, TX 1550nm / RX 1310nm
LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 20km, TX 1550nm / RX 1310nm
LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 20km, TX 1550nm / RX 1310nm
LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 20km, TX 1550nm / RX 1310nm
R729
The LevelOne SFP-7331 is a high performance, cost-effective SFP transceiver. It provides up to 155Mbps bi-directional data transfer rate at distances up to 20km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by emp... Read More
Stock 32 Code 111262 Brand LEVELONE Model SFP-7331 Warranty 2 Years

Shipping & Returns

Estimated delivery Wednesday, October 7
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The LevelOne SFP-7331 is a high performance, cost-effective SFP transceiver. It provides up to 155Mbps bi-directional data transfer rate at distances up to 20km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction.

The SFP-7331 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-7321 transceiver which transmits at and receives at the opposite rates (1550nm TX and 1310nm RX) you get bi-direction data communication on a single fiber core.

- 1550nm FP LD
- Data Rate: 125~155Mbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement(MSA)
- Compliant with SFF-8472 Digital Diagnostic Monitoring Interface
- Single LC Connector
- Compliance with specifications for IEEE802.3ah 100BASE-BX10-U
- Compliance with FDDI PMD Standard
- Compliance with ATM Standard

LevelOne 155Mbps Single-mode BIDI SFP Transceiver, 20km, TX 1550nm / RX 1310nm. SFP transceiver type: Fiber optic, Maximum data transfer rate: 155 Mbit/s, Interface type: SFP. Input voltage: 3.3 V, Maximum voltage: 6 V, Maximum current: 0.3 A. Compliance certificates: RoHS, Safety: EN 60825-1, Certification: CE, FCC. Width: 13.7 mm, Depth: 56.5 mm, Height: 8.95 mm. Quantity per pack: 1 pc(s)

Key Highlights
  • SFP Fiber optic 155 Mbit/s
  • Hot-swap
  • Input voltage: 3.3 V
Specifications
Certification
CE, FCC
Compliance certificates
RoHS
Depth
56.5 mm
Fiber cable diameters supported (core/cladding)
9/125 µm
Fiber optic connector
LC
Fiber ports quantity
1
Harmonized System (HS) code
85369010
Height
8.95 mm
Hot-swap
Yes
Input voltage
3.3 V
Interface type
SFP
Maximum current
0.3 A
Maximum data transfer rate
155 Mbit/s
Maximum transfer distance
20 m
Maximum voltage
6 V
Networking standards
IEEE 802.3ah
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 70 °C
Package depth
51 mm
Package height
130 mm
Package weight
60 g
Package width
75 mm
Quantity per pack
1 pc(s)
Safety
EN 60825-1
SFP transceiver type
Fiber optic
Single-mode fiber (SMF) supported
Yes
Storage temperature (T-T)
-40 - 85 °C
Tx power (max)
-8 dBmW
Tx power (min)
-14 dBmW
Weight
20 g
Width
13.7 mm
