Router Mikrotik LtAP 300 Mbit/s 2.4 GHz Wi-Fi 802.11n

The MikroTik LtAP is a compact, weatherproof wireless access point and router designed for urban and off-grid outdoor networking. It provides 2.4 GHz 802.11b/g/n wireless connectivity with a maximum data rate of 300 Mbit/s, a Gigabit-capable Ethernet LAN port, multiple power options (DC jack, PoE-in and automotive) and a rugged enclosure rated for operation from -40 °C to +70 °C. The device includes two miniPCIe slots for expansion (for example, LTE modem or a 5 GHz radio), a full‑size USB port and an RS232 serial console port. It also offers three mini‑SIM slots for easy roaming and vehicle-tracking applications.

Advantages

The LtAP combines high-power 2.4 GHz wireless and Gigabit Ethernet in a small, weatherproof case suitable for harsh environments. Flexible power inputs (DC, PoE-in, automotive) and multiple expansion options via two miniPCIe slots make it adaptable for LTE backup or dual-band configurations. The rugged design, wide operating temperature range and included wall-mount kit simplify installation on vehicles, outdoor sites and public transport. Built-in RS232 console access, full-size USB and three mini‑SIM slots add practical connectivity and roaming management features.

Suitable for

• Outdoor Wi‑Fi coverage for vehicles (buses, trucks, food trucks)
• Off‑grid wireless access points and remote sites
• Mobile or fixed LTE‑backup installations
• Logistics, tracking and real‑time vehicle monitoring
• Urban outdoor hotspots and public transport connectivity

Key specifications

• Wireless: 2.4 GHz IEEE 802.11b/g/n, up to 300 Mbit/s
• Ethernet: 1 × RJ‑45 (10/100/1000 Mbit/s)
• Interfaces: 2 × miniPCIe slots, 1 × RS232 serial, 1 × full‑size USB
• Power: DC jack, PoE‑in, automotive power input
• SIM: 3 × Mini‑SIM slots
• Operating temperature: -40 °C to +70 °C
• Colour: Black
• Maximum power consumption: 24 W

How to use

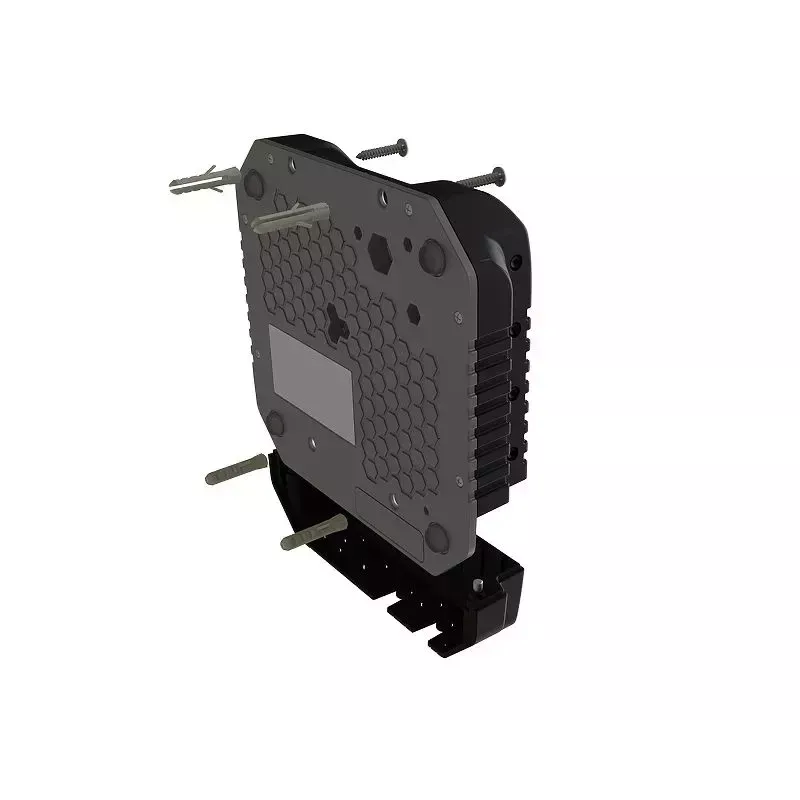

Install the LtAP on a wall or vehicle using the supplied mounting kit. Connect power via DC jack, PoE‑in or the automotive input according to your installation. Insert optional miniPCIe cards (for example, an LTE modem or 5 GHz radio) and SIM cards into the mini‑SIM slots if required. Configure wireless and routing settings using MikroTik RouterOS via the serial console, USB or Ethernet connection. Use the built‑in tracking example in RouterOS documentation to set up real‑time vehicle monitoring if needed.

Recommendations

For reliable outdoor performance, mount the LtAP in a sheltered but ventilated location, ensure proper sealing of cable entries, and use an appropriate LTE module and SIM plan for roaming and backup connectivity.
