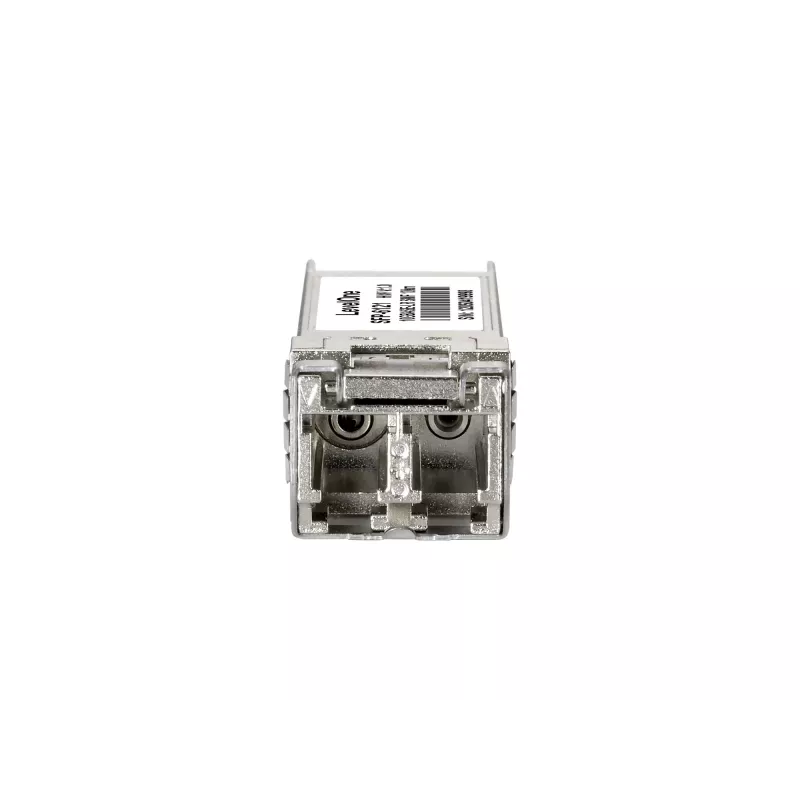

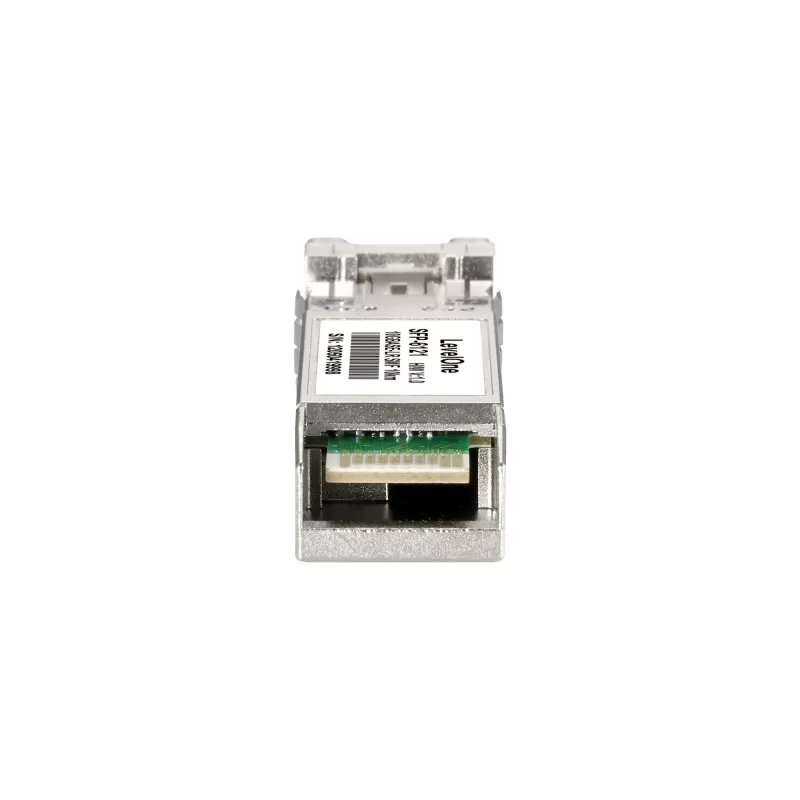

LevelOne 10Gbps Single-mode SFP+ Transceiver, 10km, 1310nm, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, 10000 m

LevelOne 10Gbps Single-mode SFP+ Transceiver, 10km, 1310nm, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, 10000 m
LevelOne 10Gbps Single-mode SFP+ Transceiver, 10km, 1310nm, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, 10000 m
LevelOne 10Gbps Single-mode SFP+ Transceiver, 10km, 1310nm, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, 10000 m
LevelOne 10Gbps Single-mode SFP+ Transceiver, 10km, 1310nm, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, 10000 m
LevelOne 10Gbps Single-mode SFP+ Transceiver, 10km, 1310nm, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, 10000 m
LevelOne 10Gbps Single-mode SFP+ Transceiver, 10km, 1310nm, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, 10000 m
LevelOne 10Gbps Single-mode SFP+ Transceiver, 10km, 1310nm, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, 10000 m
LevelOne 10Gbps Single-mode SFP+ Transceiver, 10km, 1310nm, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, 10000 m
R1,531
LevelOne's SFP-Plus Transceivers are hot-swappable multi-purpose optical modules support 10Gigabit Ethernet applications across most switching and routing platforms. The transceivers support to operate at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to ... Read More
Stock 66 Code 2555485 Brand LEVELONE Model SFP-6121 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
LevelOne's SFP-Plus Transceivers are hot-swappable multi-purpose optical modules support 10Gigabit Ethernet applications across most switching and routing platforms. The transceivers support to operate at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 40km (SMF) or 300m (MMF), ideally suited for data centers, enterprise and storage area networks. In addition, the LevelOne SFP-Plus transceivers adopt the most advanced technology to minimize the power consumption in ultra-high speed.

- High-quality 10Gbase short range SFP-Plus transceiver
- Comply with SFP Multi-Sourcing Agreement (MSA) to work in MSA compliant devices
- Supports Digital Optical Monitoring (DOM) and Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring
- Hot-swappable providing non-stop service
- Provides duplex LC connector
- Operating temperature: 0°C ~ 70°C
Key Highlights
  • SFP+ Fiber optic 10000 Mbit/s
  • Wavelength: 1310 nm
  • Hot-swap
  • Input voltage: 3.3 V
Specifications
Certification
CE, FCC
Compliance certificates
RoHS
Depth
12 mm
Duplex system
Full
Fiber cable diameters supported (core/cladding)
9/125 µm
Fiber optic connector
LC
Fiber ports quantity
1
Harmonized System (HS) code
85369010
Height
13.7 mm
Hot-swap
Yes
Input voltage
3.3 V
Interface type
SFP+
Maximum current
0.33 A
Maximum data transfer rate
10000 Mbit/s
Maximum transfer distance
10000 m
Maximum voltage
3.6 V
Networking standards
IEEE 802.3ae
Operating temperature (T-T)
0 - 70 °C
Package depth
20 mm
Package height
65 mm
Package weight
35 g
Package width
106 mm
Quantity per pack
1 pc(s)
Safety
EN 60825-1
SFP transceiver type
Fiber optic
Single-mode fiber (SMF) supported
Yes
Storage temperature (T-T)
-40 - 85 °C
Tx power (max)
0.5 dBmW
Tx power (min)
-8.2 dBmW
Wavelength
1310 nm
Weight
20 g
Width
57 mm

Leaflet

Open Leaflet
