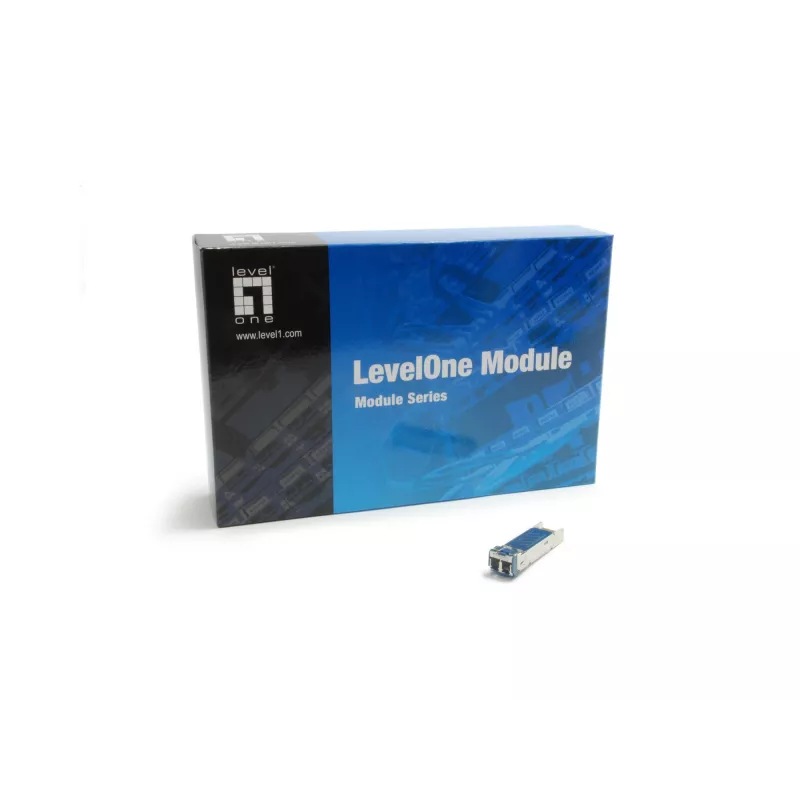

LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, LX

LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, LX
LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, LX
LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, LX
LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, LX
LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, LX
LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, LX
R798
Product OverviewThe LevelOne GVT-0301 SFP (Small form-factor pluggable) Transceiver provide flexibility for utilizing fiber Gigabit network connections in both data and telecommunication applications.Support for Mini GBIC ConnectivityGVT-0301 SFP Transceiver Series transceivers support LX standard o... Read More
Stock 80 Code 123170 Brand LEVELONE Model GVT-0301 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 8
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Product Overview
The LevelOne GVT-0301 SFP (Small form-factor pluggable) Transceiver provide flexibility for utilizing fiber Gigabit network connections in both data and telecommunication applications.

Support for Mini GBIC Connectivity
GVT-0301 SFP Transceiver Series transceivers support LX standard optic with single-mode mini GBIC connectors. They provide signal amplification to transfer and receive data between two ends of mini GBIC ports.

Multi-Purpose Usage
GVT-0301 SFP transceivers can be used for distributed multi-processing, switch-to-switch interfaces, high-speed I/O file transfer, bus extension applications, and for a channel extender or data storage applications.
The LevelOne GVT-0301 can be used in any LevelOne switch or modules that support SFP modules.

- Add a 1000Base-LX connection to LevelOne switchs with mini GBIC/SFP ports
- Connect switches up to 10km away with each other
- TTL signal detect indicator
- Compliant with IEEE802.3z Gigabit Ethernet
- Easy to install and hot-swappable
- Differential LVPECL input and output
- Single 3.3V power supply
- Duplex LC connector

LevelOne 1.25Gbps Single-mode SFP Transceiver, 10km, 1310nm. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Compatible products: GSW-2453 GVT-4000. Input voltage: 3.5 V, Maximum voltage: 6 V, Maximum current: 0.3 A. Certification: Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11. Width: 13.5 mm, Depth: 55.5 mm, Height: 8.5 mm

Key Highlights
  • SFP Fiber optic 1250 Mbit/s
  • Wavelength: 1310 nm
  • Hot-Plug support
  • Input voltage: 3.5 V
Specifications
Certification
Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11
Compatible products
GSW-2453 GVT-4000
Country of origin
Taiwan
Depth
55.5 mm
Fiber cable diameters supported (core/cladding)
9/125 µm
Fiber optic connector
LC
Harmonized System (HS) code
85369010
Height
8.5 mm
Hot-Plug support
Yes
Input voltage
3.5 V
Interface type
SFP
Link budget
10.5 dB
Maximum current
0.3 A
Maximum data transfer rate
1250 Mbit/s
Maximum transfer distance
10000 m
Maximum voltage
6 V
Networking standards
IEEE 802.3z
Operating relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 70 °C
Package depth
50 mm
Package height
130 mm
Package weight
70 g
Package width
70 mm
Quantity per pack
1 pc(s)
SFP transceiver standard
LX
SFP transceiver type
Fiber optic
Single-mode fiber (SMF) supported
Yes
Tx power (max)
-3 dBmW
Tx power (min)
-9.5 dBmW
Wavelength
1310 nm
Width
13.5 mm

Leaflet

Open Leaflet
