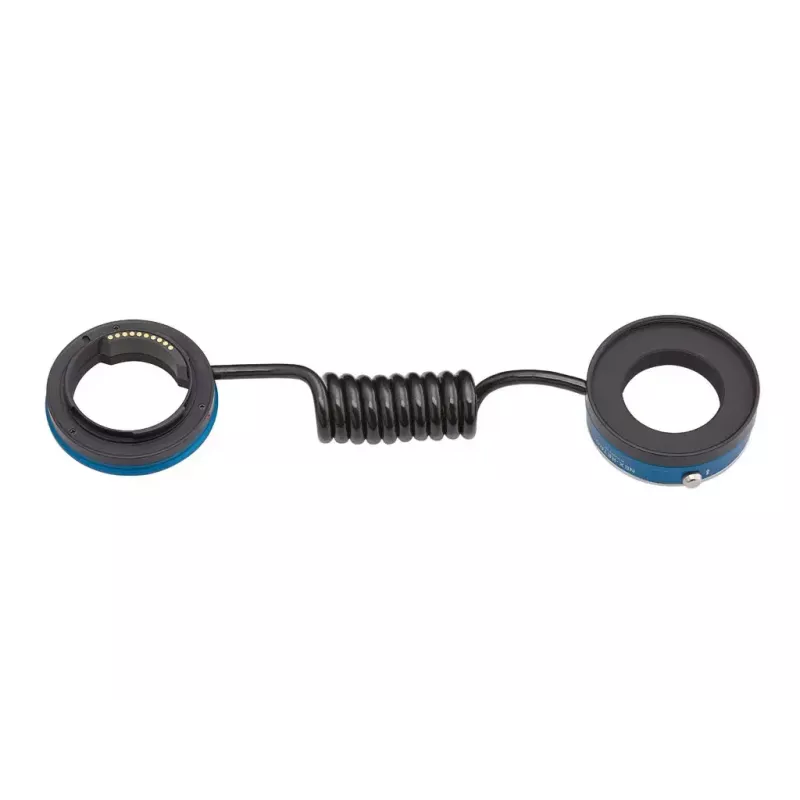

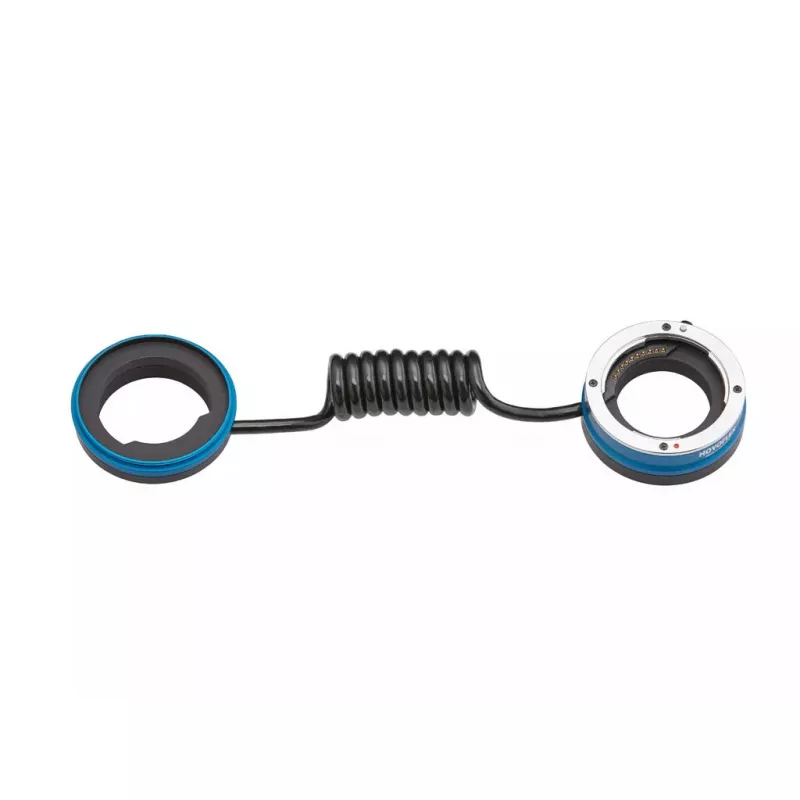

Lens Adapter Novoflex NEX-RETRO

The Novoflex NEX-RETRO is an adapter that allows Sony E-mount wide-angle and zoom lenses to be mounted in reverse on Sony E-mount cameras for extreme close-up and macro photography. Supplied with a 58 mm filter diameter and a multi-layer protection filter to shield the rear lens element, the adapter transfers all control functions and keeps a compact, lightweight profile suitable for close-focus work.

Advantages

The NEX-RETRO improves image quality at magnifications greater than life size by using reverse lens mounting, often producing noticeably better resolution compared with normal lens orientation. It supports direct achievement of high image scales (for example, about 2:1 with a 45 mm lens) and allows even larger magnifications when combined with bellows units. The adapter is lightweight (approx. 160 g), robustly built and compatible with step-up/down rings for other filter sizes.

Suitable for

• Extreme close-up and macro photography
• Photographers using Sony E-mount wide-angle or zoom lenses
• Work requiring high magnification with improved image quality
• Combination with bellows units (BALPRO, CASTBAL) for extended magnification

Key specifications

• Brand: Novoflex
• Model: NEX-RETRO (MPN: NEX-RETRO)
• Compatibility: Sony E-mount lenses and cameras
• Filter thread: 58 mm (stepping rings available for other sizes)
• Weight: approx. 160 g
• EAN: 4030432540016

How to use

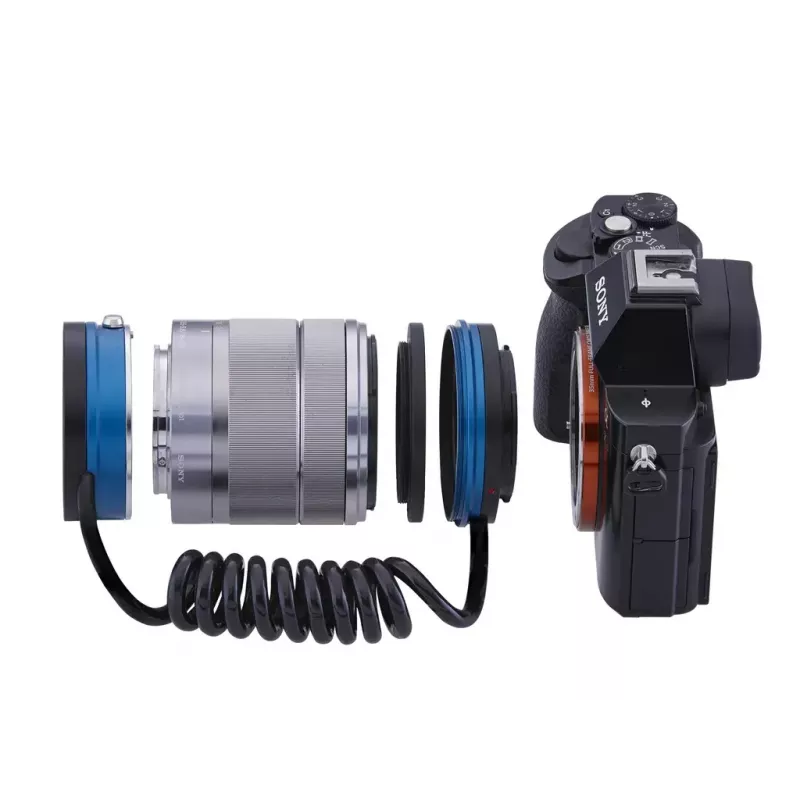

Mount the adapter on the camera body and attach the Sony E-mount lens to the adapter in reverse orientation so the rear element faces outward. The adapter transmits control functions to allow focusing and aperture operation where supported by the lens. For higher magnification, use the adapter directly or pair it with a bellows unit such as the Novoflex BALPRO or CASTBAL series to extend the working distance and achieve greater image scales.

Recommendations

Use the included multi-layer protection filter to protect the lens rear element from dust and contact during reverse mounting. For stable results at high magnifications, use a solid tripod, good lighting, and consider focus stacking when depth of field is narrow. Select appropriate stepping rings if your lens filter size differs from 58 mm.
