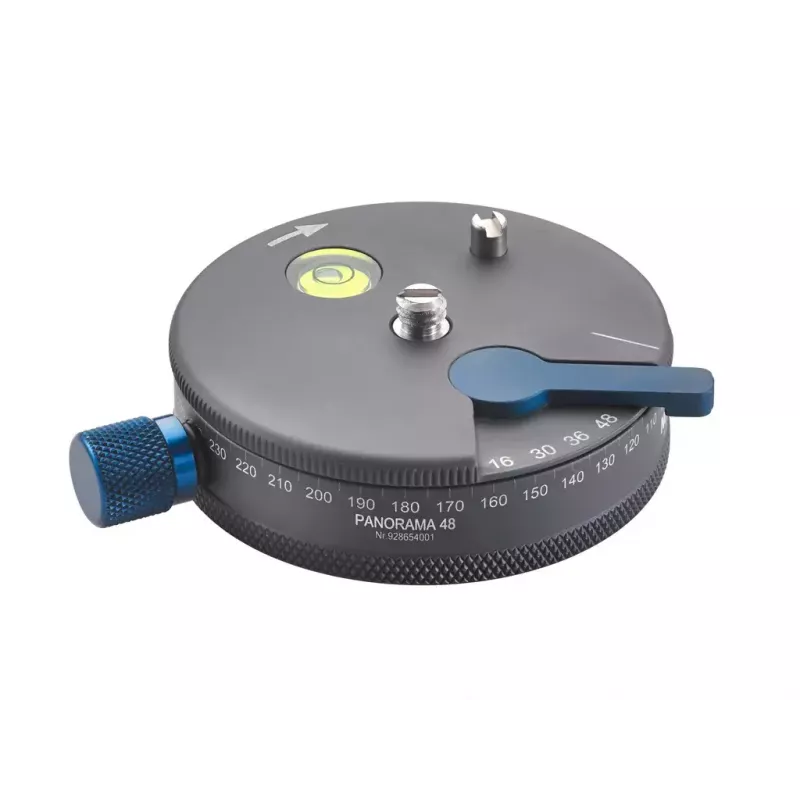

Tripod Head Novoflex PANORAMA 48 Black Blue Pan

The Novoflex PANORAMA 48 Black Blue Pan is an ultra-compact panorama panning base designed for precise horizontal rotation. Measuring 18 mm in height, 85 mm in width and weighing 160 g, it provides a slim, portable solution for panoramic photography. The unit combines integrated click stops with stepless rotation and a smooth ball-bearing mechanism for play-free movement and accurate panning.

Advantages

The PANORAMA 48 offers multiple indexed click-stop options (16/22.5°, 30/12°, 36/10° and 48/7.5°) plus a continuously adjustable mode, enabling both repeatable and fluid rotations. A 0–360° scale with 5° graduations allows precise angular adjustment. The built-in ball bearing ensures a smooth, backlash-free run, and the removable anti-rotation pin provides flexible mounting options.

Suitable for

• Panoramic landscape photography
• Architectural and interior stitching shots
• Multi-row and gigapixel image capture
• Lightweight travel and field setups

Key specifications

• Model: Novoflex PANORAMA 48 Black Blue Pan (MPN PANORAMA 48)
• Height: 18 mm
• Width: 85 mm
• Weight: 160 g
• Click-stop increments: 16 (22.5°), 30 (12°), 36 (10°), 48 (7.5°) and stepless rotation
• 0–360° scale with 5° markings
• Ball-bearing mechanism for smooth, play-free rotation
• Removable anti-rotation pin

How to use

Mount the PANORAMA 48 between your tripod and camera or ball head according to the tripod and camera thread standard you use. Select the required indexed increment or set the unit to stepless mode for continuous rotation. Use the 0–360° scale to align and adjust the pan precisely. If needed, unscrew the anti-rotation pin to allow alternative mounting or to accommodate different tripod head designs.

Recommendations

For best results, use the PANORAMA 48 on a stable tripod and verify level alignment before capturing bracketed or stitched images; periodic cleaning and light lubrication of the bearing will help maintain a smooth, play-free rotation.
