Lenovo USB-C Mini Dock Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey

The Lenovo USB-C Mini Dock 40AU0065EU expands a single USB-C connection into multiple wired ports for workstations and laptops. This compact grey dock provides a USB 3.2 Gen 1 Type-C interface, one USB-A port, an HDMI output, a VGA (D-Sub) output, a 3.5 mm audio combo jack and a Gigabit Ethernet (RJ-45) port. It is powered by a 65 W AC adapter and is compatible with Windows 10. Actual USB transfer rates depend on connected devices and system configuration and may be lower than nominal USB specification speeds.

Advantages

The mini dock adds video, audio, network and legacy USB-A connectivity through a single USB-C cable, reducing cable clutter and enabling connection to 4K or HD displays, wired networks and analog audio devices. Its compact grey design makes it suitable for mobile work environments while the included 65 W power support helps keep compatible laptops charged during use. The dock supports common enterprise features on many Lenovo ThinkPad models such as MAC address passthrough, Wake-on-LAN and mirrored power button where supported by the host.

Suitable for

• Connecting a laptop to an external HDMI or VGA monitor
• Providing wired Gigabit Ethernet access in offices or remote locations
• Charging or connecting legacy USB-A peripherals (mouse, keyboard, external drive)
• Adding a 3.5 mm headset or speaker via the combo audio jack
• Portable docking for hybrid and remote work setups

Key specifications

• Model: Lenovo USB-C Mini Dock 40AU0065EU
• Ports: 1 × USB-C (host), 1 × USB-A (USB 3.2 Gen 1), 1 × USB 2.0, 1 × HDMI, 1 × VGA (D-Sub), 1 × RJ-45 Ethernet, 1 × 3.5 mm combo audio
• Network: 10/100/1000 Mbit/s Ethernet
• Power: 65 W AC adapter (dock-powered)
• Compatibility: Windows 10 (host support may vary for advanced features)
• Colour and weight: Grey, 0.156 kg

How to use

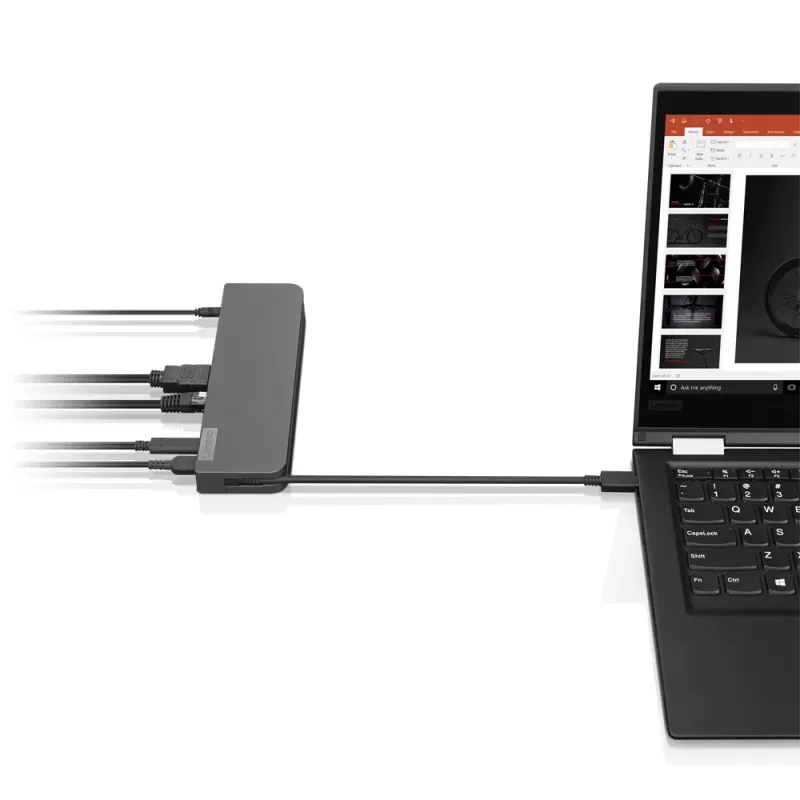

Connect the dock to your laptop using the USB-C host cable. Attach displays to the HDMI or VGA port, connect wired Ethernet to the RJ-45 port and plug in USB-A peripherals or 3.5 mm audio devices as needed. If required, connect the supplied 65 W AC adapter to provide power to the dock and charge compatible laptops. Check your laptop’s USB-C capabilities (DisplayPort Alt Mode, power delivery) for full functionality.

Recommendations

For optimal performance, use the dock with a USB-C port that supports DisplayPort Alt Mode and sufficient power delivery on your laptop. Transfer speeds over the dock’s USB ports will vary with device capabilities and system configuration; expect rates typically lower than the maximums defined by USB specifications depending on the environment.
