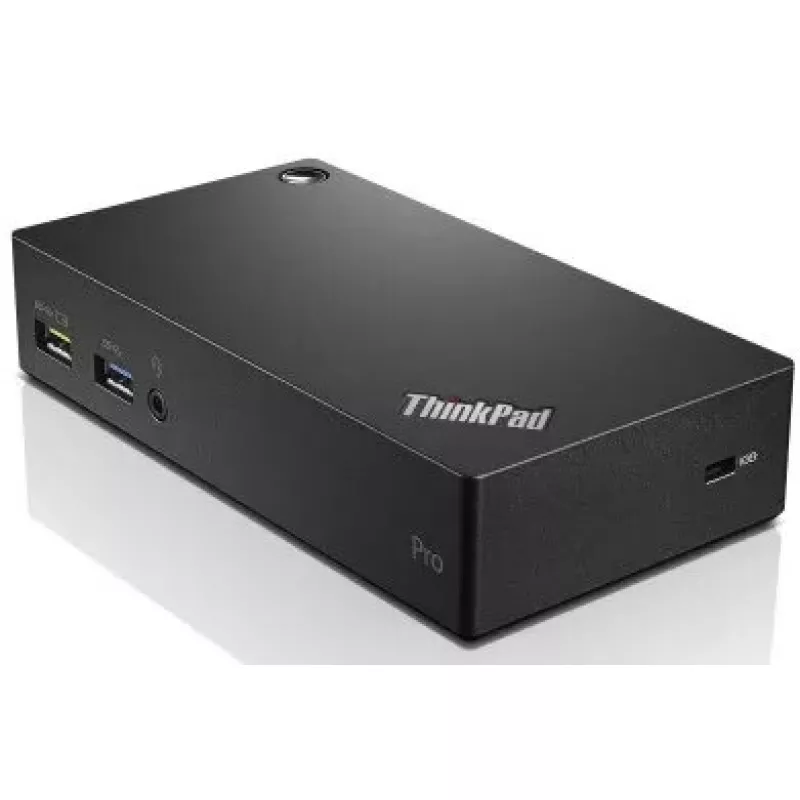

Lenovo ThinkPad USB 3.0 Pro Dock EU Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-A Black

The Lenovo ThinkPad USB 3.0 Pro Dock is a professional USB docking solution that provides fast wired connectivity for workspace peripherals. With a single USB 3.0 cable connection to your Lenovo PC, the dock enables access to up to two external monitors, Gigabit Ethernet, audio output, USB printers and scanners, keyboard and mouse, and mobile device charging via an always-on USB port. The dock features a compact black design and includes a Kensington lock slot for added security.

Advantages

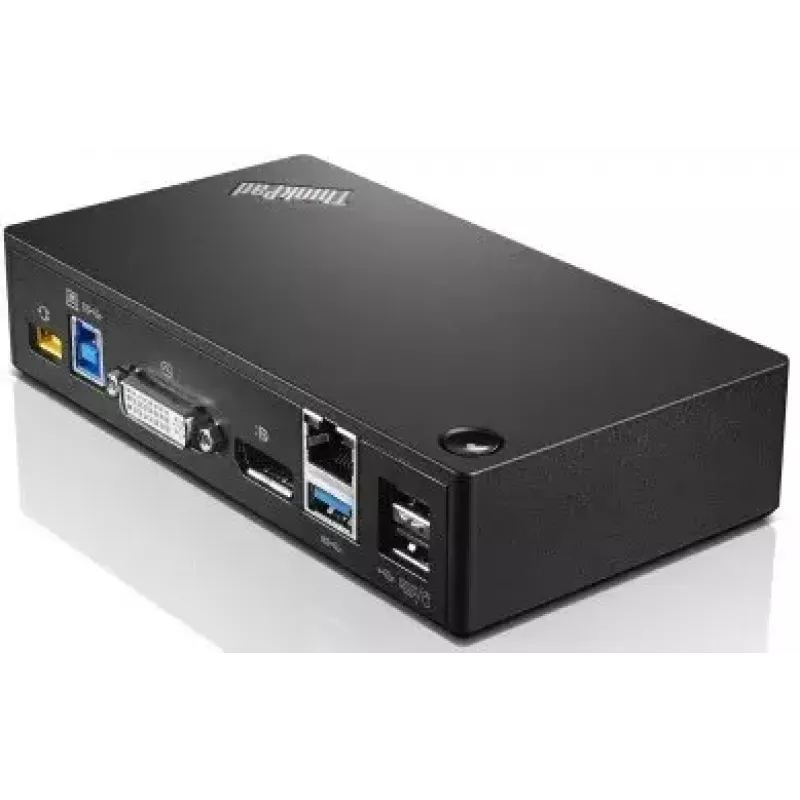

The dock delivers high-speed USB 3.0 (USB 3.2 Gen 1) Type-A ports for fast data transfer and multiple USB 2.0 ports for legacy devices. It provides a dedicated Gigabit Ethernet (10/100/1000 Mbit/s) port for stable wired network connections and a DVI-I video port to support external displays. A 3.5 mm headphone jack is available for audio output, and the always-on USB port allows charging of mobile devices even when the host PC is asleep or turned off.

Suitable for

• Office workstations requiring multiple peripherals (keyboard, mouse, printer, scanner)
• Users needing a wired Gigabit Ethernet connection
• Setups that require one or two external monitors via DVI-I and USB video support
• Charging mobile devices via an always-on USB port

Key specifications

• Brand: Lenovo, Model: ThinkPad USB 3.0 Pro Dock (MPN 03X6897, EAN 5712505827949)
• Interface: USB 3.2 Gen 1 (USB 3.0) Type-A connection
• USB ports: 3 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0
• Video ports: 1 × DVI-I (supports external monitor connection)
• Network: 1 × RJ-45 Gigabit Ethernet (10/100/1000 Mbit/s)
• Audio: 3.5 mm headphone jack
• Security: Kensington lock slot
• Colour: Black

How to use

Connect the dock to your Lenovo PC using the supplied USB 3.0 Type-A cable. Attach external monitors to the DVI-I port and connect network via the RJ-45 Ethernet port. Plug in USB peripherals such as keyboard, mouse, printer, scanner and external storage into the available USB ports. Use the 3.5 mm jack for headphones or speakers. To charge a mobile device, insert the device into the always-on USB port; the dock provides power even when the host PC is in sleep or powered off, depending on system support.

Recommendations

For reliable performance, use the dock with compatible Lenovo systems and ensure the host PC has the proper USB 3.0 drivers installed. When connecting multiple high-resolution displays or power-hungry devices, verify system and display driver support to achieve optimal video and charging behaviour.
