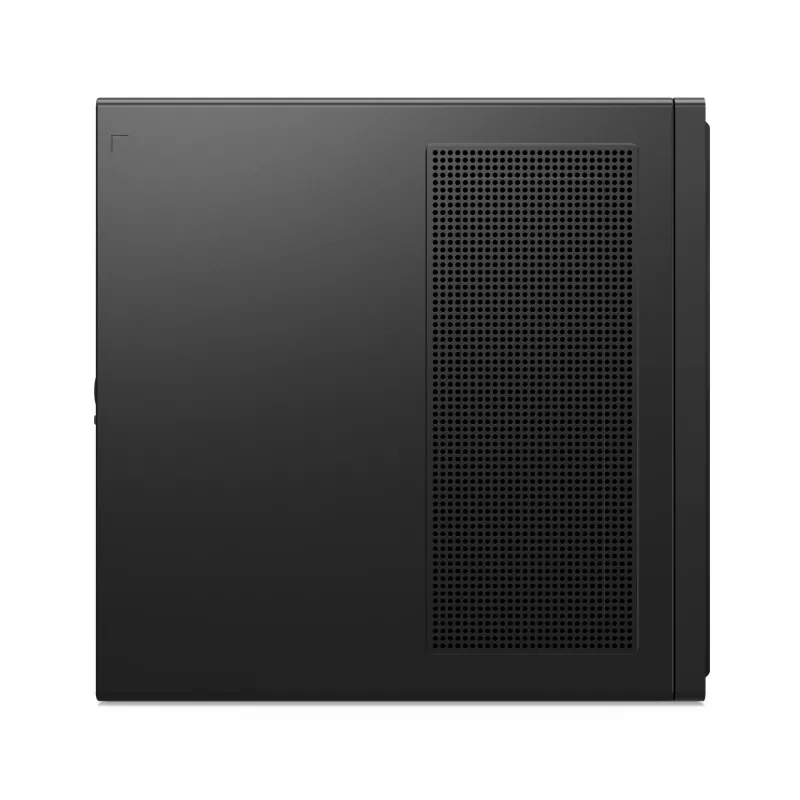

Lenovo ThinkCentre M90q Gen 6 Intel Core Ultra 5 245T 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black

The Lenovo ThinkCentre M90q Gen 6 is a compact business desktop in a Tiny chassis designed for space-efficient office environments. It is powered by an Intel Core Ultra 5 245T processor, equipped with 16 GB DDR5 memory and a 512 GB NVMe SSD, and includes integrated Intel Graphics. The system supports additional internal storage and expansion while offering modern connectivity and enterprise-grade management and security features.

Advantages

The small form factor provides flexible placement and a VESA-compatible mounting option for space saving. Two M.2 2280 slots and one free PCIe 4.0 x8 low-profile expansion slot allow straightforward internal upgrades for storage and add-in cards. Built-in Intel Wi-Fi 7 and Gigabit Ethernet ensure reliable network connectivity, and integrated TPM 2.0 plus Intel vPro Enterprise support help with hardware security and remote management. The device ships with a keyboard and optical mouse and includes MIL-STD-810H durability and a three-year on-site warranty.

Suitable for

• Office productivity and multitasking
• Business desktops with remote management needs
• Workstations requiring compact footprint and VESA mounting
• Systems needing internal SSD expansion or an add-in card

Key specifications

• Operating system: Windows 11 Pro 64-bit
• Processor: Intel Core Ultra 5 245T (14 cores total: 6 performance + 8 efficient, up to 5.1 GHz)
• Chipset: Intel Q870
• Memory: 16 GB DDR5 5600 MHz (1x16 GB), expandable to 64 GB (2x32 GB)
• Storage: 512 GB M.2 NVMe PCIe 4.0 SSD; two additional M.2 2280 slots available
• Graphics: Integrated Intel Graphics (uses system memory)
• Networking: Intel Gigabit Ethernet and Intel Wi-Fi 7 BE200 (802.11be) with Bluetooth 5.4
• Front I/O: 1× USB-C Gen2x2, 2× USB-A Gen2, 3.5 mm audio combo
• Rear I/O: 2× DisplayPort 1.4, 1× HDMI 2.1, multiple USB-A 3.2 ports, 1× RJ-45
• Expansion: One free PCIe 4.0 x8 low-profile slot
• Security: TPM 2.0 (TCG/FIPS 140-2 certified) and Kensington lock slot
• Power supply: External 135 W
• Dimensions (W×D×H): 179 × 182.9 × 36.5 mm; weight: 1.34 kg
• Durability and certifications: MIL-STD-810H, ENERGY STAR 9.0, ErP Lot 3, RoHS, TCO Certified 10.0
• Built-in speaker: 2 W premium speaker
• Warranty: 3 years Premier NBD on-site

How to use

Place the ThinkCentre M90q on a stable surface or mount it to a compatible monitor or VESA bracket. Connect the external 135 W power adapter and attach the included USB keyboard and optical mouse. For displays, use the DisplayPort or HDMI outputs; for network access use the Ethernet port or configure the Wi‑Fi 7 module. To expand storage or install an add-in card, power down the unit, open the chassis following Lenovo service instructions, and install additional M.2 SSDs or a low-profile PCIe card in the available slots.

Recommendations

Install operating system updates and Lenovo firmware/driver updates regularly, enable TPM-based security features for enterprise deployments, and plan memory and storage upgrades according to workload requirements to maintain performance in multitasking and business applications.
