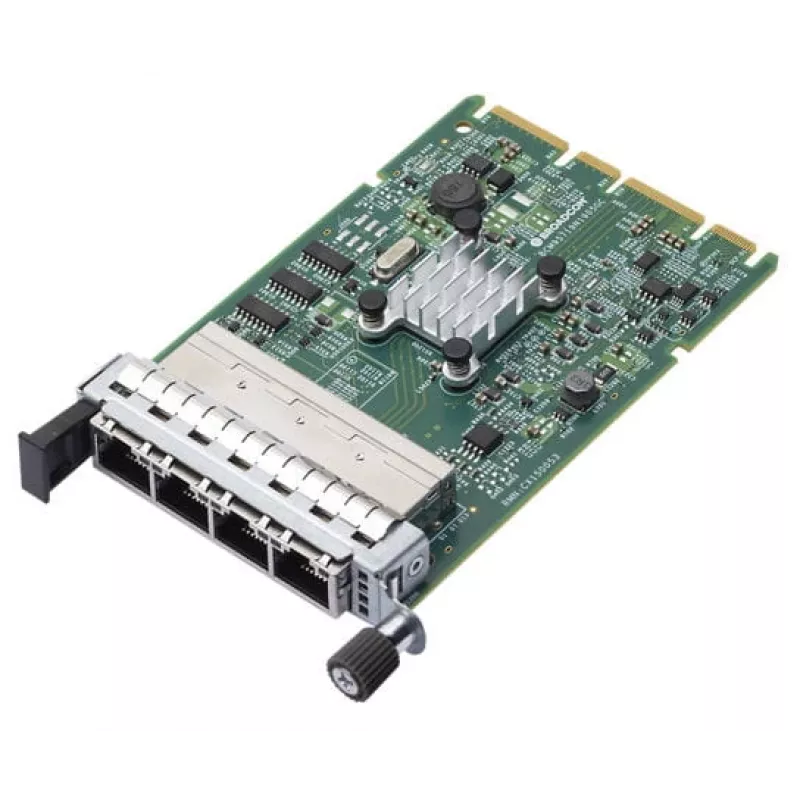

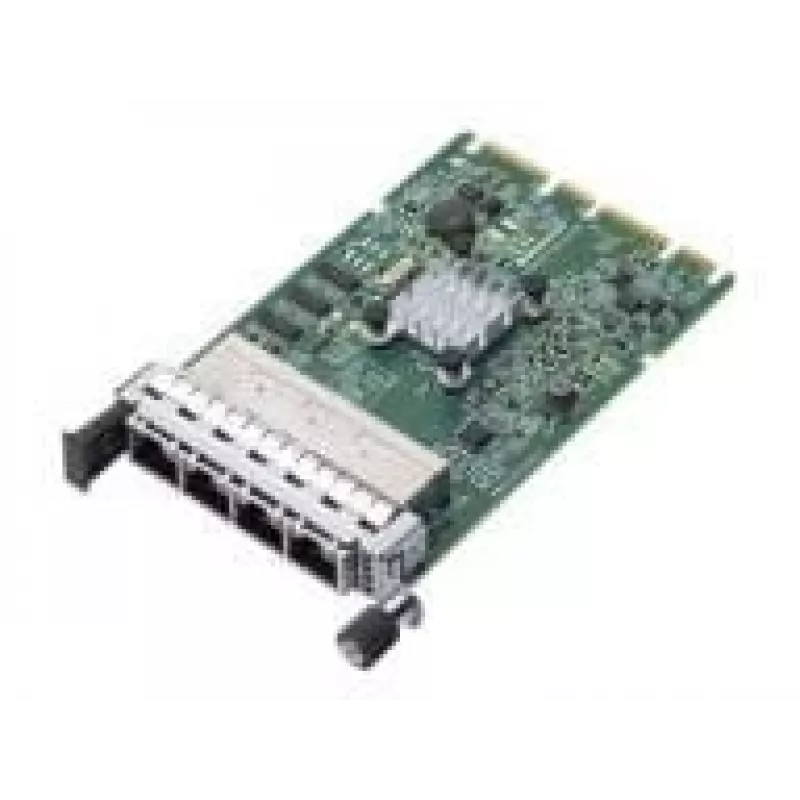

Lenovo Broadcom 5719 Internal Ethernet 1000 Mbit/s

The Lenovo Broadcom 5719 Internal Ethernet adapter is a wired Gigabit network card designed for installation in servers or workstations via a PCI Express slot. Delivering up to 1000 Mbit/s, it supports common Ethernet standards including IEEE 1588, 802.1Q, 802.1as, 802.3ad, 802.3az, 802.3x and 802.3z. The adapter is available in multiport variants within the Broadcom NetXtreme family and is compatible with ThinkSystem and System x servers, providing a durable stainless steel and green finish suited for rack-mounted environments.

Advantages

The adapter offers reliable wired connectivity at Gigabit speeds with broad standards support for network timing, VLAN tagging, link aggregation and energy-efficient Ethernet. Its PCI Express host interface ensures a direct connection to the system bus for low-latency data transfer. Compatibility with Lenovo server platforms and the NetXtreme family simplifies deployment and driver support in data centre and enterprise environments.

Suitable for

• Server network uplinks in data centres
• Enterprise and virtualization hosts
• High-availability and clustered systems requiring link aggregation
• Systems needing IEEE 1588 time synchronization

Key specifications

• Maximum data transfer rate: 1000 Mbit/s
• Connectivity technology: Wired
• Host interface: PCI Express
• Networking standards: IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
• Product colour: Stainless steel, Green
• Manufacturer part number (MPN): 4XC7A08235
• EAN: 0889488497287

How to use

Install the adapter into an available PCI Express slot on a powered-down server or workstation according to the chassis and motherboard instructions. Secure the card and connect the Ethernet cables to the appropriate ports. Power on the system and install the vendor-provided or platform-supported drivers. Configure network settings, VLANs, link aggregation and time synchronization within the operating system or network management tools as required.

Recommendations

For optimal performance in enterprise deployments, use certified drivers from Lenovo or Broadcom, apply firmware updates when available, and configure link aggregation and quality-of-service settings on both adapter and switch sides. Ensure cable quality and switch compatibility for Gigabit operation and enable IEEE 1588 only where precise time synchronization is required to avoid unnecessary configuration overhead.
