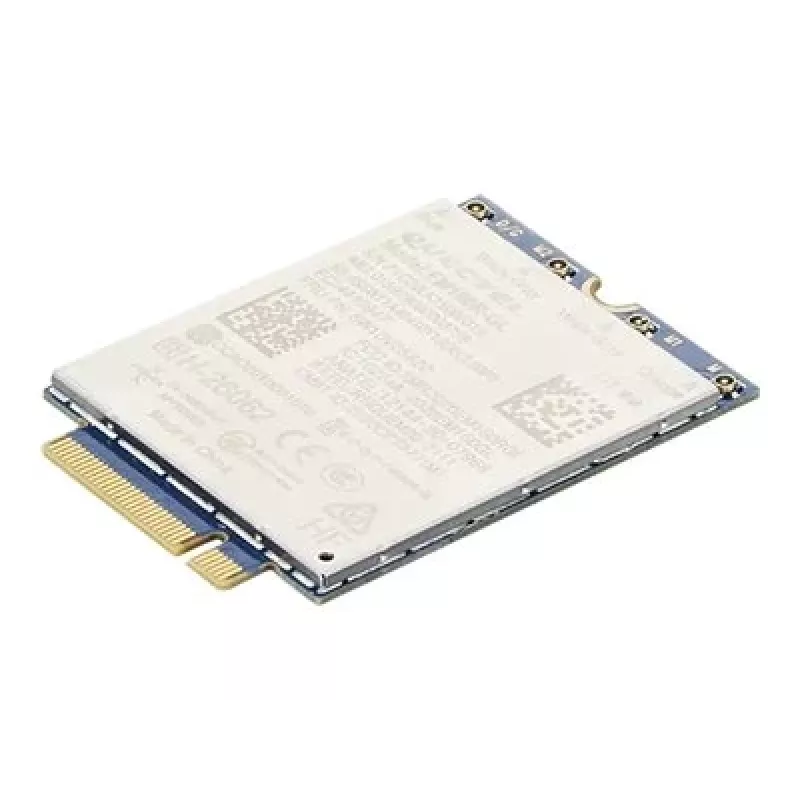

Lenovo 4XC1D69579 network card Internal WWAN 1000 Mbit/s

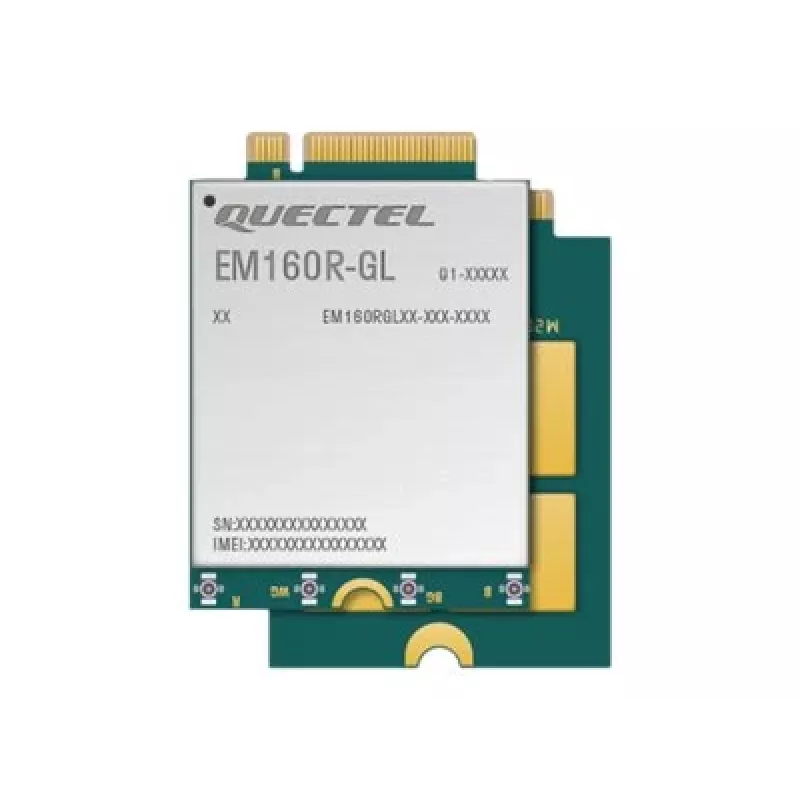

The ThinkStation Quectel CAT16 WWAN Module (w/MIMO), sold as Lenovo Network Card 4XC1D69579, is an internal WWAN network card with receive diversity and an M.2 PCI Express host interface. It provides cellular data connectivity for compatible Lenovo devices with a maximum downlink rate up to 1000 Mbit/s and uplink up to 150 Mbit/s. The module is compact and lightweight and comes in a multicolour design intended for seamless integration into supported systems.

Advantages

The module supports high-speed cellular data transfer with downlink speeds up to 1000 Mbit/s and uplink up to 150 Mbit/s, improving network availability and reliability. It uses an M.2 interface for straightforward installation in systems with an M.2 WWAN slot and includes receive diversity (MIMO) to enhance signal reception and throughput. Its small size and low weight make it suitable for internal mounting without adding significant bulk.

Suitable for

• Providing mobile broadband connectivity for Lenovo workstations and laptops with M.2 WWAN support
• Field work and remote locations where cellular networks are primary internet access
• Use cases requiring improved signal reliability via MIMO receive diversity

Key specifications

• Manufacturer part number (MPN): 4XC1D69579
• EAN: 195892020905
• Product type: Internal WWAN network card (Quectel CAT16)
• Interface: M.2 (PCI Express)
• Connectivity technology: Wireless (WWAN)
• Maximum data transfer rate: 1000 Mbit/s (downlink), up to 150 Mbit/s (uplink)
• Features: Receive diversity (MIMO)
• Product colour: Multicolour
• Weight: 0.0068 kg

How to use

Install the module into a compatible device's M.2 WWAN slot following the device manufacturer's service manual. Secure the card with the appropriate screw, connect any required antenna cables to the module's antenna connectors, and boot the system. Install the necessary drivers and mobile broadband software or configure network settings provided by your operating system and mobile operator to enable cellular data connections.

Recommendations

The module requires a compatible M.2 WWAN slot and proper antenna connections for optimal performance. Use SIM cards and mobile data plans from your network provider, and ensure drivers and firmware are kept up to date for best network reliability.
