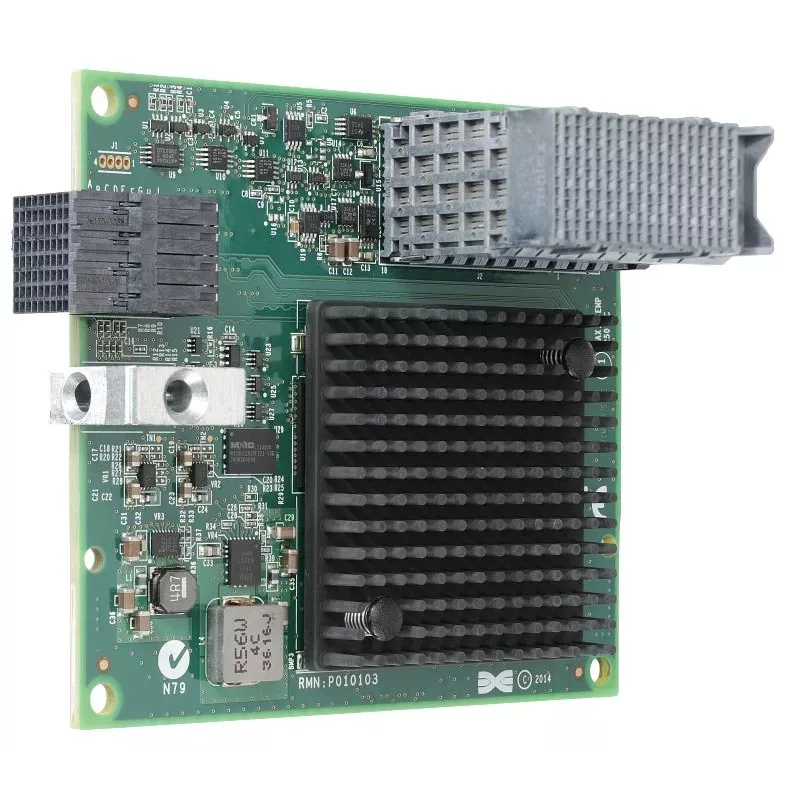

Lenovo 00AG540 network card Internal Ethernet 10000 Mbit/s

The Lenovo 00AG540 internal network card provides high-speed wired connectivity for systems with a free PCI Express slot. Designed for environments that demand reliable, low-latency Ethernet, this adapter supports data transfer rates up to 10000 Mbit/s and integrates into server or workstation configurations to improve network throughput and stability. Its compact internal module form factor is suitable for standard expansion inside compatible chassis.

Advantages

The internal design offers a direct PCI Express connection to the host system, minimising latency and maximising sustained transfer rates. Support for 10 Gbit/s Ethernet ensures compatibility with modern high-bandwidth applications and storage networks. The adapter's lightweight construction and standard interface make installation straightforward in systems that support internal I/O expansion.

Key specifications

• Interface: PCI Express (internal)
• Maximum data rate: 10000 Mbit/s (10 Gbit/s)
• Form factor: internal expansion card
• Intended connection: wired Ethernet
• Typical use: server and workstation network acceleration
• Weight: 0.013 kg

How to use

Power down the host system, open the chassis and insert the network card into an available PCI Express slot that matches the card’s connector. Secure the card according to the chassis design, reconnect any necessary internal grounding or retention hardware, close the case and power on the system. Install the appropriate drivers supplied by the system vendor or available from the manufacturer to enable full functionality and optimal performance. Configure network settings in the operating system or network management tools to match your infrastructure and performance requirements.

Recommendations

For stable 10 Gbit/s operation, use high-quality Cat6a/Cat7 cabling or compatible SFP+ optics and ensure compatible switch ports or transceivers. Verify driver and firmware versions for compatibility with your operating system and apply vendor updates where available. Consider network tuning and offload features provided by the adapter to optimise throughput in server environments.
