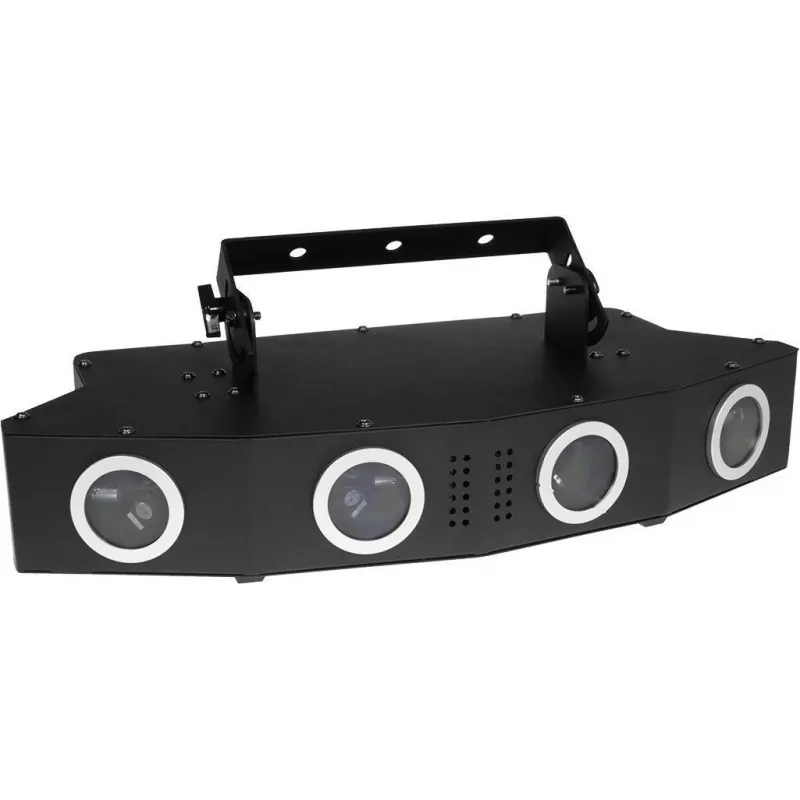

LASERWORLD EL-900RGB 900mW RGB Laser Projector with DMX, Sound-to-Light, and Auto Modes 51743207

The LASERWORLD EL-900RGB stands apart from typical entry-level laser projectors by combining a robust 900 mW total output (guaranteed 700 mW) with true analogue colour mixing across red, green, and blue sources. Unlike many budget units that rely on a single laser diode, this model uses a DPSS green module alongside diode red and blue, delivering richer colour saturation and more stable performance over time. The high-speed stepper motor scanner system runs at approximately 3 kpps at 4° ILDA, ensuring crisp, fluid animations for clubs, mobile DJs, and small venues.

Highlights

• Total laser power: 900 mW (guaranteed 700 mW) – Red 200 mW/650 nm, Green 70 mW/532 nm, Blue 630 mW/445 nm
• Laser class 3B with key switch and interlock connector for safe operation
• Three operating modes: Auto, Sound-to-Light, and DMX (10 channels)
• Over 50 built-in patterns including layers, tunnels, fences, and waves
• Aluminium housing for durability and efficient heat dissipation
• Wide voltage input: AC 100–240 V, 50/60 Hz, only 40 W power consumption

In daily use

Setting up the EL-900RGB is straightforward: connect the included power cable, insert the interlock key, and choose your mode. In Auto mode, the projector cycles through its extensive pattern library, making it ideal for unattended operation in bars or retail displays. Sound-to-Light mode uses the built-in microphone to sync effects with the beat, perfect for live music or DJ sets. For advanced control, DMX allows precise selection of patterns, colours, and movements from a lighting console. The compact aluminium body fits easily on trusses or shelves, and the beam diameter of approximately 3 mm with 2 mrad divergence ensures a tight, visible show even in moderate ambient light.

Full specifications

• Laser sources: Red diode 200 mW/650 nm, Green DPSS 70 mW/532 nm, Blue diode 630 mW/445 nm
• Scanner system: High-speed stepper motors, approx. 3 kpps @ 4° ILDA
• Beam diameter: approx. 3 mm; Beam divergence: approx. 2 mrad
• DMX channels: 10
• Basic patterns: Over 50 (layers, tunnels, fences, waves, etc.)
• Power consumption: 40 W
• Power supply: AC 100–240 V ~ 50/60 Hz
• Housing material: Aluminium
• Safety features: Key switch, interlock connector
• Operating temperature: 10–40 °C
• Included accessories: Power cable, interlock key, manual

Final note

The LASERWORLD EL-900RGB is a reliable, feature-rich laser projector that balances power, safety, and ease of use. Whether you need a plug-and-play effect for a small venue or a DMX-controllable centrepiece for a mobile rig, this unit delivers professional results without the complexity of high-end ILDA systems.
