Laptop & monitor arm ACT AC8341 gas spring black 49 inch

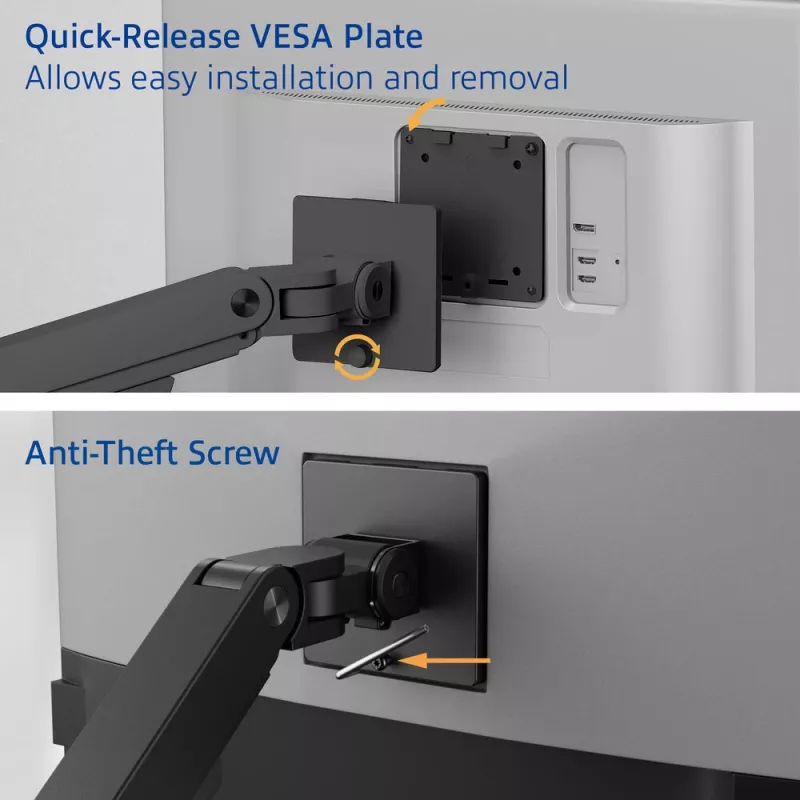

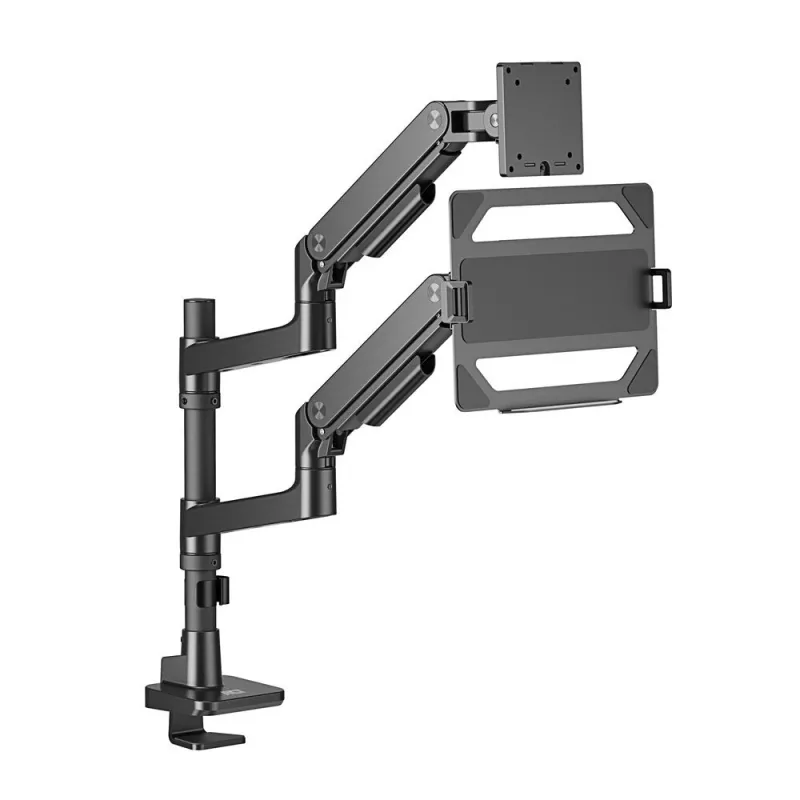

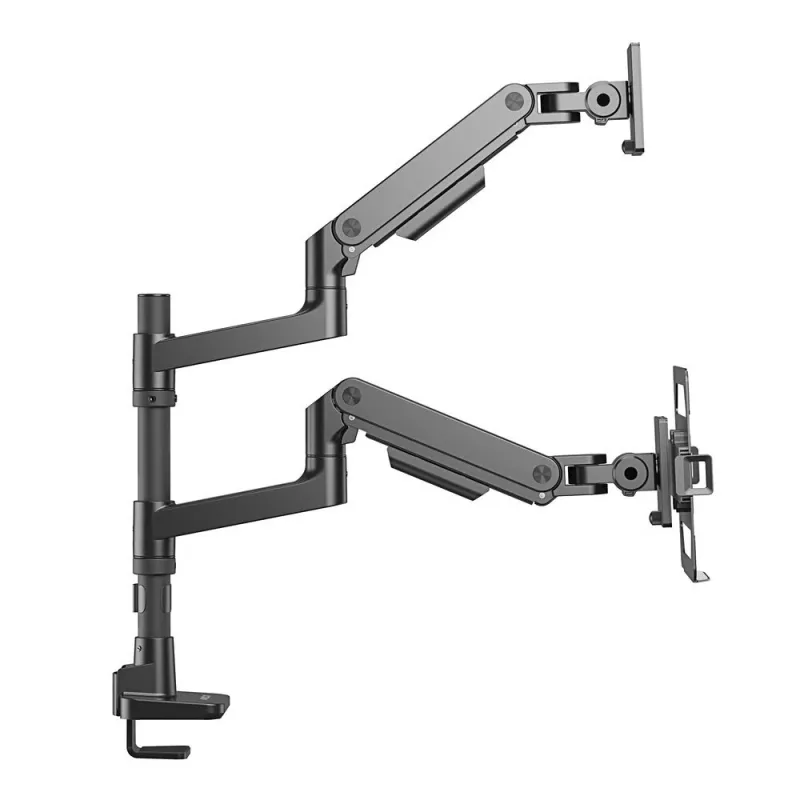

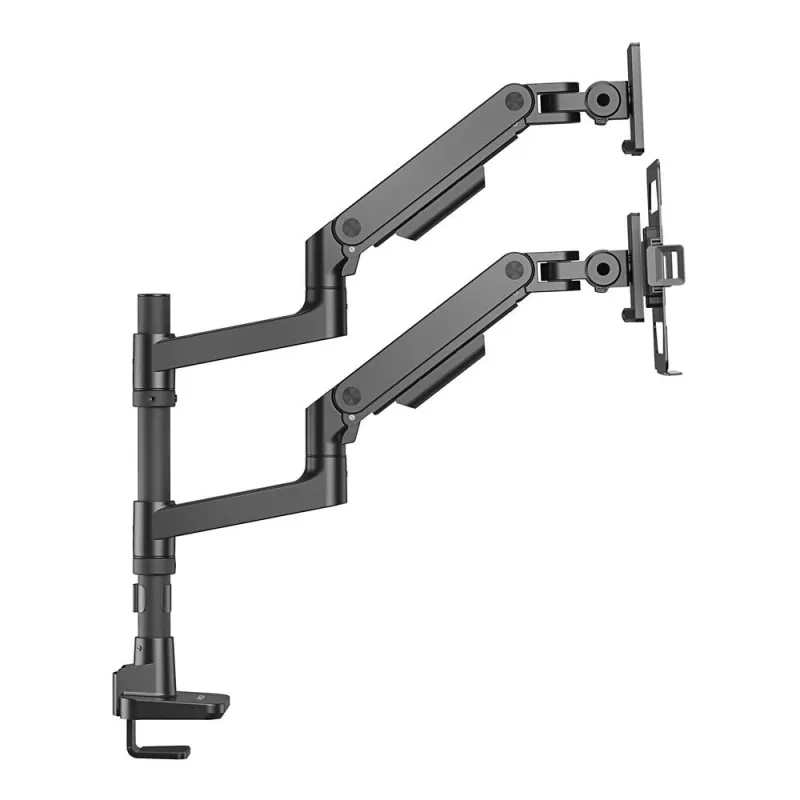

The ACT AC8341 Laptop & Monitor Arm is a full-metal single-arm solution that supports one monitor up to 49" (max 20 kg) with VESA 75x75 and 100x100, including curved screens, and a separate laptop mount for laptops up to 17.3". The arm uses a gas spring and offers a maximum monitor centre height of 709 mm (measured from the desktop to the VESA plate centre). The mount includes both top-side clamp and grommet fittings and a detachable VESA plate for straightforward installation.

Advantages

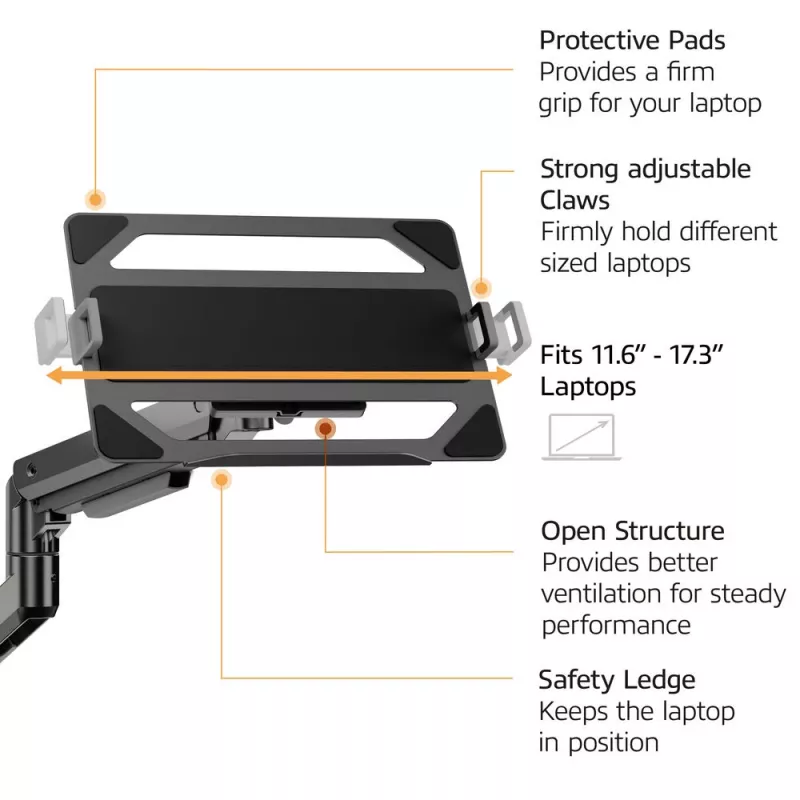

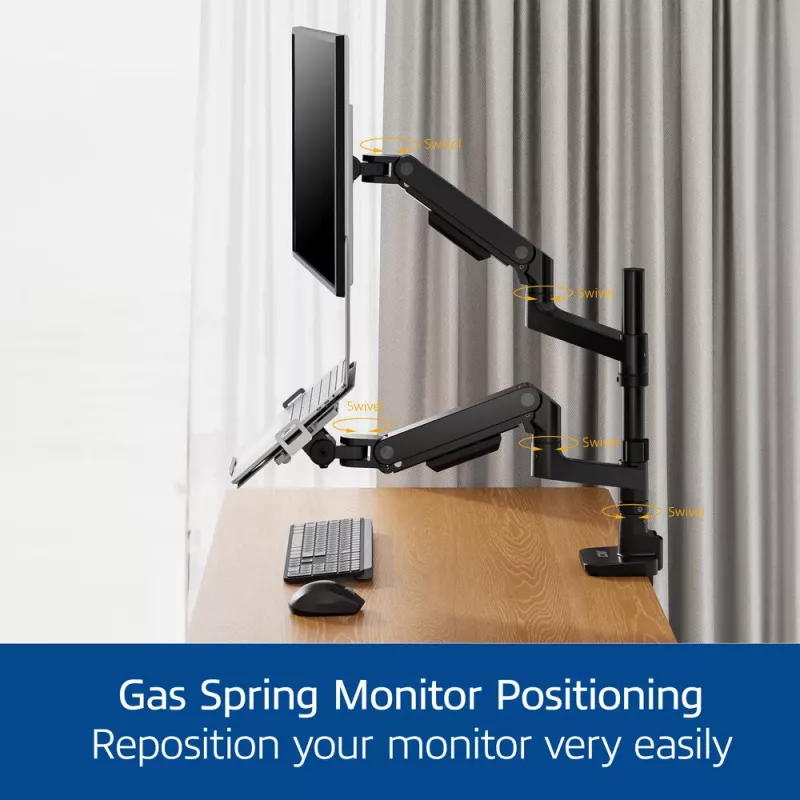

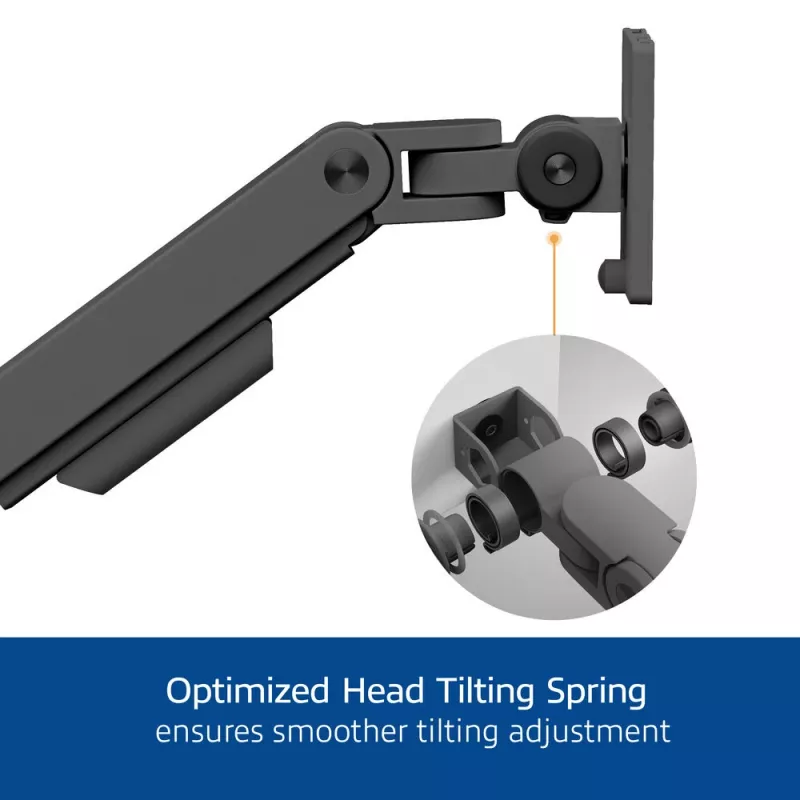

The AC8341 combines solid metal construction with a gas-spring mechanism for smooth, tool-free height and depth adjustment. It supports a wide monitor size range (including curved displays) and a dedicated ventilated laptop cradle to maintain airflow. The arm provides tilt, swivel and rotation capabilities, integrated cable management and an anti-theft screw. Both clamp and grommet mounting hardware are included for desks up to 45 mm thick.

Suitable for

• Home offices and corporate desks requiring ergonomic positioning
• Workstations with a single large monitor (up to 49") plus a laptop
• Flexible or hot-desking environments needing quick, tool-free adjustments

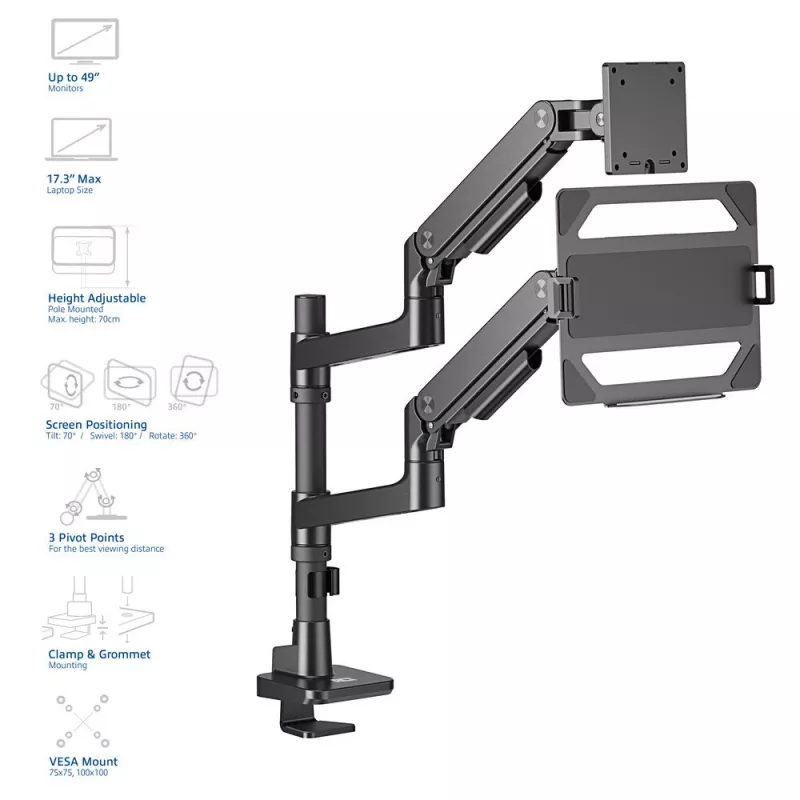

Key specifications

• Supported monitor size: up to 49"
• Maximum monitor weight: 20 kg
• Supported laptop size: up to 17.3"
• VESA compatibility: 75x75 and 100x100

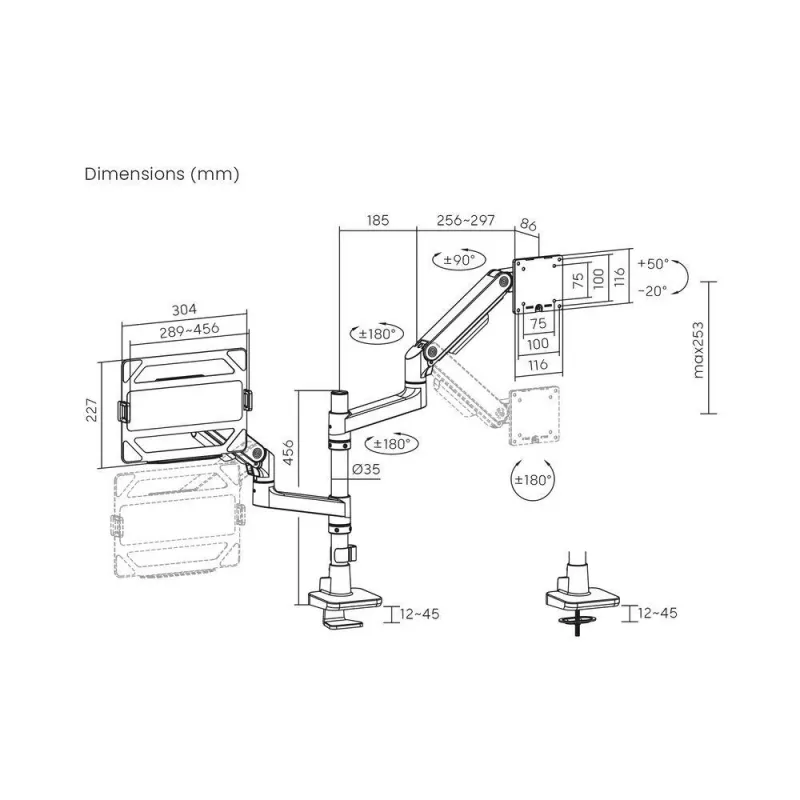

• Height adjustment range (centre of VESA plate): 221–709 mm
• Depth adjustment range: 86–568 mm
• Swivel angle: 180°
• Materials: aluminum, steel, plastic
• Maximum desk thickness: 45 mm
• Mounting options: top-side clamp and grommet (both included)

How to use

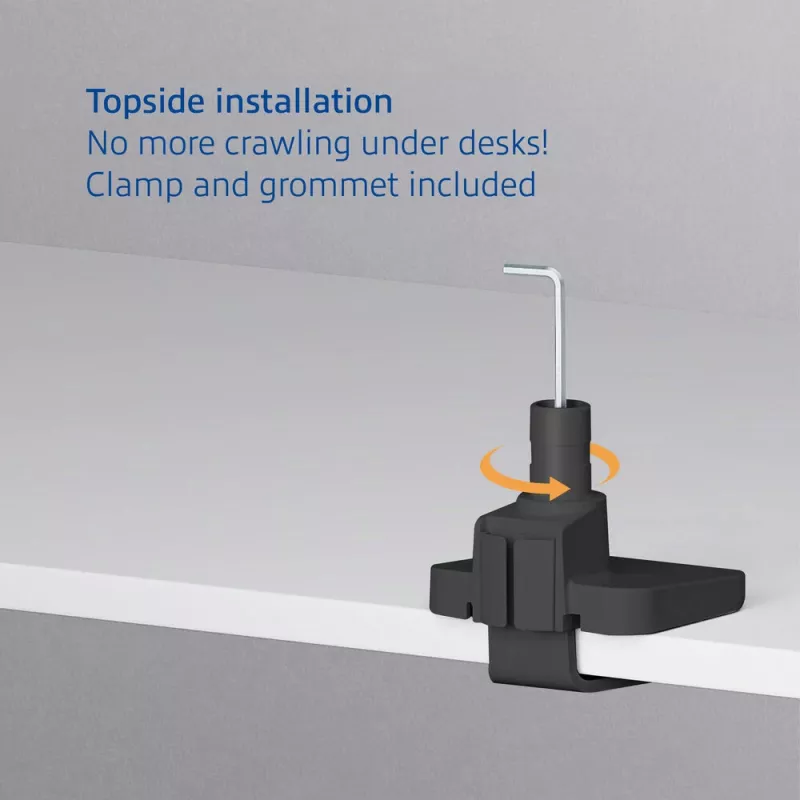

Attach the mount to your desk using either the top-side clamp or the grommet fittings included in the package. Secure the detachable VESA plate to your monitor, then connect the plate to the arm. Place the laptop on the ventilated laptop cradle and adjust the height and depth using the gas spring mechanism for a comfortable viewing position. Use the arm's pivot points to tilt, swivel and rotate the screen as needed, and route cables through the integrated cable management channels.

Recommendations

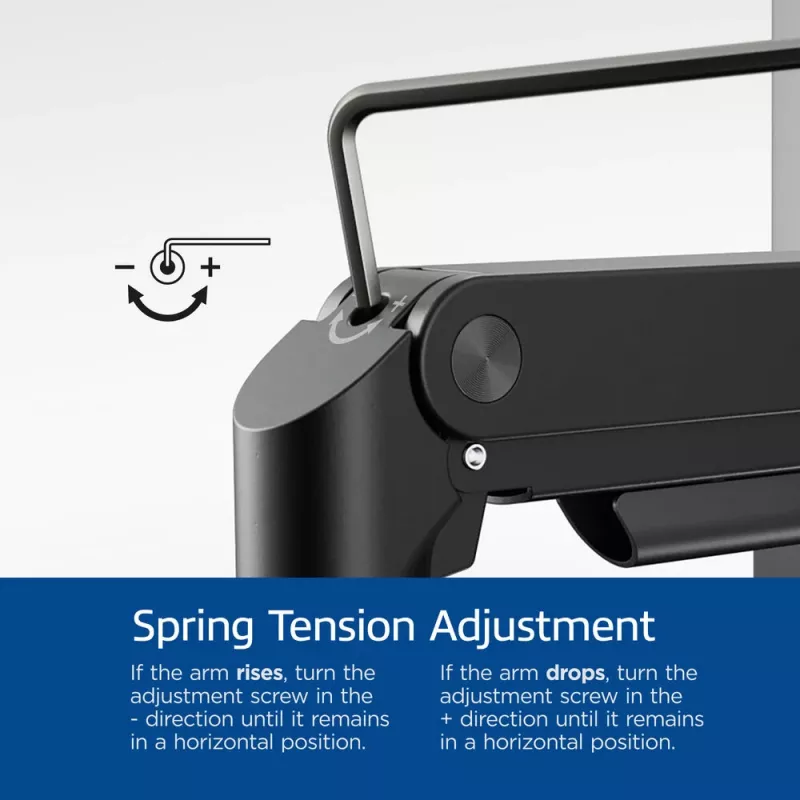

Adjust the gas-spring tension to match the weight of your monitor, keep desk thickness within 45 mm, and ensure the VESA plate is fastened with the provided screws. For optimal ergonomics, set the top of the screen at or slightly below eye level and position the monitor at an arm's length distance.
