LANVIEW LPP110 1U 24-Port Cat5e RJ-45 Unshielded Patch Panel (Krone IDC)

Fourteen ports per rack unit is impressive, but the LANVIEW LPP110 doubles that with 24 Cat5e ports in a single 1U chassis. That density, combined with tool-free Krone IDC termination, makes it a practical foundation for high-occupancy racks and structured cabling environments.

Overview

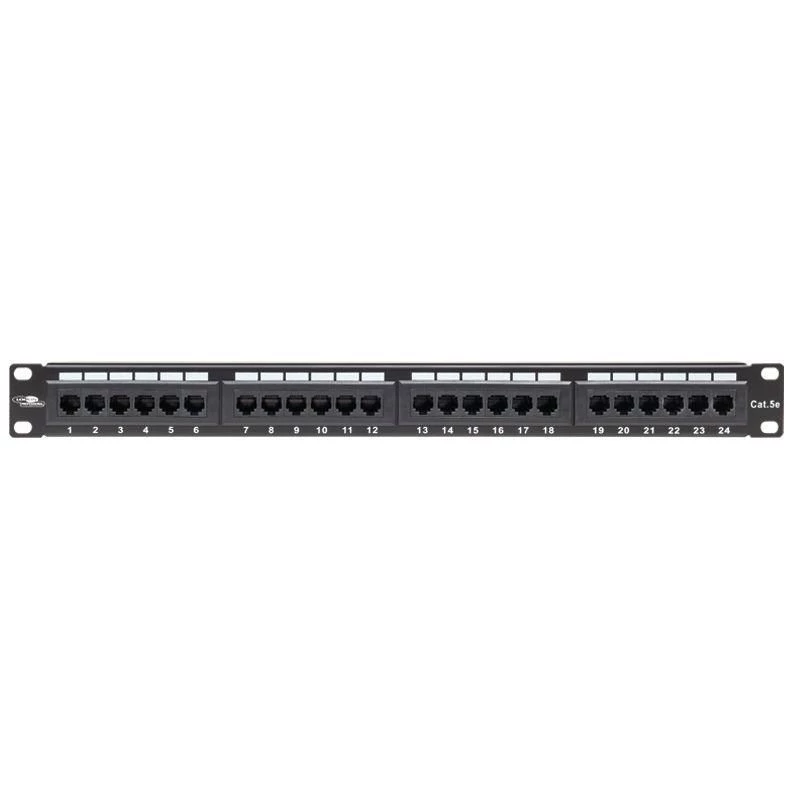

The LPP110 is a 19-inch, 1U high patch panel designed for Cat5e networks. It provides 24 RJ-45 ports on the front, each wired to an IDC termination block on the rear that is Krone LSA+ compatible. The panel is unshielded (UTP), suitable for standard Ethernet applications up to Gigabit speeds. Its cold-rolled steel housing ensures mechanical stability in demanding installation settings.

What stands out

• 24 Cat5e ports in 1U – maximize rack space without sacrificing port count.
• Krone LSA+ compatible IDC terminations – fast, dependable punch-downs without special tools.
• 50µm gold-plated contacts – enhanced corrosion resistance and reliable connectivity over repeated insertions.
• Colour-coded TIA/EIA 568A/B wiring scheme – reduces wiring errors and speeds up installation.
• RoHS and CE certified – meets European environmental and safety standards.

Technical details

• Rack height: 1U (19-inch rackmount)
• Number of ports: 24
• Cable standard: Cat5e
• Connector type (front): RJ-45
• Termination type (rear): IDC, Krone LSA+ compatible
• Shielding type: Unshielded (UTP)
• Wiring scheme: TIA/EIA 568A/B
• Housing material: Cold-rolled steel
• Contact plating: 50µm gold over nickel
• Operating temperature: -10°C to 60°C
• Operating relative humidity: 10% to 90% (non-condensing)
• Standards compliance: RoHS, CE

Our verdict

For network installers and IT managers seeking a reliable, high-density Cat5e patch panel, the LANVIEW LPP110 offers exceptional value. Its Krone-compatible IDC blocks and robust construction make it a smart, future-ready choice for structured cabling.
