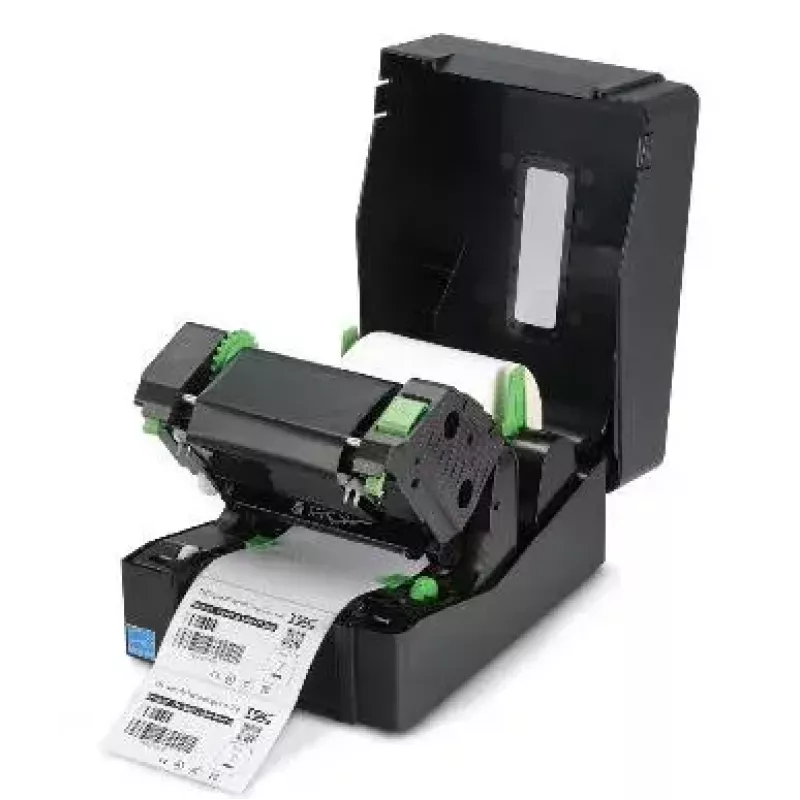

Label printer TSC TE210

The TSC TE210 is a 4" desktop-class label printer offering direct thermal and thermal transfer printing with a maximum resolution of 300 x 300 dpi and a print speed up to 127 mm/s (6 ips). Designed for entry-level and small business environments, the TE210 supports media widths from 20 to 112 mm and accepts standard label rolls up to 5" OD on 1" or 1.5" cores. The unit is compact, finished in black, and includes wired Ethernet LAN connectivity.

Advantages

The TE210 combines a robust 400 MHz processor and extended memory with a durable ABS outer shell and a modular thermal transfer print mechanism. It provides flexible ribbon compatibility (1/2" core 72–110 m or 1" core 300 m), easy-to-change printhead and platen roller without tools, and both gap and black mark sensing for accurate label registration. The printer supports multiple language emulations and a scalable font engine, and comes with a two-year warranty.

Suitable for

• Shipping and logistics labels
• Product identification and compliance labeling
• Retail and point-of-sale labeling
• Inventory control and warehouse tagging
• Small-scale kiosk or custom printing integrations

Key specifications

• Print technology: Direct thermal and thermal transfer
• Maximum resolution: 300 x 300 dpi
• Maximum print speed: 127 mm/s (6 ips)
• Maximum printing width: 112 mm
• Memory: model family offers configurations up to 64 MB SDRAM and 128 MB Flash (TE210 corresponds to higher-memory variants)
• Interfaces: Ethernet LAN (wired)
• Media handling: accepts 5" OD labels on 1" or 1.5" cores; optional external unwinder for larger rolls
• Weight: 2.5 kg
• Color: Black

How to use

Install the TE210 on a stable surface and connect the power and Ethernet cable. Load media by opening the top cover, placing the label roll on the spindle (1" or 1.5" core) and threading the label and ribbon (for thermal transfer) through the print path. Adjust gap or black mark sensor positions for the media type in use. Use the printer's emulation settings and font engine to match existing label formats, then send print jobs from your workstation or POS system over the wired LAN. Replace the printhead or platen roller as needed; both parts are user-replaceable without tools.

Recommendations

For reliable, long-term operation use recommended thermal transfer ribbons and label stock, keep the media path clean, and store labels and ribbons in a dry, moderate-temperature environment. Select 300 dpi when printing small fonts, dense barcodes, or fine graphics; use the 127 mm/s speed setting for standard throughput balanced with print quality.
