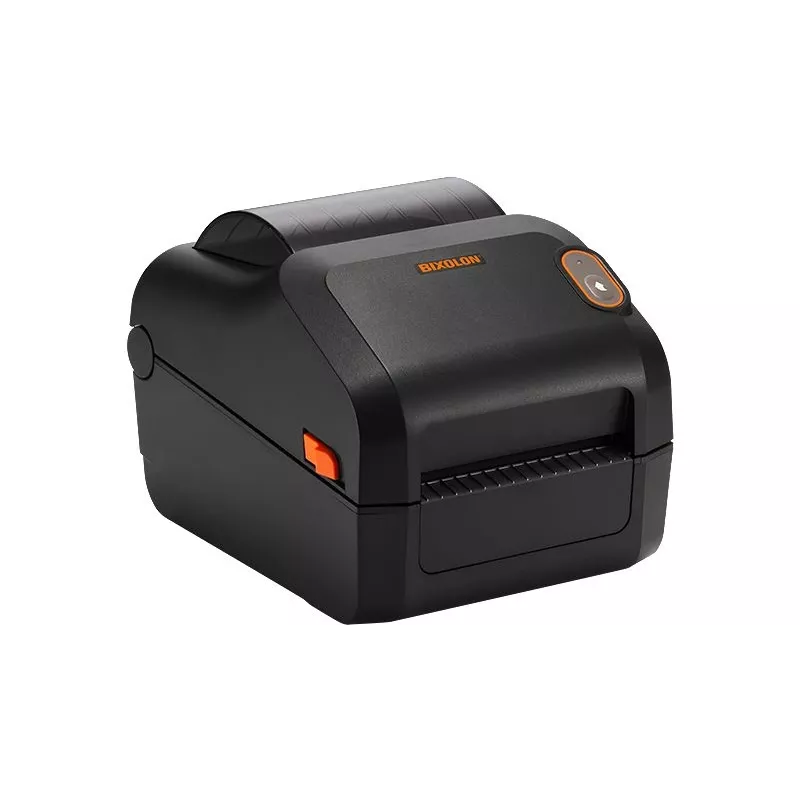

Label printer Bixolon XD3-40d

The Bixolon XD3-40d is a 4-inch (118 mm) direct thermal desktop label and barcode printer designed for manufacturing, retail, warehousing and logistics environments. The compact XD3-40d delivers print speeds up to 5 ips (127 mm/sec) at 203 dpi, a maximum printing width of 104 mm and supports media rolls up to 127 mm diameter. It includes easy paper loading with an adjustable paper guide, optional peeler, external paper supply compatibility and simple toolless maintenance for the roller and print head.

Advantages

The printer offers reliable direct thermal printing with clear text, graphics and barcodes at a steady 127 mm/sec. It provides flexible connectivity options (USB standard, optional USB v2.0 + Serial + Ethernet), support for multiple programming languages including SLCS, BPL-Z™ and BPL-E™, and Smart Switch language switching for integration into both legacy and current systems. Lightweight and compact, the XD3-40d is accompanied by SDKs for Windows and Linux and is compatible with label design software such as BIXOLON Label Artist-II™ and BarTender®. A two-year standard warranty is included.

Suitable for

• Product and shipment labelling in manufacturing
• Price and shelf labels in retail
• Inventory tagging in warehouses
• Logistics and parcel labelling

Key specifications

• Print technology: Direct thermal
• Maximum printing width: 104 mm
• Print speed: 127 mm/sec (5 ips)
• Resolution: 203 dpi
• Media roll diameter: up to 127 mm
• Interfaces: USB (standard); optional USB v2.0 + Serial + Ethernet
• Weight: 1.7 kg
• Colour: Black
• Supported languages: SLCS, BPL-Z™, BPL-E™, Smart Switch

How to use

Load a compatible direct thermal label roll (maximum 127 mm diameter) into the printer, adjust the paper guide for the media width and close the cover. Connect the printer via USB or an optional interface and install the appropriate driver or SDK for your operating system. Use label design software (for example BIXOLON Label Artist-II™ or BarTender®) or send commands using supported programming languages to format and print labels. For routine maintenance, perform toolless cleaning or replacement of the roller and print head following the user manual.

Recommendations

Use direct thermal media designed for the required label lifetime and environmental conditions. For networked setups, choose the USB v2.0 + Serial + Ethernet option and verify driver/SDK compatibility with your system. Perform regular toolless maintenance to maintain print quality and extend the life of the print head.
