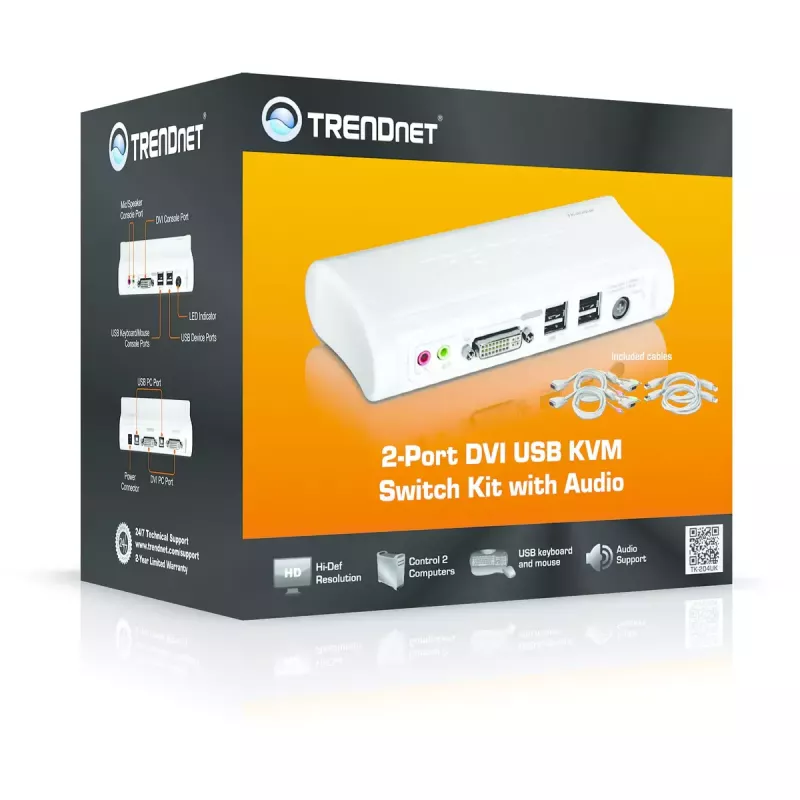

KVM switch Trendnet TK-204UK

The Trendnet TK-204UK 2-Port DVI USB KVM Switch with Audio Kit lets you control two computers from a single console consisting of a USB keyboard, USB mouse, DVI monitor, microphone and speakers. It supports high-definition DVI video and includes all required USB, DVI and audio cables. The compact wired unit supports resolutions up to 1920 x 1200 and is CE, FCC and ROHS certified.

Advantages

The TK-204UK provides instant switching between two PCs or Macs using a push button, hot-key or auto-scan function. It preserves DVI video quality while allowing simultaneous audio routing so you can listen to audio from one computer while working on the other. The kit includes all necessary cabling and uses a DC power supply for stable operation.

Suitable for

• Workstations that require control of two computers with one keyboard/mouse/monitor
• Environments needing DVI video quality up to 1920 x 1200
• Setups where separate audio input/output for each computer is required
• Small offices, home offices and multimedia workspaces

Key specifications

• Model: Trendnet TK-204UK
• Ports: 2 computers controlled
• Video interface: DVI, max resolution 1920 x 1200
• Keyboard / Mouse: USB
• Audio: microphone and speaker support
• Connectivity: wired
• Certifications: CE, FCC, ROHS
• Dimensions: 65.5 x 154 x 27 mm; Weight: 0.52 kg
• Power: DC power supply

How to use

Connect the included DVI, USB and audio cables from each computer to the corresponding ports on the TK-204UK. Attach your USB keyboard and mouse, DVI monitor, microphone and speakers to the console ports. Power the unit via the supplied DC adapter. Switch between connected computers using the front-panel push button, a configurable hot-key sequence on the keyboard, or the auto-scan feature.

Recommendations

For best video performance, use high-quality DVI cables and set the connected monitor to a supported resolution up to 1920 x 1200. Ensure device drivers for USB peripherals are installed on each computer if required.
