KVM Switch Manhattan 2-Port 4K HDMI USB Audio Control 2 Computers

The Manhattan 2-Port Dual-Monitor HDMI KVM Switch provides centralized access and control of two HDMI/USB-equipped computers using a single keyboard and mouse and up to two monitors. The compact unit includes combo cables for direct connection to host systems and supports digital and analog audio connections. It is USB-powered and compatible with a wide range of operating systems.

Advantages

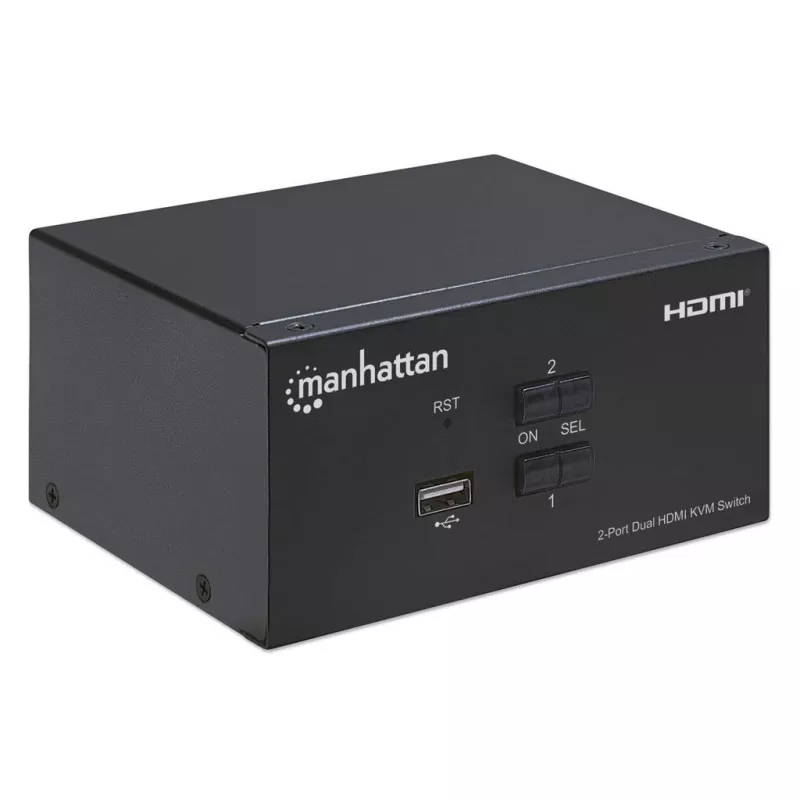

This KVM switch reduces desk clutter and hardware expense by enabling control of two computers with one keyboard and mouse and by sharing up to two HDMI displays. It supports up to 3840 x 2160 (4K) at 30 Hz for high-resolution video, offers full audio support including digital audio and separate 3.5 mm mic/speaker jacks, and includes an integrated USB 2.0 hub port for peripherals. Front-panel push-buttons and keyboard hotkeys make switching between systems quick and simple.

Suitable for

• Video and multimedia editing workstations
• Digital signage and server control stations
• Medical imaging and design environments
• Dual-system office or home workstations
• Sharing multimedia PCs or notebooks with a single HDMI TV

Key specifications

• Brand: MANHATTAN
• Model / MPN: 153522
• EAN: 0766623153522
• Video port type: HDMI
• Supported resolution: up to 3840 x 2160 (4K) @ 30 Hz
• Keyboard / Mouse ports: USB
• USB hub: integrated USB 2.0 with front USB-A port
• Audio: digital audio plus separate 3.5 mm mic and speaker jacks
• Number of computers controlled: 2
• Product colour: Black
• Weight: 0.6 kg

How to use

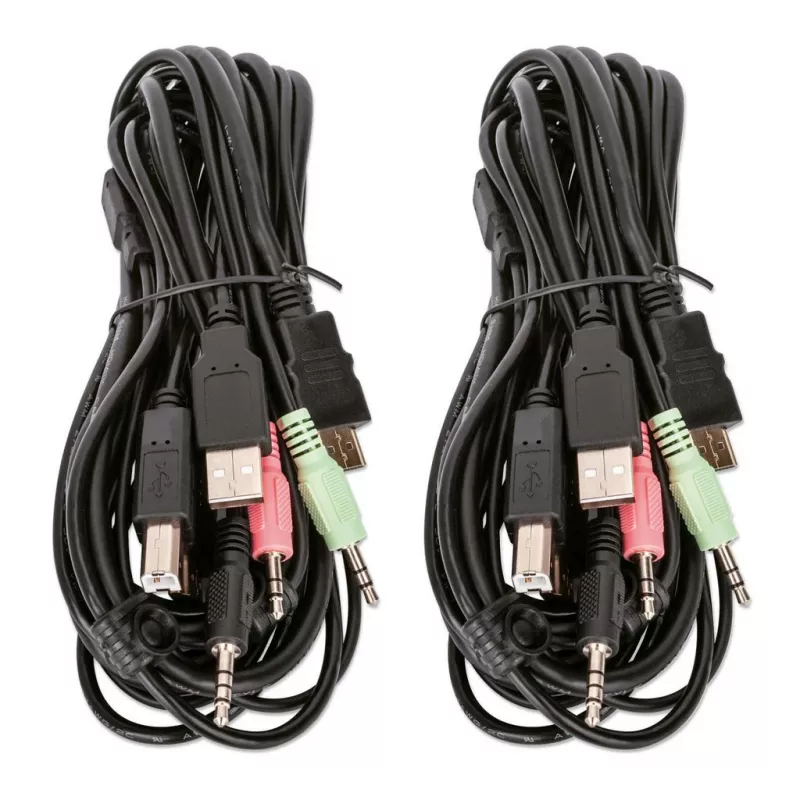

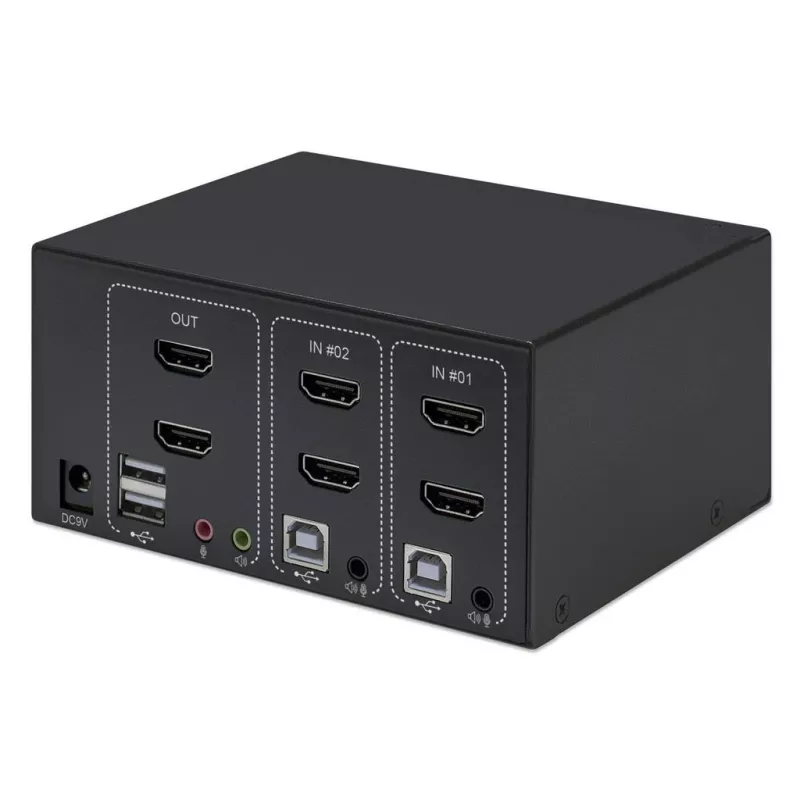

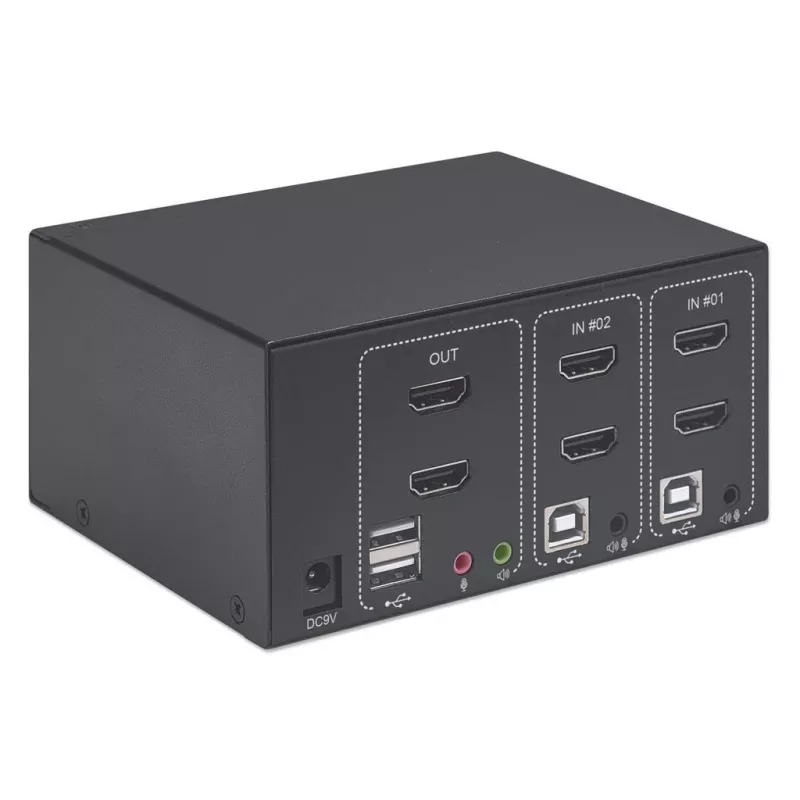

Connect the included combo cables from each computer’s HDMI and USB ports to the KVM switch, and attach monitors to the HDMI output(s). Plug in the keyboard and mouse to the USB console ports and connect audio devices to the 3.5 mm jacks or rely on digital audio over HDMI. Power the unit via USB if required. Use the front-panel buttons or keyboard hotkeys to switch control between the two connected computers; the integrated USB hub port is available for sharing peripherals without repeatedly plugging and unplugging devices.

Recommendations

For best video performance at 4K@30Hz, use high-quality HDMI cables and ensure connected computers and displays support the specified resolution and refresh rate. When using peripherals that draw significant power, connect them to a powered USB hub or directly to the host computer to avoid power limitations of the integrated USB port.
